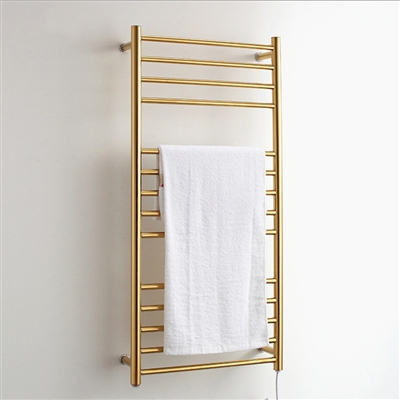

How to Install BathSelect Stainless Steel 14 Bar Wall Mount Towel Warmer In Gold Finish | BS9899
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.Unpack and inspect the products for any shipping damages. If you find damages, do not install.Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided. | |
Automatic Soap Dispenser Installation Instructions
Size |
Towel warmer |
|
|
|
|
|
|
|
Step 1 |
|
Step 2 |
|
|
|
Step 3 | Towel warmer | Step 4 | | | | Select the approriate installation location, determine the installation direction of the towel rack according to the installationcard, attach the installation card to the wall surface, select the installation hole position according to the model of the product you need to install, and drill 4 holes respectively with the impact drill (hole depth can be depending on the length of the wall plug or the length of the screw, it can be customized)
1. Insert the wall plug into the hole in the direction indicated by the arrow in the figure, flush with the wall

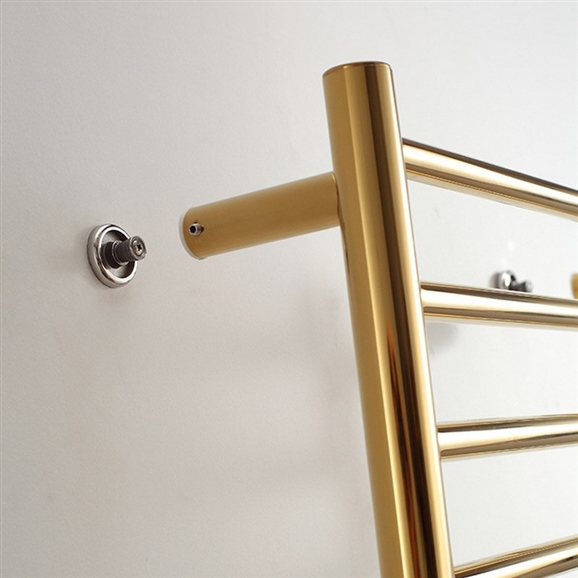

2. Pass the screw through the center hole of the horseshoe and fix it on the wall plug.
3. Install the four support feet of the towel rack on the horseshoe, and tighten the screws on the four feet of the rack with the hex wrench to make it completely fastened to the wall.
4. Installation is complete Name: Electric Heated Towel rackMaterial: 304 stainless steel Voltage: AC220-240V Color: gold Frequency: 50Hz Power: 162 W Temperature: 40-50 degrees Heating time: 5 min Waterproof rating : IP56 Product size: 43.3 x 20.5 x 4.7 inches
|
