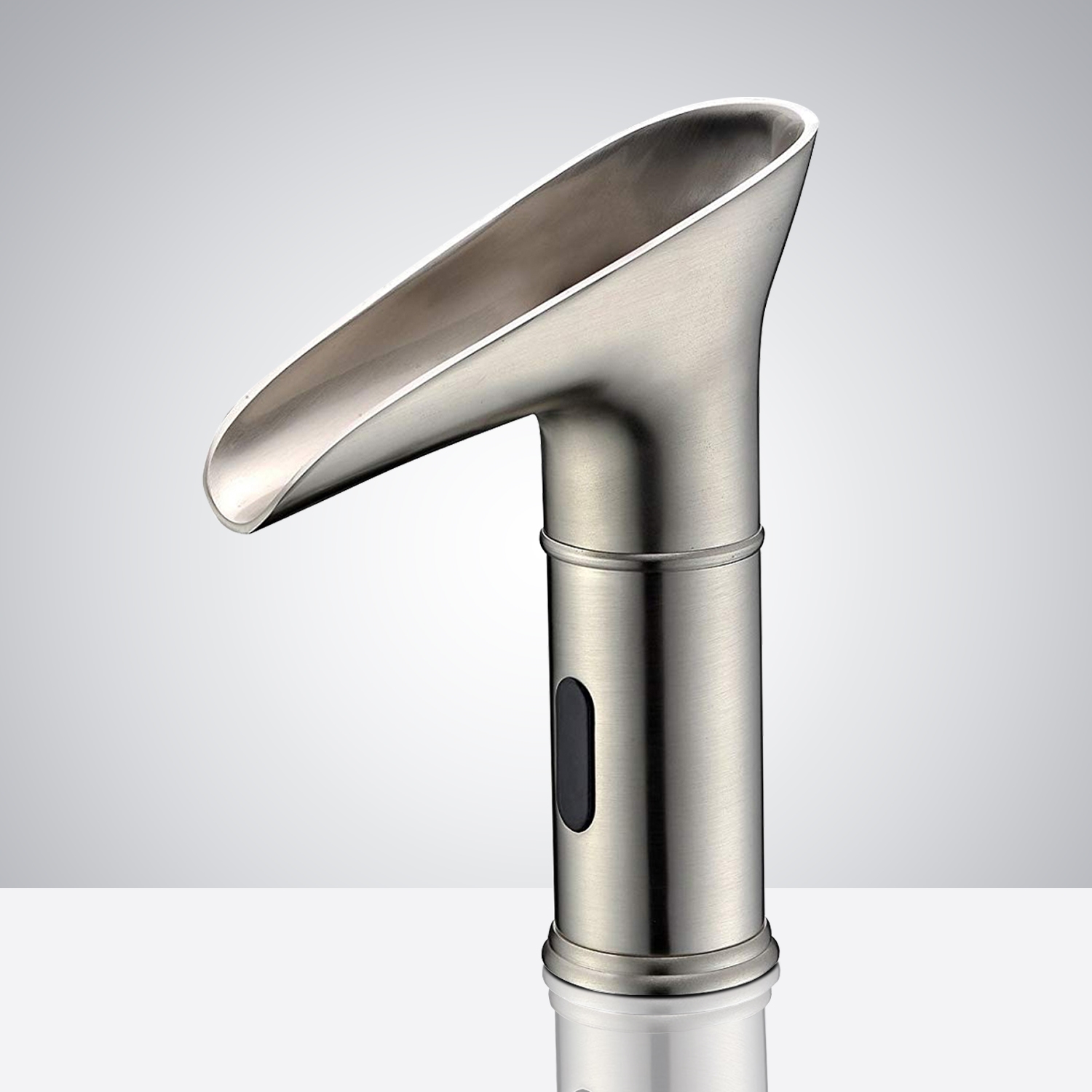

Installation Instructions for BathSelect Ariana Deck Mount LED Bathroom Commercial Automatic Motion Sensor Faucet | BS9372

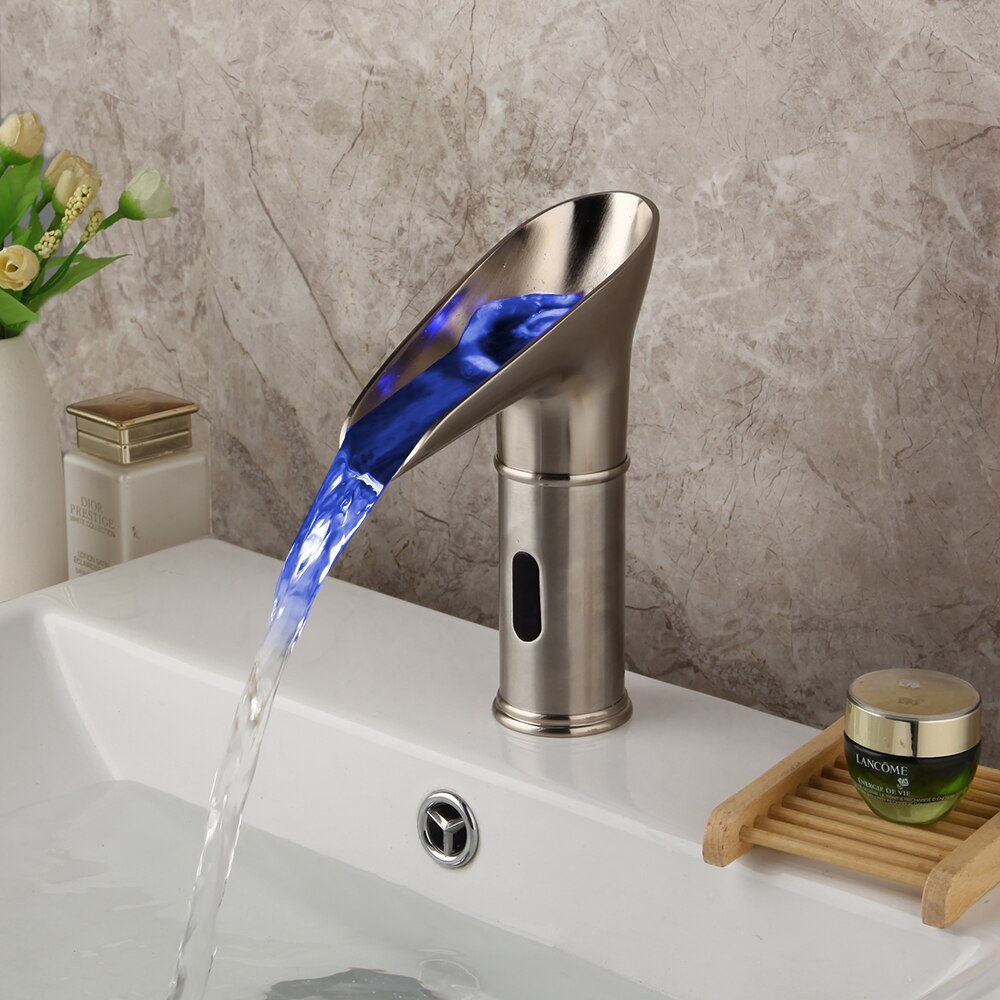

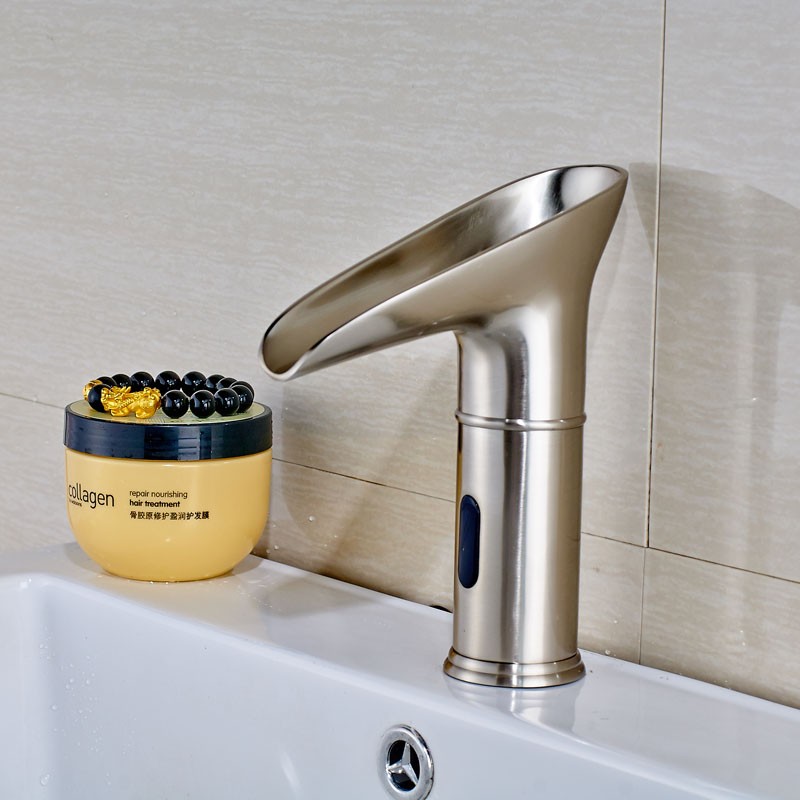

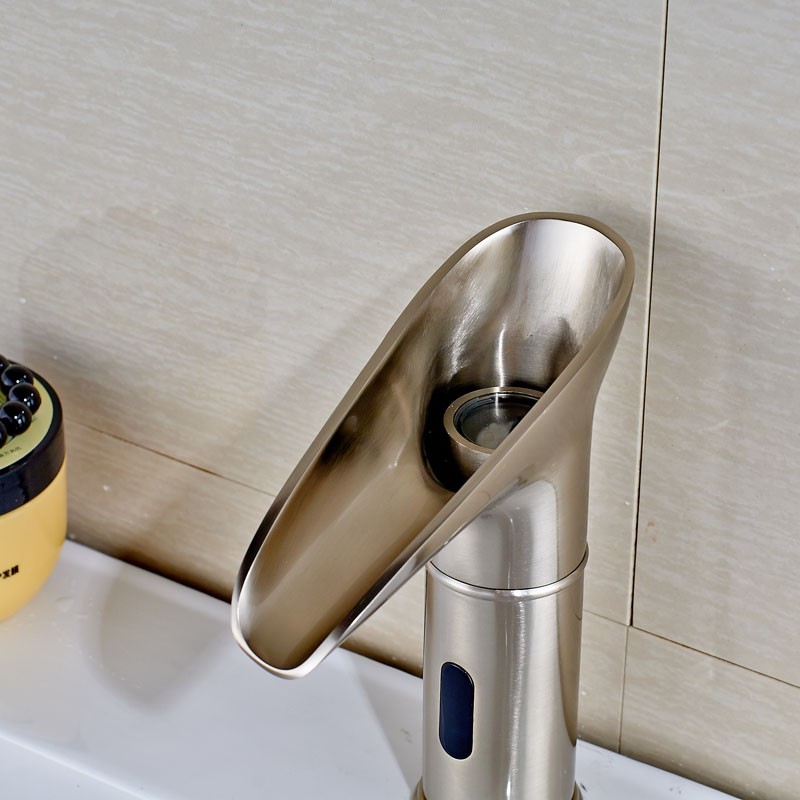

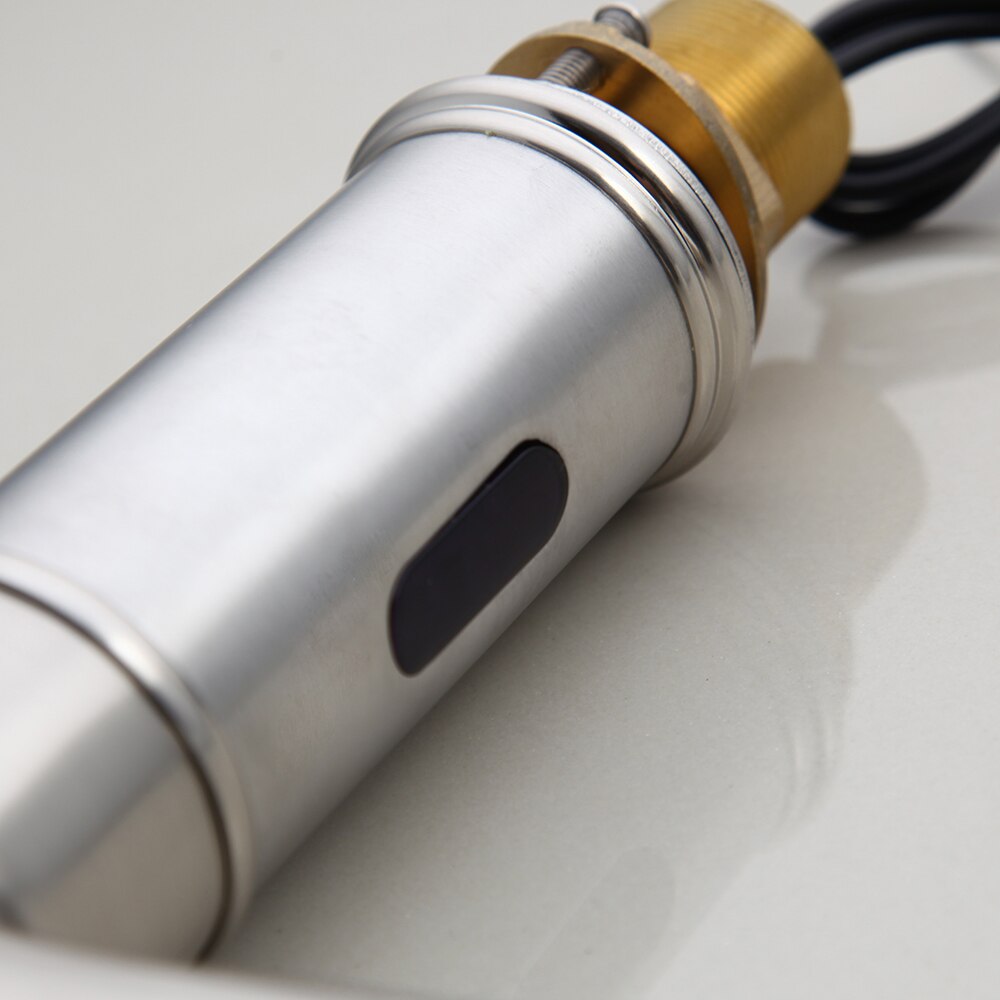

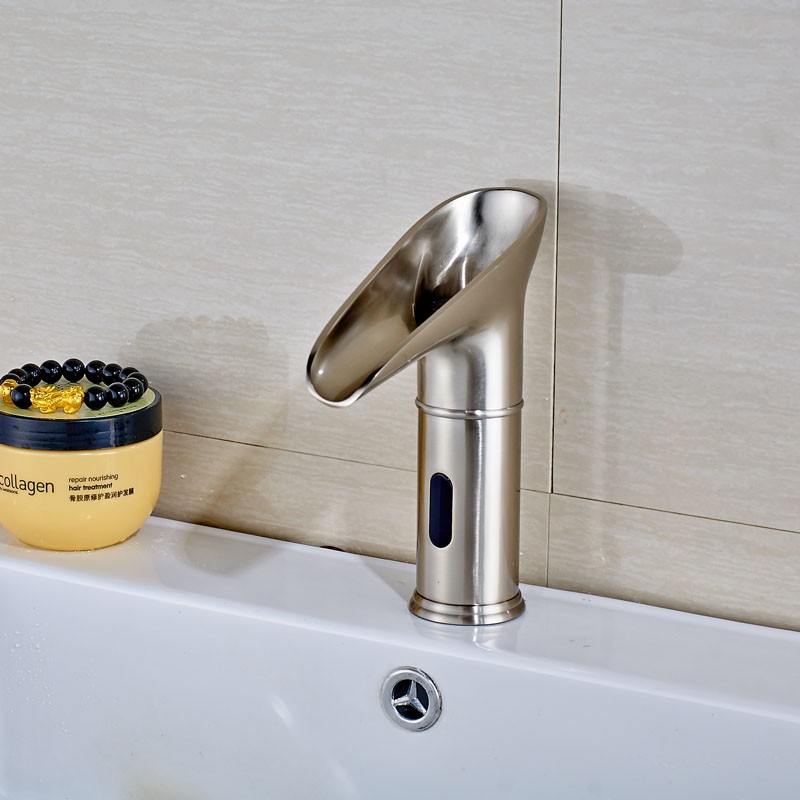

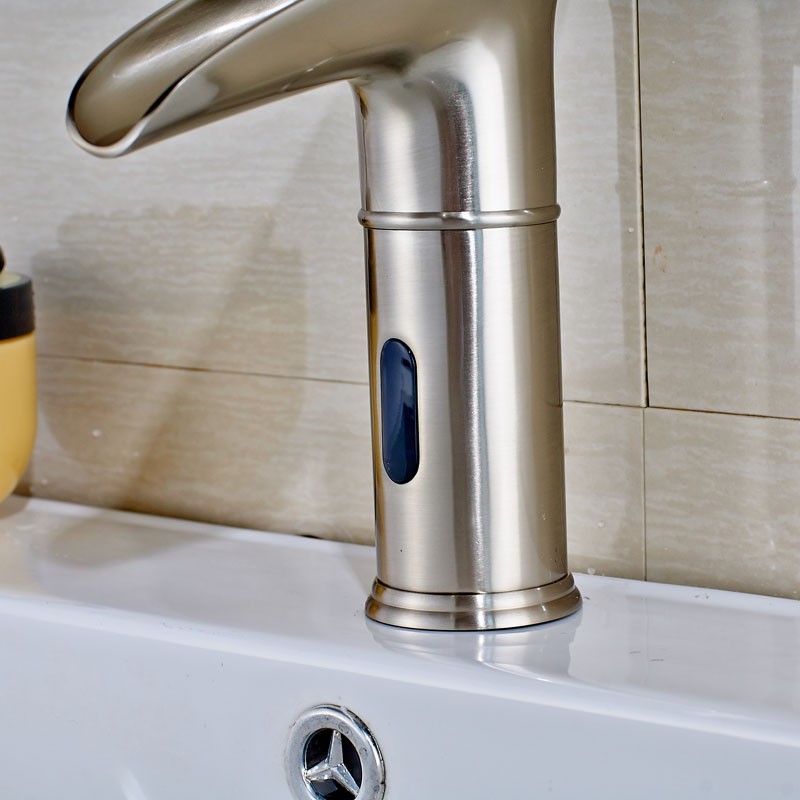

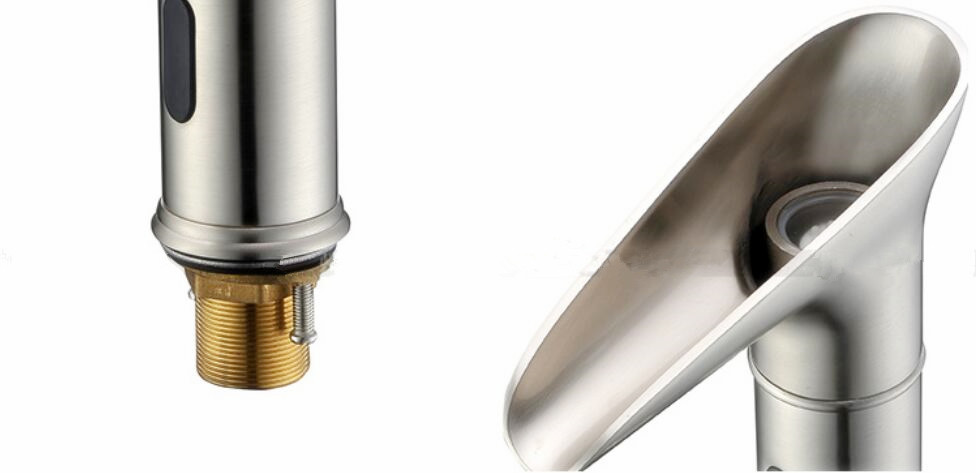

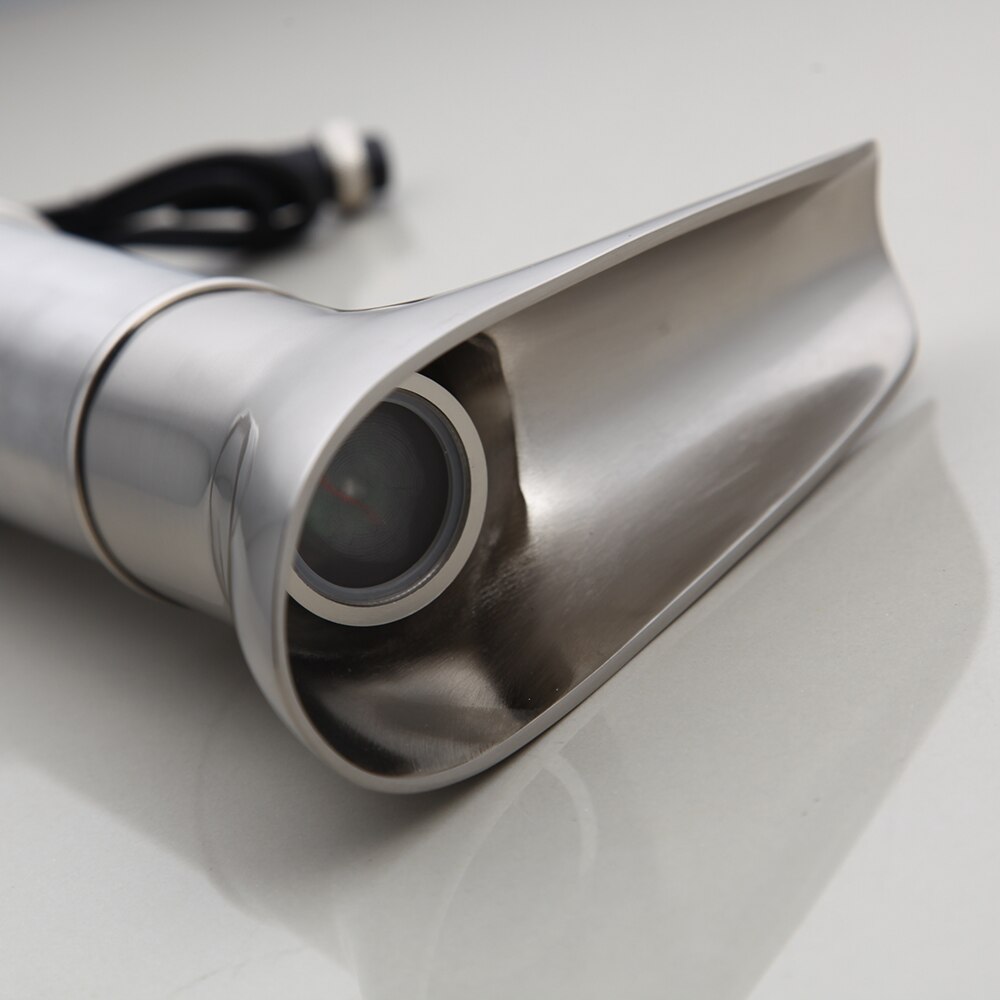

BathSelect Ariana Deck Mount LED Bathroom Motion Sensor Faucet. Inside led light will change color when water temperature will change. There is a micro motor inside the faucet and it can supply power to led light forever when water flowing. We gained a high reputation with the good quality and best service from the customers. The perfect solution for the bathroom. Certified by quality standards, no hard to human, water, or environment. Easy to use and leak-free. Extended durability ensured by solid construction, Stylish appearance. Self-powered by water pressure-No battery or other electricity required. When water flows down, the LED will light instantly and automatically. This faucet can we used for commercial use. Great for home & commercial use.
Features:
Single-hole easy installation coming with hot/cold water hose and basic accessories.Is a touchless faucet.
Innovative LED light technology built into the faucet.
Durable solid brass construction.
Sensor Faucet works with batteries.
Unique luxurious design.
Built-in durable ceramic valves prevent leaks.

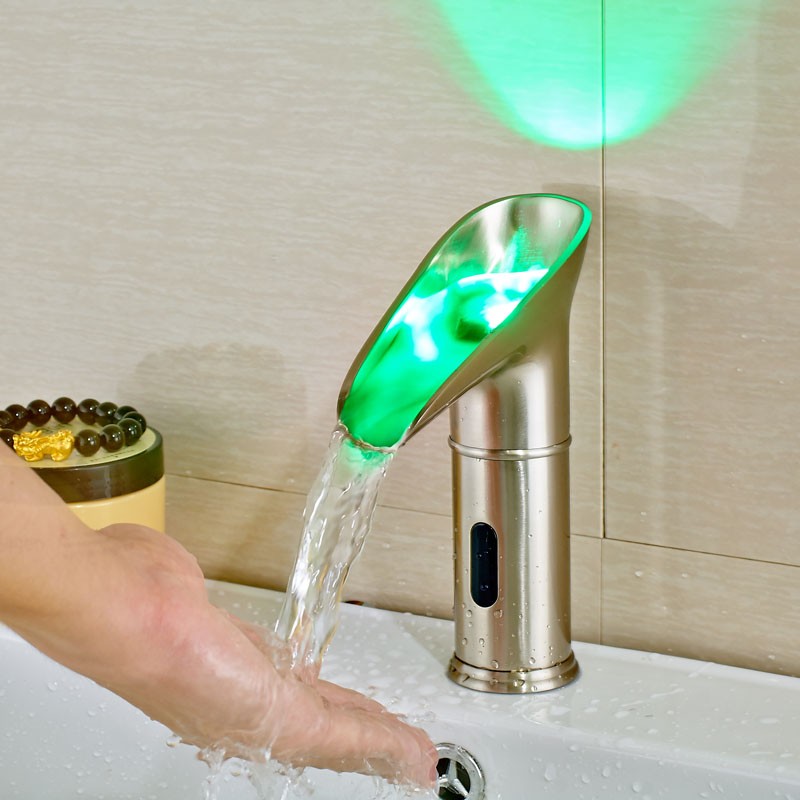

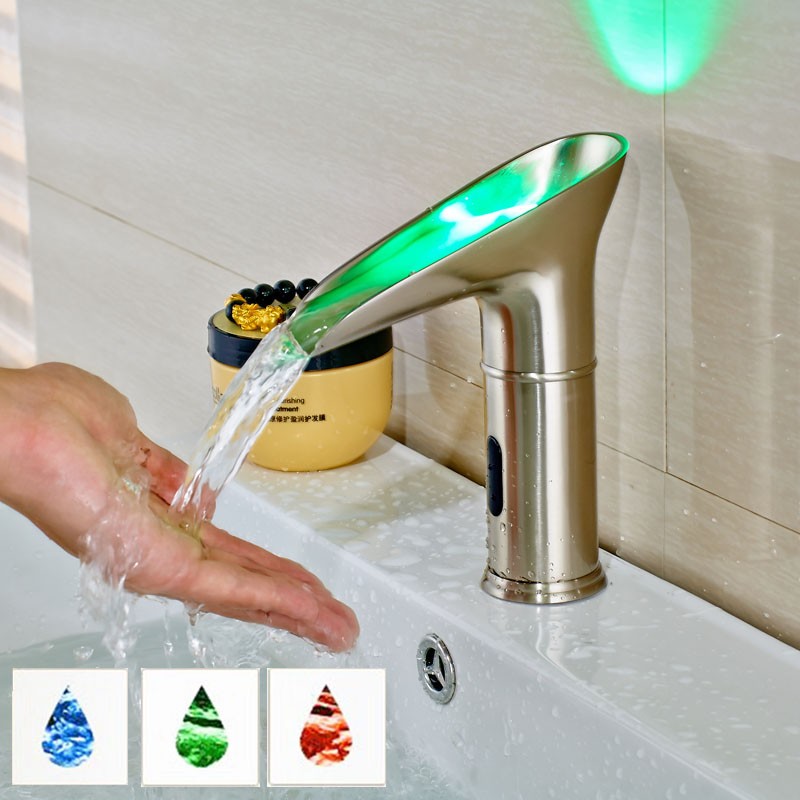

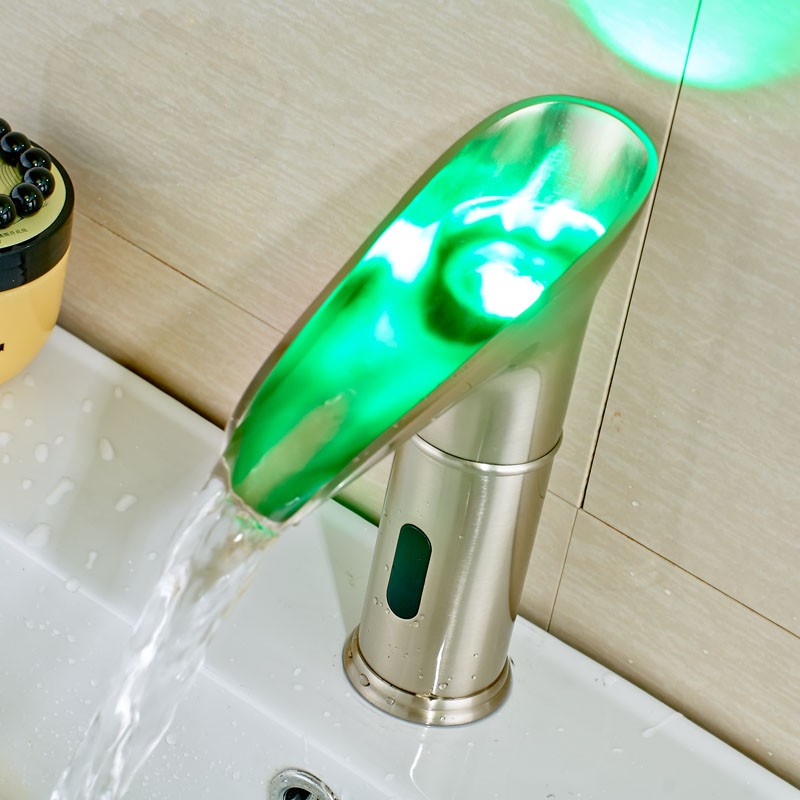

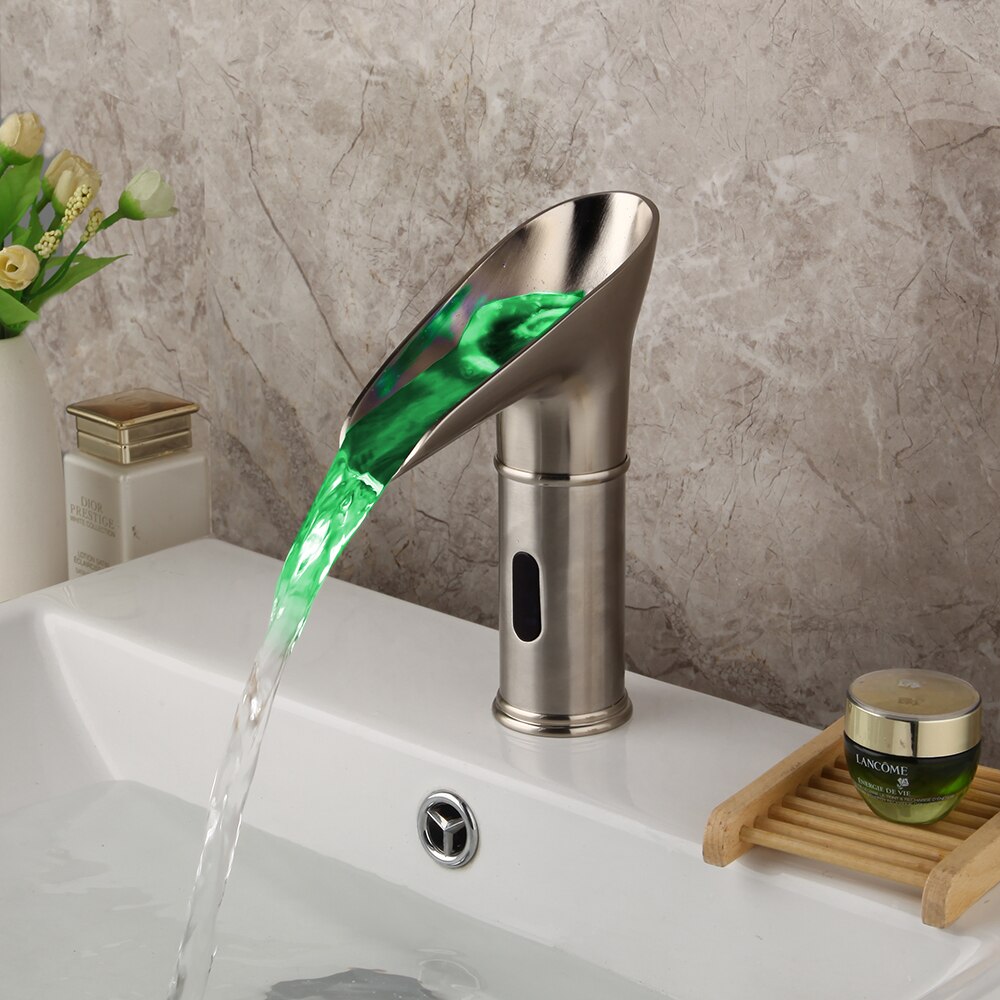

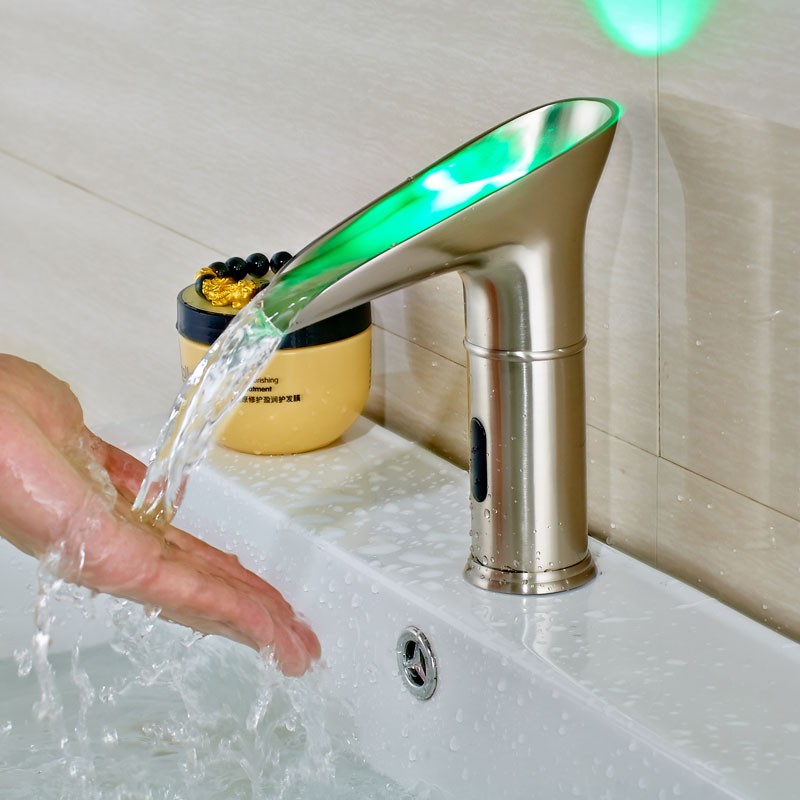

LED color changes according to water temperature
Temperature sensitive : 0-30C = Blue; 30-40C = Green; 41-50C = Red; 50-100C = Flashing Red
Finish: Brushed Nickel/ Oil Rubbed Bronze

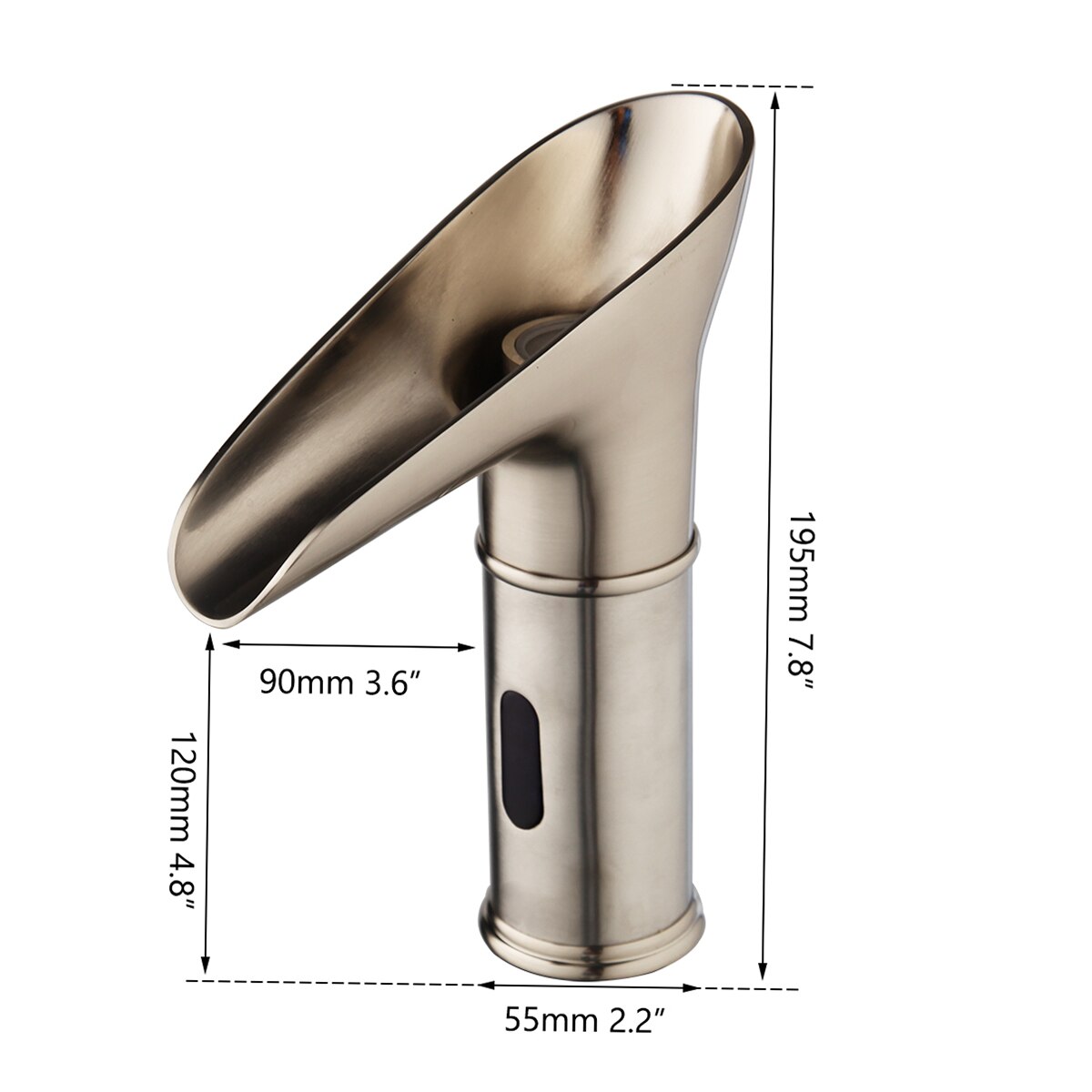

Overall Height: 19cm(7.5")
Spout Height: 12cm(4.7")
Spout Reach: 8.5cm(3.3")
Valve Type: Ceramic
Drain Included: No
Installation Type: Deck Mount
Faucet Mount: Single Hole
Product Dimension: 11.81in x 7.87in x 3.9
Usage: Commercial / Residential
sensor faucet
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
Sensor Faucet Installations Instructions
Size:
Deck Mount Installation
Parts Name:

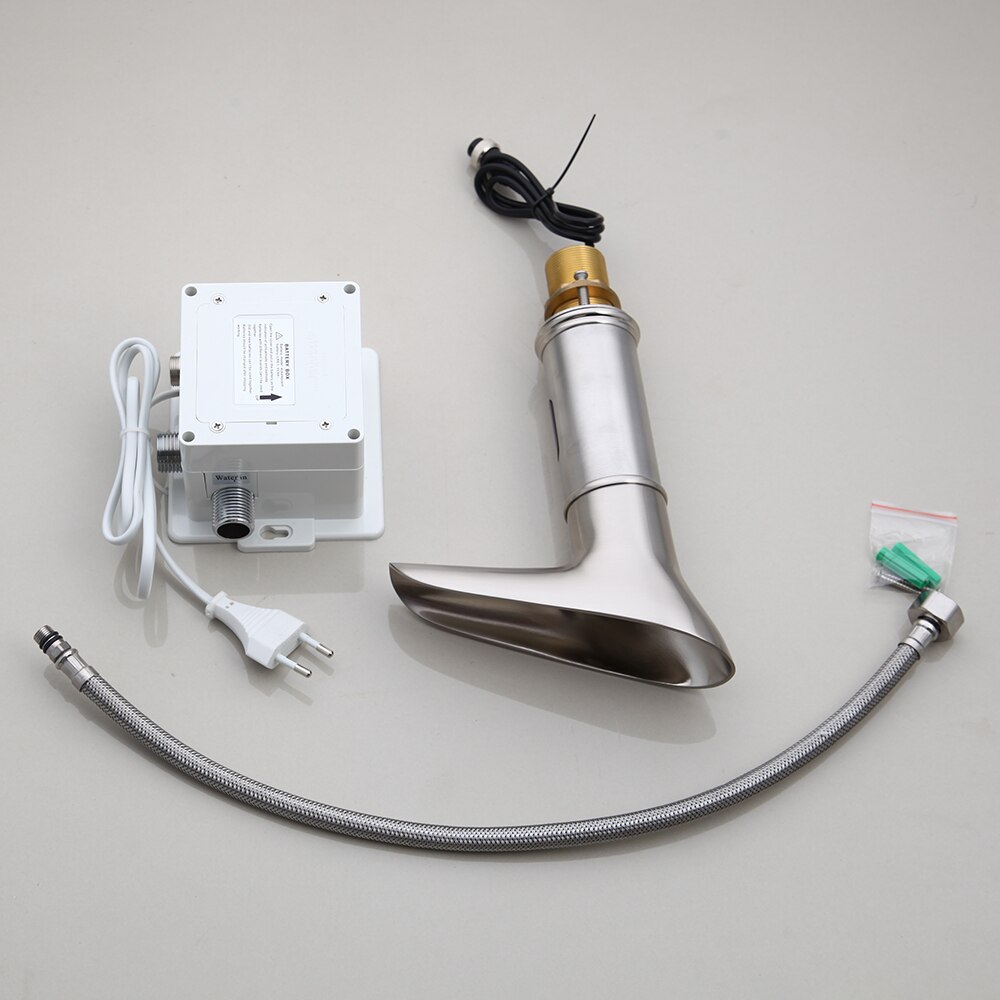

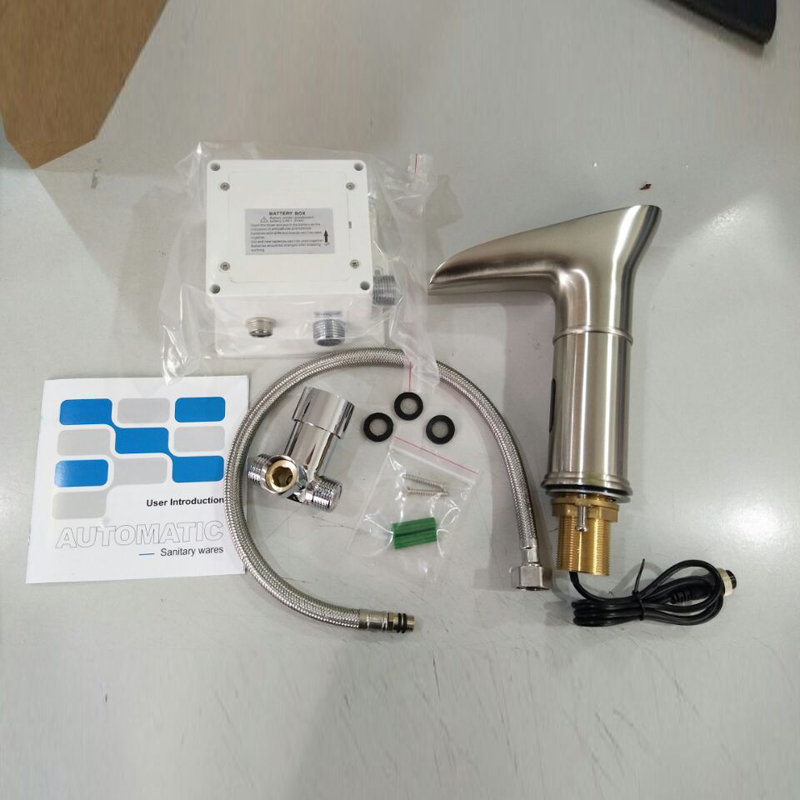

A - Faucet Body B - O-ring C - Rubber Washer D - Metal Washer E - Mounting Nut F - Hose G - Waterlines H - Supply Elbow I - Control Box J - Data Cable K - Threaded Pipe AA - Screw
Battery (DC 6V) Only Control Box
Step 1:
Step 2: (Hot & Cold Connection)
infrared
Battery (DC 6V) & AC 220V Control Box
Step 3:
Step 4:
Step 5: (Flush debris from waterpipes)
Step 6: Hot & Cold Regulator
Step 7: (Correct way for Hose)

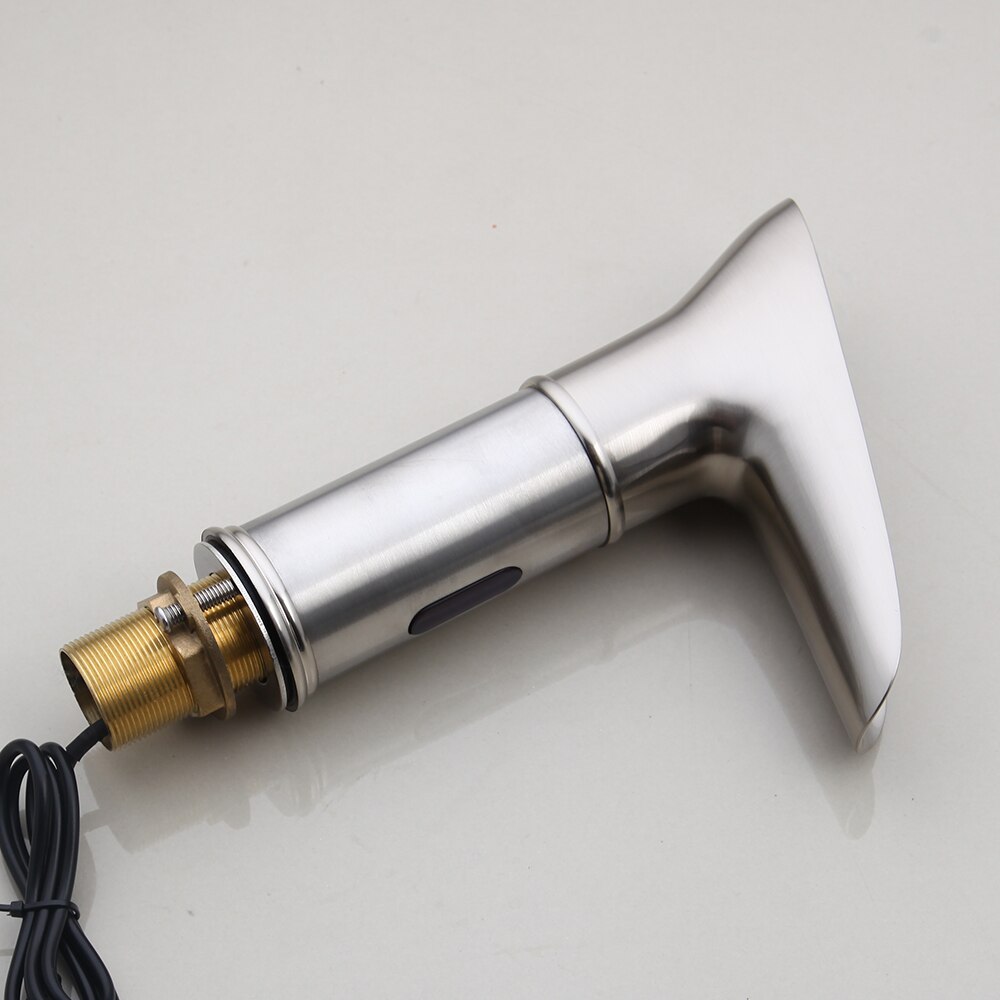

1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body.
2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws.
3. Install the control box to the wall and fix it with screws.
4. Add the rubber washer and screw supply elbow to the control box.
5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin.
6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts.
7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).
8. Turn the faucet on for 1 minute to flush any debris.

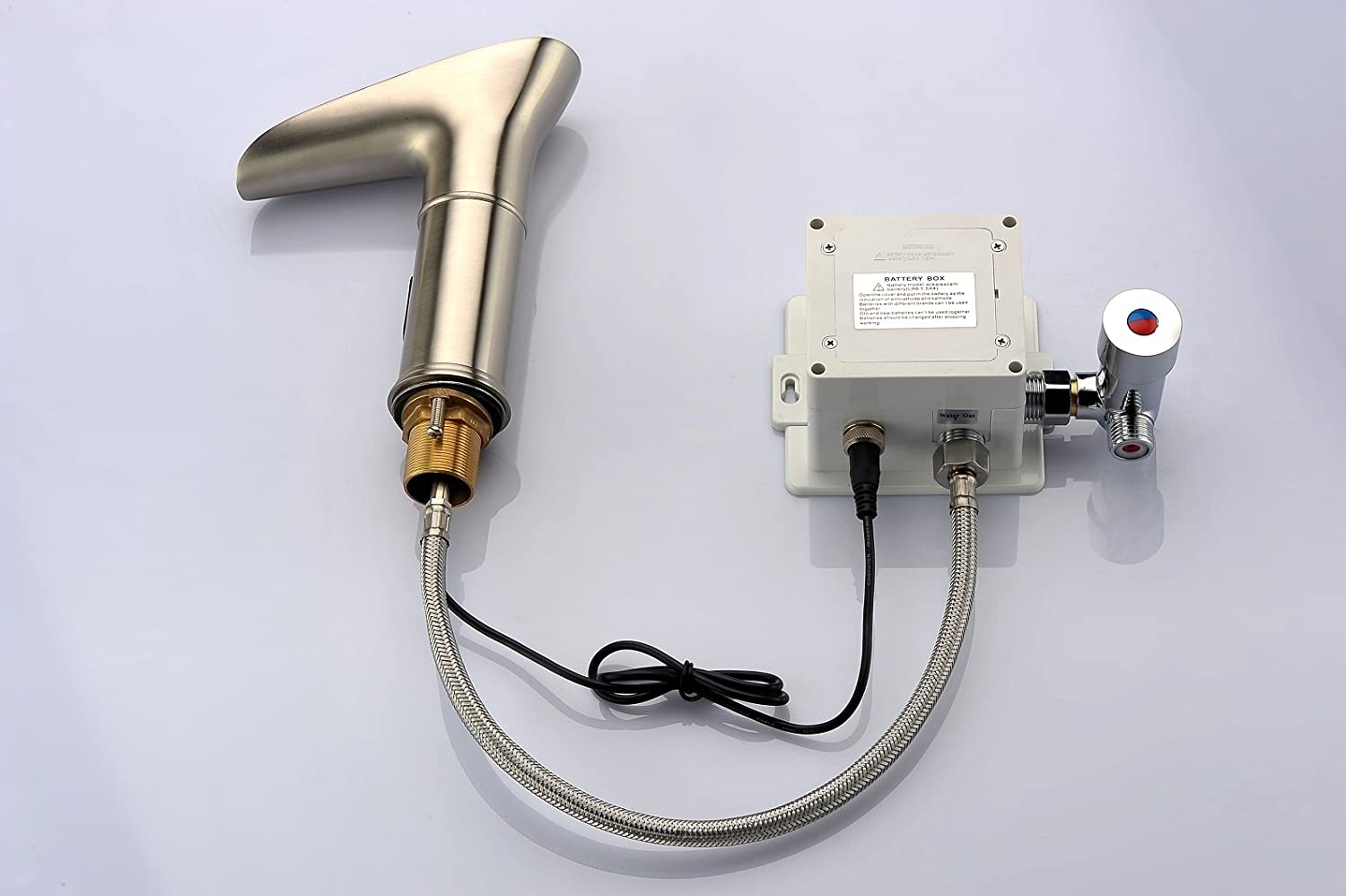

Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Control Box Installation Instructions
Step 1:
Step 2:
control box
Step 3:
Step 4:
Size: 5" x 5"
AC Cable
Step 5:
Step 6:
Inserting Batteries Your infrared spout is supplied with a back up battery pack (batteries not included). In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function.
Before fitting the power supply box into position on the wall/floor, batteries (not included) will need to be fitted.
1. Remove Power Supply Box Cover Remove all four screws in each corner of the power supply box and remove the cover.
2. Remove Battery Box Remove the battery case from the power supply box and remove the screw in the center of the case.
3. Insert Batteries Insert 4 x AA batteries (not included) into the battery box ensuring they are inserted the correct way. Note: Only use 1.5V AA (LR6) Alkaline batteries (preferably => 2000mAh for good battery life).
4. Replace Battery Box Replace the battery case cover. Replace and tighten the screw. Insert the battery case back into the power supply box.
5. Replace Power Supply Cover Replace the power supply cover and tighten all 4 screws ensuring they are all fully tightened.
Installation - Electrical Connections
1. Position Power Supply Box Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible.
Note: Ensure that the power supply box is fitted the correct way up (see opposite) and that the flexible hose will reach from the underside of the spout to the power supply box.
Using suitable fixings for the wall type secure the power supply box to the wall.
2. Connect Power Supply Cable Before starting any electrical work ensure the power supply is isolated. Wire the electrical power cable into a switched fused spur off the ring main. The blue wire should be wired to the neutral connection and the brown wire should be connected to the live connection.
Important: The power supply box must be permanently connected to the fixed wiring of the mains supply using the factory supplied power cable.
3. Plug In Power Cable Plug the power cable into the power supply box.
4. Connect The Sensor Cable Plug the sensor cable from the spout into the power supply box to activate the infrared senor.
Installation - Water Connections
Connecting Water Supply A blended water supply is required to the inlet of the power supply box. Before connecting the water supply to the power supply box flush through the pipework to ensure removal of debris. Once flushed through turn off the mains water supply and close any isolating valves.
Inlet Connection The inlet connection on the power supply box is a 1/2” BSP male threaded connection. Connect a 1/2” BSP female connector to the inlet connection ensuring a suitable sealing washer is used to create a water tight connection.
Outlet Connection The outlet connection is a standard 1/2” BSP male threaded connection. Connect the flexi hose (supplied) to the outlet connection, ensuring it is tightened fully.
Features:
Touch free operation
Water temperature adjustable
Hygienic:without touching, bacteria mutual infections can be avoided
Sensing range adjustable: 4.72"-7.08"12 - 18cm adjustable distance according to requirements
AC and DC dual choice: can be chosen by exchanging battery box and power box
Save electricity: The faucet can run for two years with four AA alkaline batteries
Anti-disturbance ability: Anti high-frequency signal and glare disturbance
Brass body with the temperature handle besides.It is a mixer, The cold water in the left turning,the hot water in right turning.
Dimension in cm: 20 (Height) *5. 5 (Width) *12 (Length)
Engineered for a lifetime use
Single-hole configuration
Voltage
DC 6V (4AA alkaline batteries)
Power consumption
≤5uA (4AA alkaline batteries last 2 years based on 300 cycles a day)
Sensor zone
30cm (the data based on 30cm*30cm standard whiteboard
Run time
When hands are within the sensor zone water will automatically flow. When the hand is removed from the sensor zone water turns off instantly.
Hot and cold water temperature control
See options
Inlet and outlet pipe dia.
G (1/2")
Water pressure
0.05-0.8 Mpa
Material and surface
Brass valve with Oil Rubbed Bronze
Functions: 1. Water saving: water flows out when hands get close and stops immediately. 2. Hygienic: one open and close to hands-free from any contact, which can efficiently prevent mutual infection of bacteria
3. Intelligent: with your computer to control its action, the faucet can auto adjust its best detection zone as per color and the shape of the sink
4. Low power consumption: for DC agitators, 4AA alkaline batteries can be used for 2 years.
5. convenient to maintain: there is an internal filter to prevent the entry of the solenoid valve of miscellaneous and the filter is easy to clean.
