How to Install 12-Inch Polished Ceiling Mount Shower Arm With 1/2-Inch NPT Thread | BST-G007

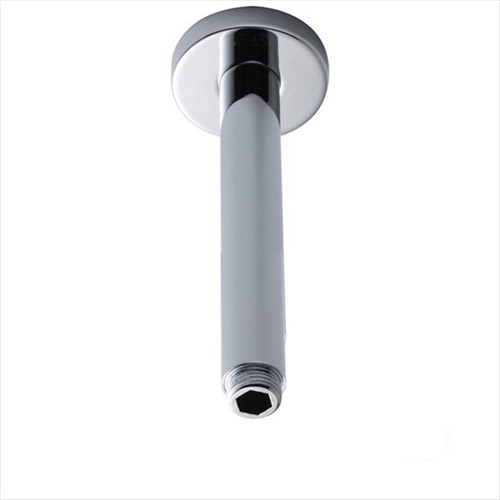

Round Ceiling Mount Shower Arm With 1/2-Inch NPT Thread - 12"

This ceiling-mount shower arm allows you to install a Modern Rain or Square Rain showerhead lower in your shower for a more gentle rainfall. A sleek gleaming chrome finish covers the entire fixture making it beautiful too look at as well as easy to clean. This is constructed from strong and durable brass and chrome finished, undertakes to provide optimal shower terminals for users and offers a serious of thoughtful designed of a showerhead, accessories, and bath safety products for residential. Full extra thick brass construction tube ensures durability, heavy-duty and long life use.


Features: Surface Finish: Chrome Material: Brass Bathroom Faucet Accessory Type: Shower Arm Model Number: BST-G007 Quantity: 1 Installation: Ceiling Mounted	shower head

Important Note:

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

Step 1:	shower	Step 2:

Rough-in: Install a 1/2" NPT female fitting, inside the surface of the finished ceiling.		Wrap the threads on '12" NPT part of the nipple with plumber's tape. Install the mounting nipple using a 3/8" Allen wrench (not included).

Step 3:		Step 4:

Seal the ceiling around the nipple using a waterproof sealant. Install the mounting ring.		Mark the positions of four screw holes.

Step 5:		Step 6:

Remove the mounting ring.		Drill the screw holes using a 6 mm bit. Install the anchors. Seal the ceiling around the an-chors using a waterproof sealant.

Step 7:		Step 8:

Install the mounting ring.		Install the screws.

Step 9:		Step 10:

Install the escutcheon.		Wrap the threads on the nipple using plumber's tape. Install the extension pipe.
