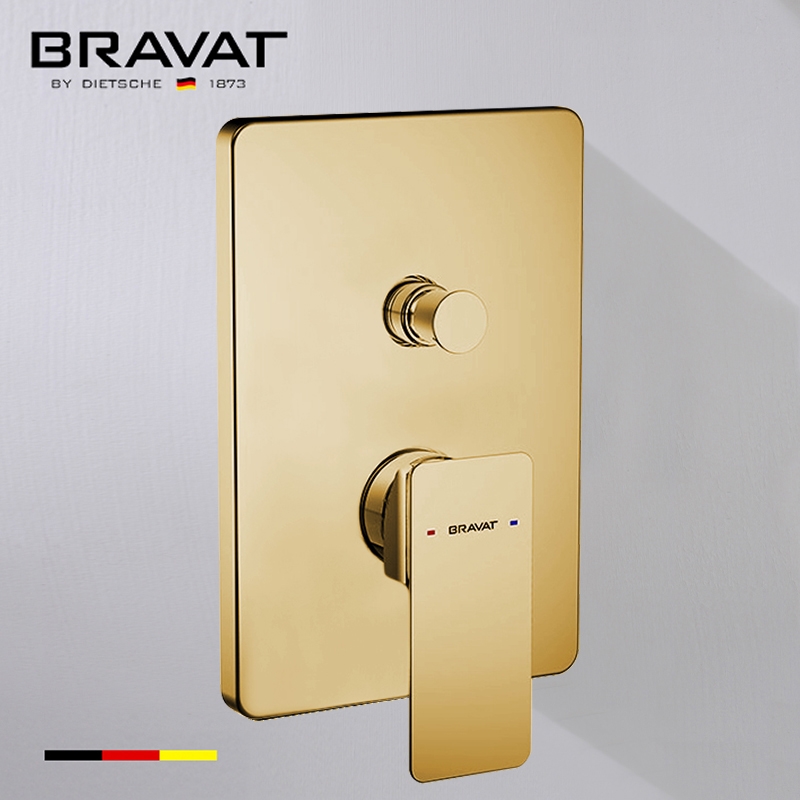

HOW TO INSTALL BRAVAT SOLID BRASS SQUARE SHOWER MIXER CONTROL VALVE IN BRUSHED GOLD FINISH | BST10221

	This wall mixer has a bold and attractive look that enhances the look of any bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes.This style of shower mixer is the perfect solution for updating your existing bathroom hardware. The brushed gold finish is highly reflective for a mirror-like look that works with any decorating style. This unique design give you a different user experience. Designed for hassle-free installation. Monitor pressure balance valve keeps the water temperature within a safe, helping to protect you from sudden changes in hot or cold water pressure. It comes with super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. With German quality and stylish designs, Bravat products are popular in luxury hotels and commercial constructions around the world. It is Bravat's global strategic goal to provide the customer with not only excellent products but also leading lifestyle.



Features:		Visit Product Page
Brand Name: BRAVAT Model Number: BST10221 Type: Bathroom Shower Mixer Installation Type: US Standard Installation: Wall Mount Surface Finish: Brass Surface Treatment: Brushed Gold Number of Handles: One Handle Style : Contemporary Valve Core Material: Ceramic Feature: Wall Mount Material: Brass, 59% A+Brass Installation Holes: Two Plating Thickness: 10 um Plating Technology: PVD Usage: Shower Hot & Cold Water Mixer: Yes Fitting Thread: Standard G1/2'' Function: Fixed Support Type Usage: Bathrooms, Hotels, Restaurants Etc	shower

Specs:

Flow pressure:

min. 0.05 MPa—recommended 0.1 – 0.5 MPa

Operating pressure: max. 1.0 MPa

Test pressure: 1.6 MPa

Flow rate at 1 bar flow pressure

Basin： approx. 4 L/min

Bath: approx. 7 L/min

Shower: approx. 6 L/min

Flow rate at 3 bar flow pressure

Basin： approx. 12 L/min

Bath: approx. 21 L/min

Shower: approx. 18 L/min

Hot water inlet temperature: max. 80 ℃

Recommended( energy saving): 60 ℃

Temperature： 5℃～45℃

If static pressure exceeds 5 bar, a pressure-reducing

valve must be fitted.

Avoid major pressure differences between hot and cold

water supply.

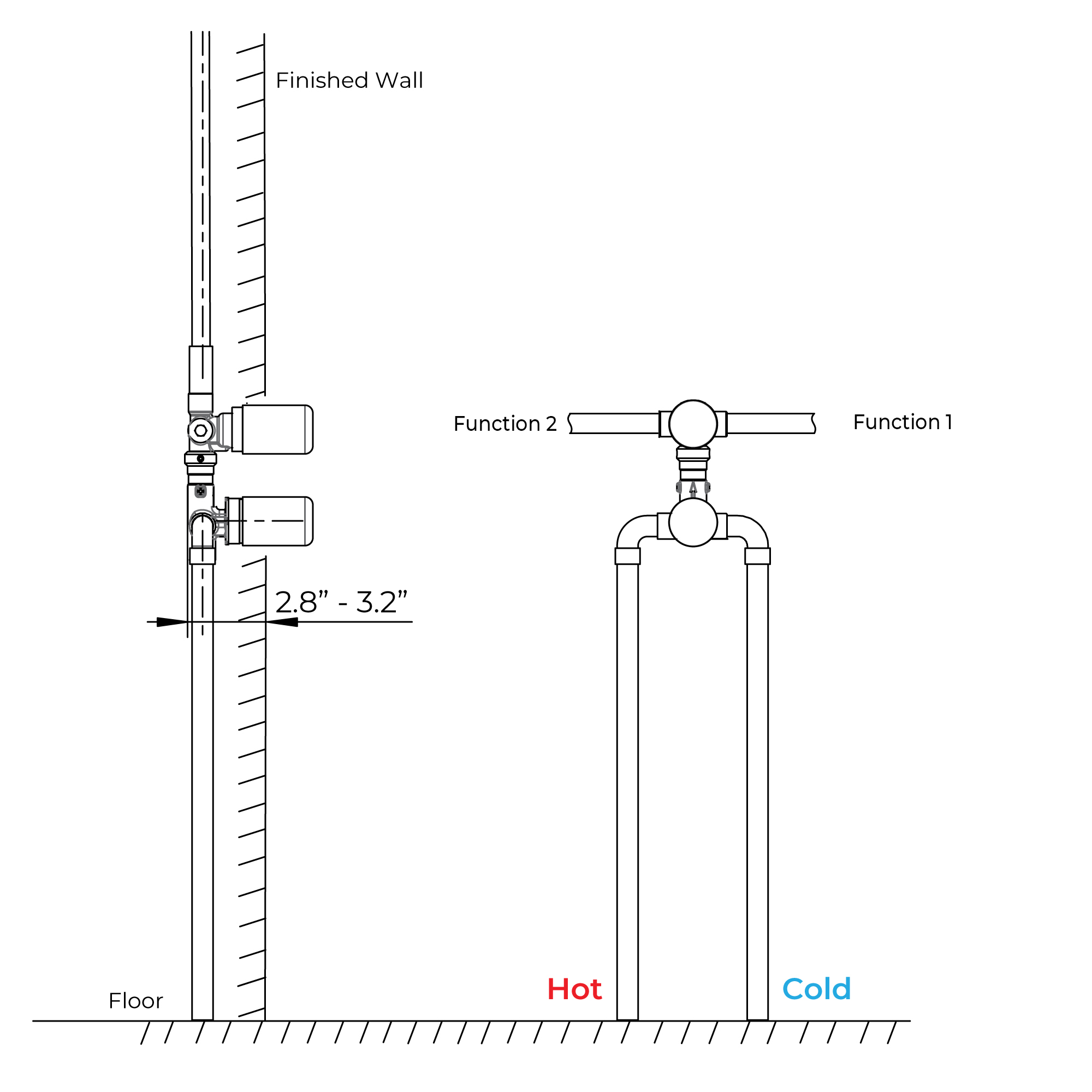

Shower Mixer Control Valve Installation Instructions

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body) 2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover. 3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button. *Function:* Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
