Dark Oil Rubbed Bronze Three Crystal Handle Mixer Installation Instructions

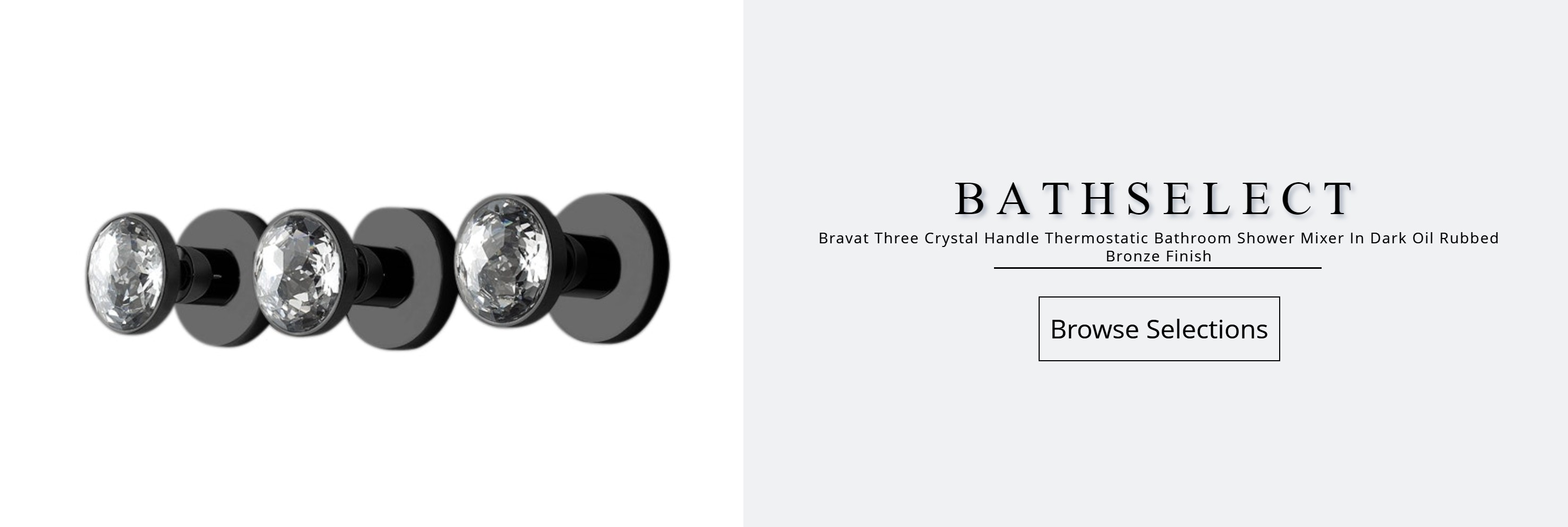

Bravat Three Crystal Handle Thermostatic Bathroom Shower Mixer In Dark Oil Rubbed Bronze Finish

Add a modern look to your bathroom with the Bravat three crystal handle thermostatic bathroom shower mixer. The dark oil rubbed bronze finish is highly reflective for a mirror-like look that works with any decorating style. This unique design give you a different user experience.This style of shower mixer is the perfect solution for updating your existing bathroom hardware. This shower mixer has been made with premium grade lightweight. This model is made for accommodating everyday use in your bathroom, this can be used to suit everyone’s needs and can be used separately or together. Designed for hassle-free installation. Monitor pressure balance valve keeps the water temperature within a safe, helping to protect you from sudden changes in hot or cold water pressure.This wall mixer has a bold and attractive look that enhances the look of any bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. With German quality and stylish designs, Bravat products are popular in luxury hotels and commercial constructions around the world. It is Bravat's global strategic goal to provide the customer with not only excellent products but also leading lifestyle.
Bravat Three Crystal Handle Thermostatic Bathroom Shower Mixer In Dark Oil Rubbed Bronze Finish Feature
  • Brand Name: BRAVAT
  • Model Number: BST10211
  • Type: Bathroom Shower Mixer
  • Installation Type: US Standard
  • Installation: Wall Mount
  • Surface Finish: Brass
  • Surface Treatment: Dark Oil Rubbed Bronze
  • Number of Handles: Three Handle
  • Style : Contemporary
  • Valve Core Material: Ceramic
  • Feature: Wall Mount
  • Material: Brass, 59% A+Brass
  • Installation Holes: Three
  • Plating Thickness: 10 um
  • Plating Technology: PVD
  • Usage: Shower
  • Hot & Cold Water Mixer: Yes
  • Fitting Thread: Standard G1/2''
  • Function: Fixed Support Type
  • Usage: Bathrooms, Hotels, Restaurants Etc.
Bravat Three Crystal Handle Thermostatic Bathroom Shower Mixer In Dark Oil Rubbed Bronze Finish
BathSelect® Manufacturer Warranty Information
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided
mixer mixer

Crystal Thermostatic Mixer Installation Instructions



Step 1



mixer Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8


Once the shower valve has been installed the wall surface should be finished and tiled up-to the valve. Rear access is required to allow for future servicing and maintenance of the valve filters. The thermostatic cartridge is accessible from the front.

Before Installation
Flush through the pipework to ensure removal of any debris. Turn off the mains water supply and close any isolating valves.

1. Install shower valve
Install suitable battens (if required) onto the rear cavity wall. Place the shower valve in the required position and mark the fixing holes.
Drill suitable holes and insert the wall plugs (if necessary). Securely attach the shower valve to the wall/battens using the screws supplied.

2. Connect water supply pipes
Insert 15mm hot and cold water supply pipes into the inlet connections and tighten nuts, ensuring the olives are fitted.

3. Plumb in outlets
Insert 15mm pipework into the top and bottom outlets and plumb into the users chosen products. Ensure the olives are fitted when tightening the nuts.

4. Finish wall surface
Plasterboard and tile the cavity wall ensuring there is a gap between the tiles and the shower valve.

5. Fit concealing plate and handles
Run a bead of waterproof silicon sealant around the inner edge of the concealing plate.
Slide the concealing plate onto the shower valve and apply firm pressure to ensure to silicon sealant spreads.

6. Fit handles
Push the spline adaptors onto the valve spindles.
Push the handles onto the spline adaptors and secure by tightening the grub screw and push-fit the cap into position.

7. Create rear access
Rear access to the shower valve is required to enable the shower to be maintained and serviced. Cut out the rear plasterboard in the back of the wall cavity to create access. A piece of plasterboard or a panel may be used to cover the access hole but must be removable.
