Home > Brio Wall Mount Intelligent Sensor Washroom Commercial Faucet

Installation Instructions for Brio Wall Mount Intelligent Sensor Washroom Commercial Faucet

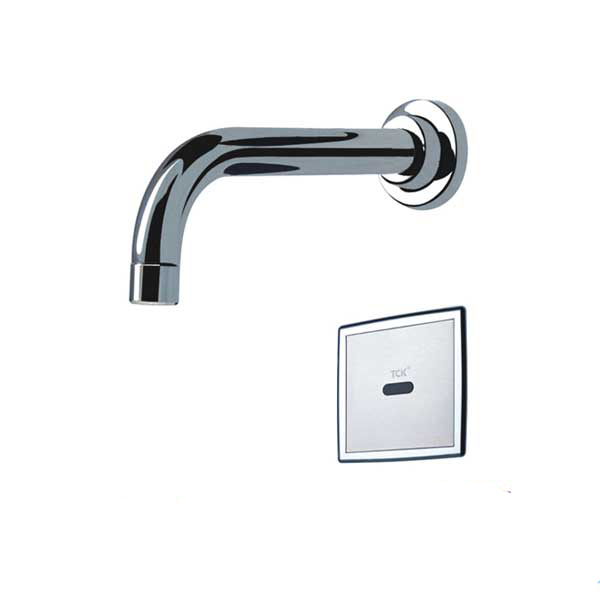

Brio Wall Mount Intelligent Sensor Washroom Commercial Faucet

If you're looking for an affordable yet reliable sensor faucet, then this Wall Mount Intelligent Sensor Washroom Faucet is your best option. As both faucet and sensor are mount on the wall, it can help you to save space on your sink's deck. But the space saving feature is only the tip of the ice berg, since this faucet can help you save so much more money-wise. With the highly advanced sensor, you no longer have to worry about wasting water for your business as it automatically turns on and off thereby reducing water consumption and costs. Worried that it may increase your electricity expenses? Don't be, because this automatic faucet runs on batteries and can last for more than 100,000 washes. Furthermore, the whole fixture is made of quality brass to ensure that it withstands rust and corrosion for up to 5 years, minimizing and reducing replacement costs and repairs. With its affordable price and solid features, this Wall Mount Intelligent Sensor Washroom Faucet is definitely one of the best investments you can make for your business. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Wall Mount Sensor Faucet Technicals

Type Basin Motion Faucet
Model Number BST56061WF
Surface Treatment Polished
Number of Handle 0
Power supply DC,AC,AC+DC
Surface Finishes Chrome,Gold,Brush,Nickle
Surface Finish Chrome
Faucet Mount Single Hole
Style Contemporary
Approval CE,WRAS,CUPC,ROHS,WATERMARK
Battery Lifespan 108000 Flushes

Brand Name Fontana Wall Mount Auto Faucet
Feature Sense Faucets, Thermostatic Faucets, Electric Faucets, 2014 Electrical Sensor Kitchen Sink Basin Tap
Installation Type Wall Mount
Valve Core Material Brass
Sensor Field 5-30 cm Adjustable
Flow Rate 2.2 GPM

More Specifications

  1. Self contained design
  2. Cupc,Wras,Nsf,Watermark,Ce

Electrical Sensor Sink Basin Tap

  • Self contained design
  • Ceramic mixing valve built-in
  • Wall mount design one piece infrared sensor basin faucet
  • The sensor is self-adjusting to its installation environment when wired in
  • Mains and battery powered options included
  • Solid brass construction
  • Hygienic and water conservation
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Power Supply DC:6V(4 x AA alkaline batteries) AC:220V-240V/50Hz or AC110V/60Hz
Power Consumption Static≤0.3mW;Active≤3W
Battery life 108000 flushes(4 x AA alkaline batteries)
Sensor Field (1.96"-13.77") 05-35cm (adjustable)
Water Pressure 0.05~0.8MPa
Ambient temperature 0~55°C
Working life 350000~400000 times
Sensor time <1 Sec
Closing time <2 Sec
Low voltage indication 3.9V(The light will flash twice each two seconds)
Self shut off time 65-70 Sec (Non stop flushing)
