Step by step Installation Instructions for the Bravat Wall Mounted Dark Oil Rubbed Bronze Shower Set With Thermostatic Valve Mixer 3-Way Concealed
Bravat Wall Mount Dark Oil Rubbed Bronze Shower Set With Thermostatic Mixer Valve 3-Way Concealed
The Bravat Dark Oil Rubbed Bronze Shower Set With Mixer Valve 3-Way Concealed Wall Mount is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful Dark Oil Rubbed Bronze finish. Turn on the fun in your shower and experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress just by turning on the water in a high-pressure bathroom head shower with 360° 6 adjustable body spray jets and a hand shower.
Bravat Dark Oil Rubbed Bronze Shower Valve Mixer 3-Way Concealed Wall Mounted Features:
Brand Name: BathSelect
Model Number: BS1051
Type: Shower Set & Shower Mixer
Style: Contemporary
Type: Fixed Support Type
Surface Finish: Dark Oil Rubbed Bronze
Installation Type: Wall Mount
Number of Jets: Four
Control Type: Single Holder Dual Control
Size: 7.91"-11.85" (201-300mm)
Surface Treatment: Polished
Valve Core Material: Ceramic
Bath Shower Type: In-Wall Shower Mixer
Valve Type: Ceramic Valve
Faucet Handle Material: Zinc Alloy
Mixer Body Material: Brass
Valve Included: Yes

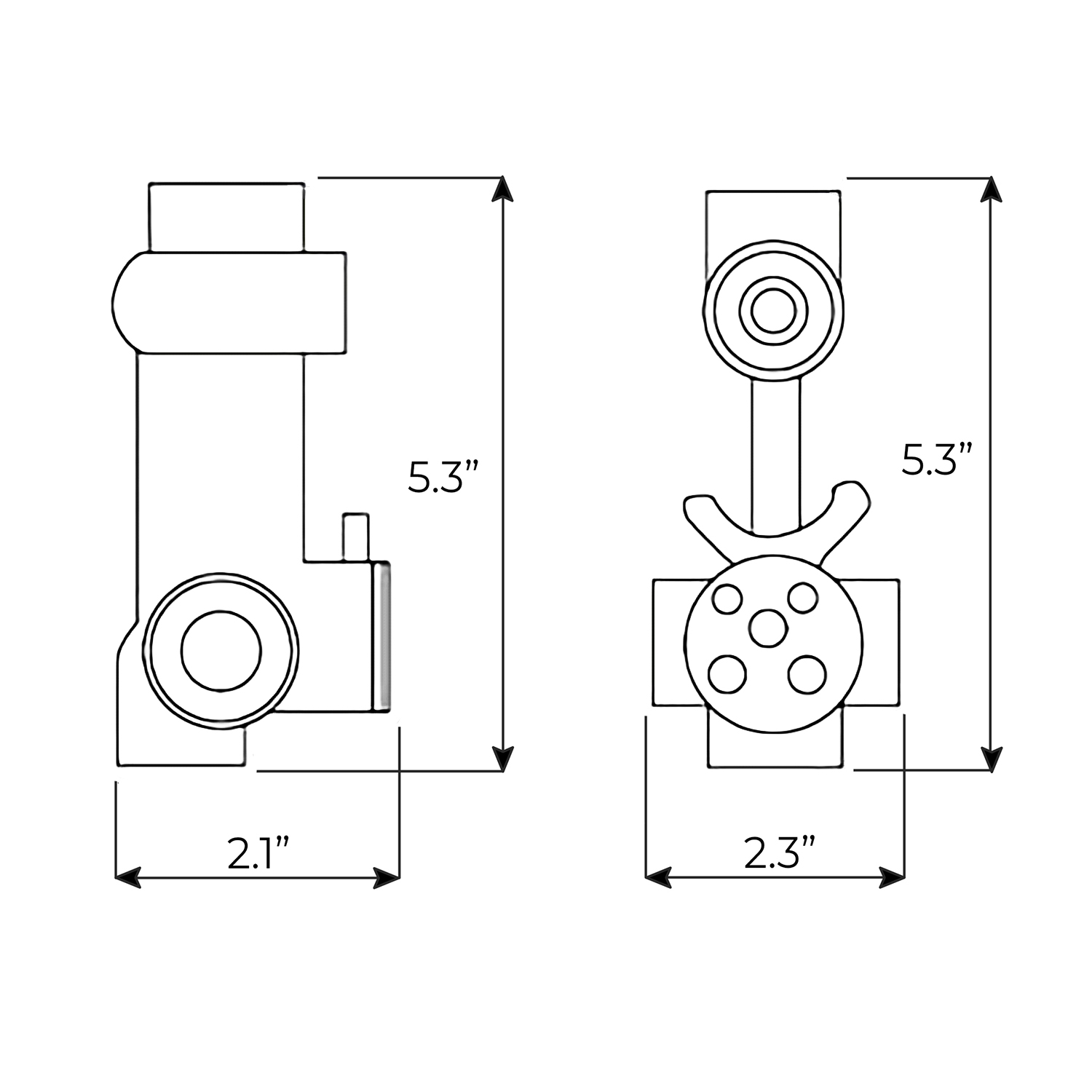

Embedment Depth: 2.16" (55mm)

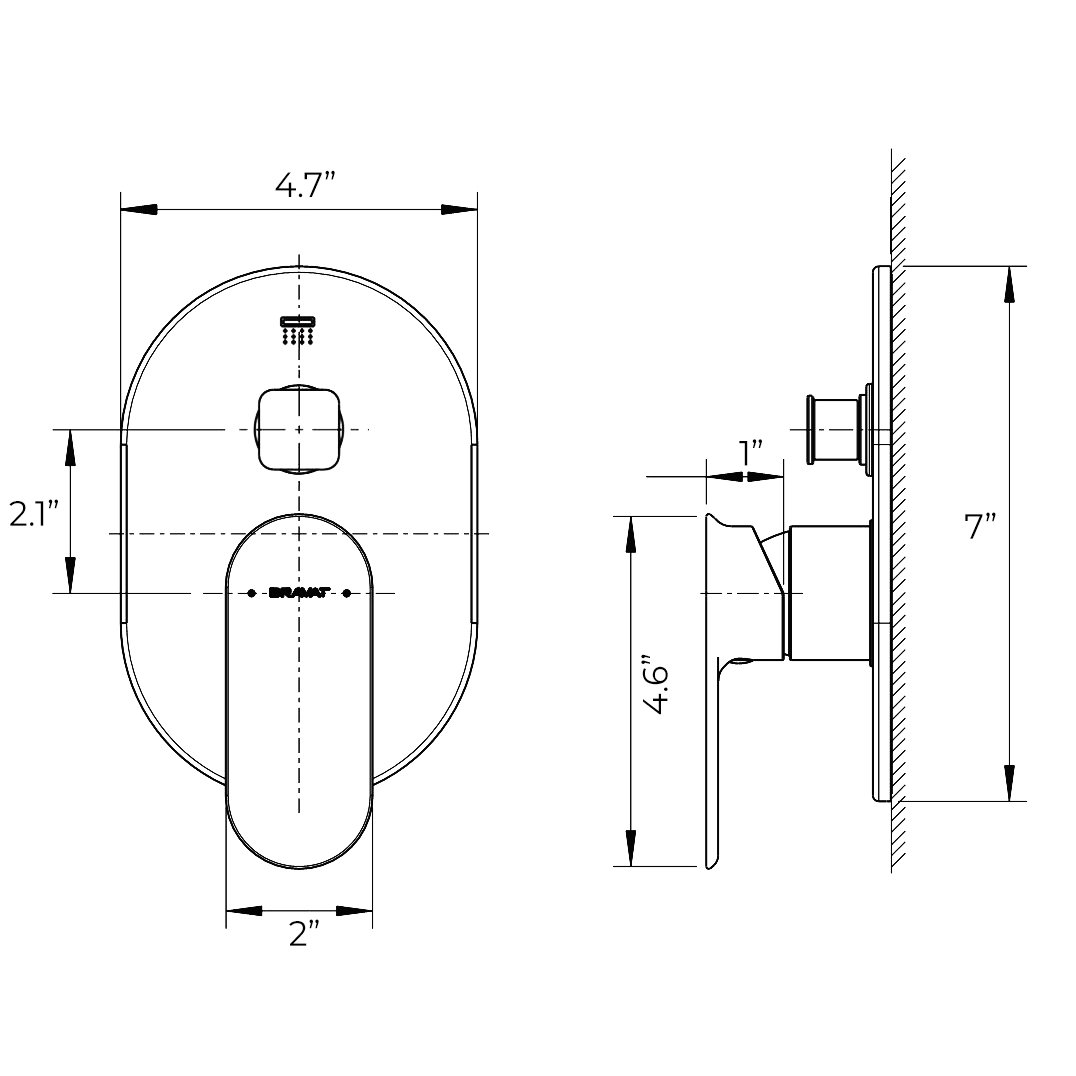

Valve Panel Dimension: 6.29"x6.29" (160x160mm)
Connector: G1/2"B (Standard)
|
|
BathSelect® Manufacturer Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
|
shower
|
Shower
|
|
Shower Head Installation Instructions
|
Shower Head Parts Included:
- Wall Mounting Arm
- Locking nut
- Wall trim
- Shower arm
- Showerhead
- Fixing screws and wall plugs (not shown)
|
|
|
|
|
Step 1:
|
|
Step 2:
|
|
Step 3:
|
|
Wall Mount Round Showerhead
|
Showerhead
|
|
Showerhead
|
|
|
|
|
|
|
|
|
Wall Mount Round Showerhead
|
|
|
|
|
|
Step 4:
|
|
Step 5:
|
|
Step 6:
|
|
Wall Mount Round Showerhead
|
|
|
|
|
|
|
|
|
|
|
|
HandHeld Shower Installation Instructions
Hand-Held Shower Installation Instructions
1. Gather All Parts
2. Hole Locations For Wall Mount
Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.
3. Anchor Installation
Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.
4. Wall Mount Installation
Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)
5. Drop Elbow & Hose Installation
Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall. The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall. Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).
6. Unit Startup
Turn on hot and cold water supplies, and check all connections for leaks.
7. Final Flushing
For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.
8. Shower Arm Installation
Place Rubber Seal (A) inside Tapered Hose Fitting (B). Conned Hand Shower (C) to Hose (D) by turning Tapered Hose Fitting (B ) clockwise. Warning: Make sure Hand Shower (C) is securely tightened to Hose (D).
|
|
|
|
|
|
Handheld Shower Installation Instructions
Body Sprays Installation Instructions
|
