Easy Installation Instructions for Bravat Square Shower 2-Way Mixer Control Valve In Dark Oil Rubbed Bronze Finish
Bravat Square Shower 2-Way Mixer Control Valve In Light Oil Rubbed Bronze Finish
This wall mixer has a bold and attractive look that enhances the look of any bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes.This style of shower mixer is the perfect solution for updating your existing bathroom hardware. The oil rubbed finish is highly reflective for a mirror-like look that works with any decorating style. This unique design give you a different user experience. Designed for hassle-free installation. Monitor pressure balance valve keeps the water temperature within a safe, helping to protect you from sudden changes in hot or cold water pressure. It comes with super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. With German quality and stylish designs, Bravat products are popular in luxury hotels and commercial constructions around the world. It is Bravat's global strategic goal to provide the customer with not only excellent products but also leading lifestyle.
Bravat Square Shower 2-Way Mixer Control Valve In Light Oil Rubbed Bronze Finish Features
- Brand Name: BRAVAT
- Model Number: BST10233
- Type: Bathroom Shower Mixer
- Installation Type: US Standard
- Installation: Wall Mount
- Surface Finish: Brass
- Surface Treatment: Light Oil Rubbed Bronze
- Number of Handles: One Handle
- Style : Contemporary
- Valve Core Material: Ceramic
- Feature: Wall Mount
- Material: Brass, 59% A+Brass
- Installation Holes: Two
- Plating Thickness: 10 um
- Plating Technology: PVD
- Usage: Shower
- Hot & Cold Water Mixer: Yes
- Fitting Thread: Standard G1/2''
- Function: Fixed Support Type
- Usage: Bathrooms, Hotels, Restaurants Etc
|
|
BathSelect® Manufacturer Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
shower
|
Shower
|
|
Mixer Installation Instructions
Thermostatic Shower Mixer Installation Instructions
Thermostatic Shower Mixer
|
Step 1:
|
|
Step 2:
|
|
|
|
|
Thermostatic Shower Mixer
|
Shower
Mixer
|
|
|
|
|
|
|
|
|
|
|
|
Shower Mixer
|
|
|
|
|
|
Step 3:
|

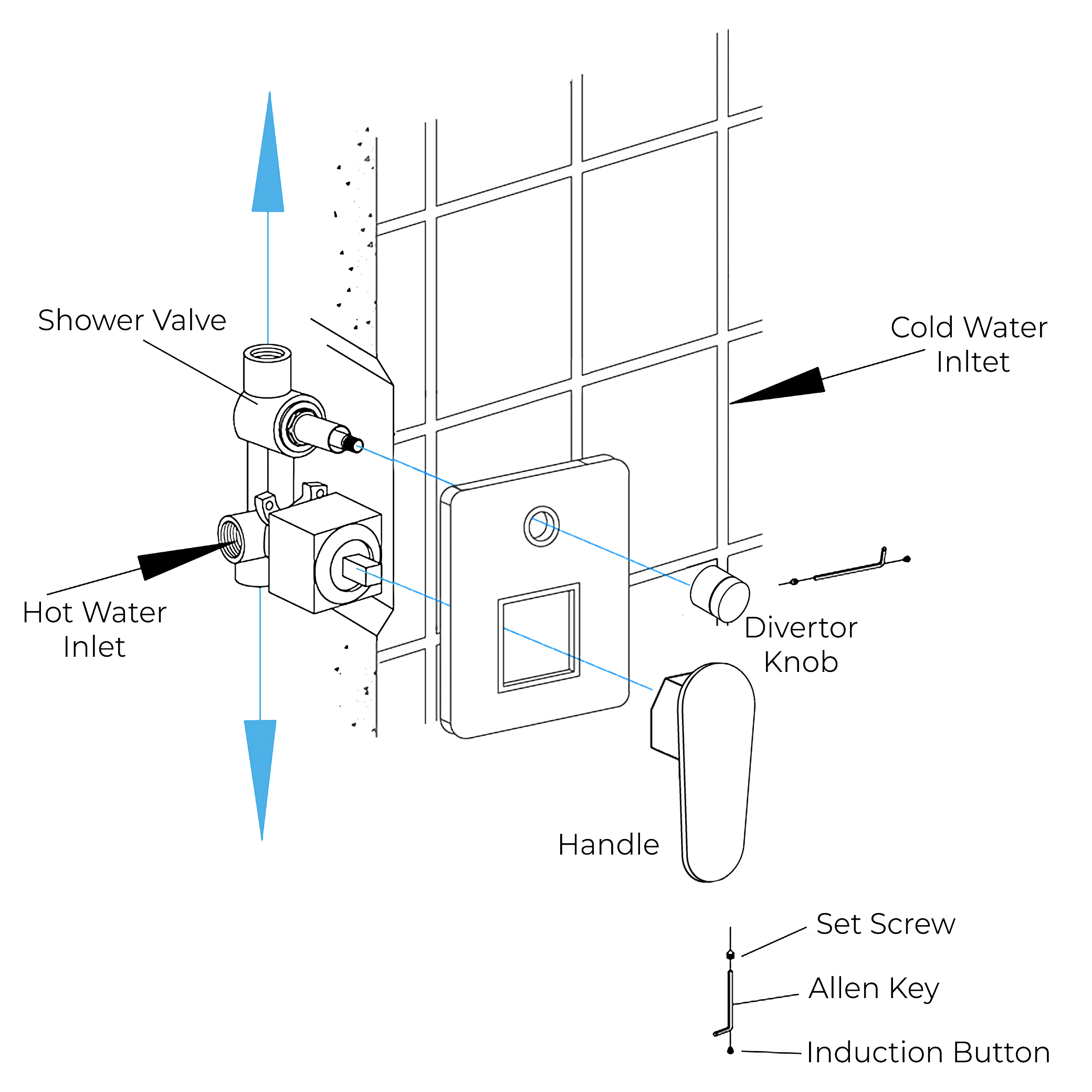

Parts List
|
Parts List:
- Shower Valve
- Hot Water Inlet
- Cold Water Inlet
- Diverter Knob
- Handle
- Set Screw
- Allen Key
- Indication Button
- Escutcheon
|
|
|
|
1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)
2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.
3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.
Step by step Installation Instructions for the Thermostatic Mixer
|
|
|
