Solid Brass Square Shower Mixer Installation Instructions


  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided

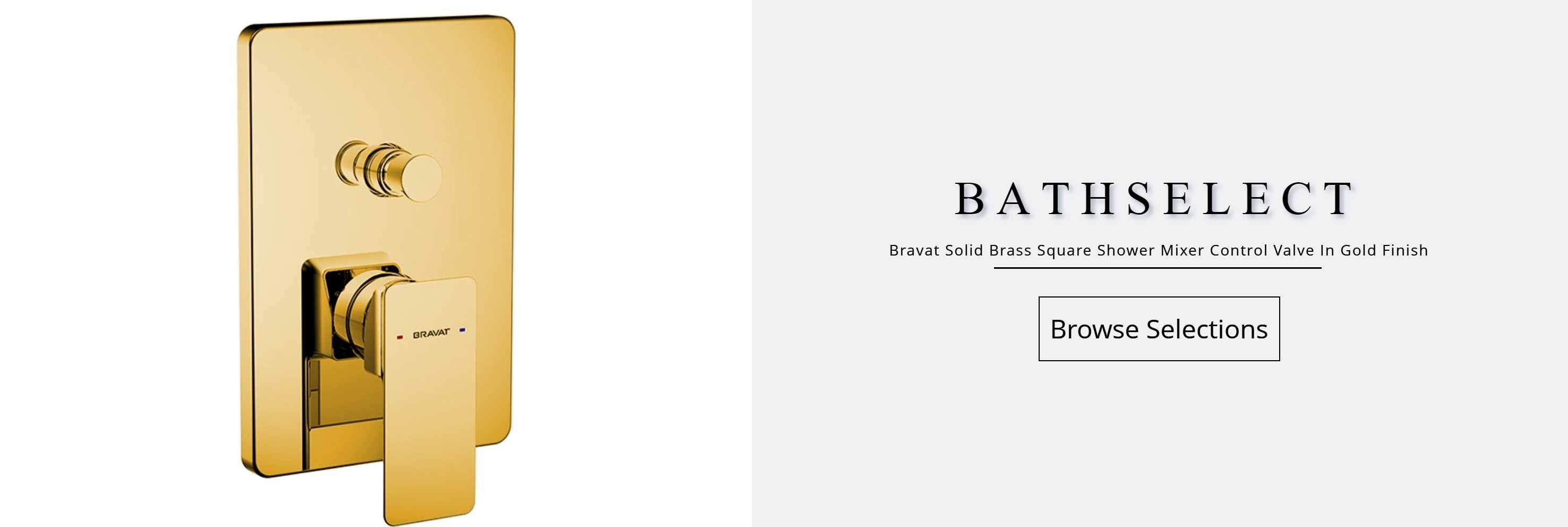

mixer mixer Solid Brass Square Shower Mixer

Square Shower Mixer Installation Instructions

Step 1
mixer Step 2

Step 3

Step 4

1. Install the valve body. Wrap the threaded portion of the joints in Teflon tape and connect the water inlet and outlet.
2. Put the protective cover on the valve body and finish the shower wall.
3. When the finished wall is complete, remove the protective cover.
4. Install the escutcheon, and handle it. Tighten the set screw with an Allen wrench to secure.
