BathSelect 20" Large Shower head with 3 Way Mixer & Handshower Installation Instructions

Mist & Rain Showerhead 20" Large Shower head with 3 Way Mixer & Hand shower

Our BathSelect Large Shower Head is one of the Best & Unique Shower Heads available in the market at an extremely competitive price range. The Shower Head is 20" Square in Shape and have a Chrome Finish. The Shower Set comes a with a Hand shower & 6 Body Massage Jets. This Contemporary Styled Shower Set comes with a 3 Way Mixer which allow 3 Way Mixing and have a Hand Shower.

BathSelect 20" Large Shower head with 3 Way Mixer Specifications

  • Type : Shower Set
  • Style : Contemporary
  • Feature : Thermostatic Shower Set
  • Valve Core : Ceramic
  • Installation : Ceiling Mount
  • Surface Finish : Chrome
  • Material : 304 Stainless Steel and Brass
  • Function : Rainfall + Mist
  • Water Pressure : 0.25-0.5MPA
  • Water Flow : 14-25 L/Min
  • Shower Arm : Include 4 Arms
  • Valve : 4 Way Thermostatic
BathSelect 20" Large Shower head with 3 Way Mixer & Handshower
BathSelect® Manufacturer Warranty Information
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
shower shower

Shower Head Installation


Step 1

showerStep 2

shower
Step 3

Step 4

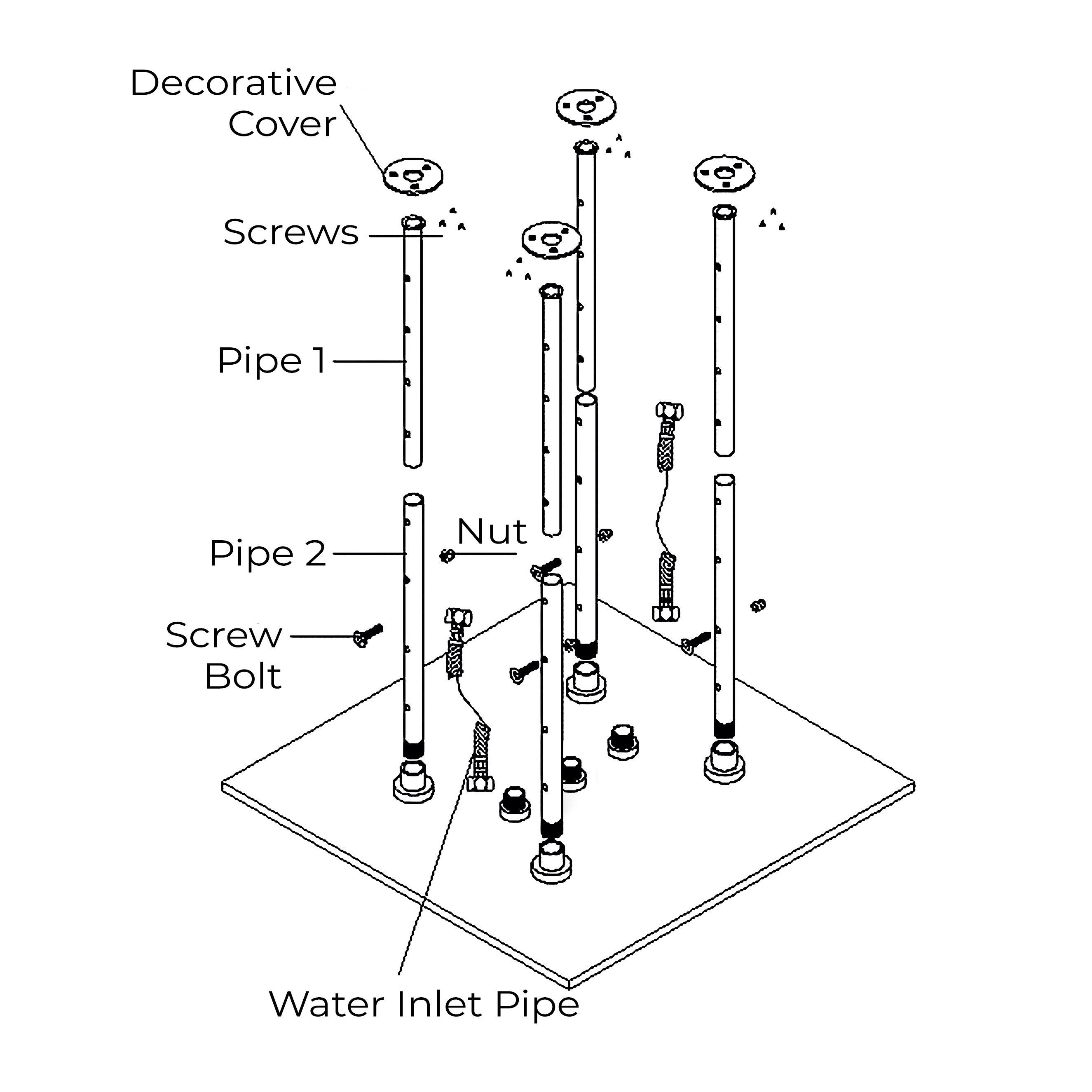

  • Decorative cover
  • Screws
  • Pipe 1
  • Pipe 2
  • Screw
  • Bolt
  • Nut
  • Water Inlet Pipe


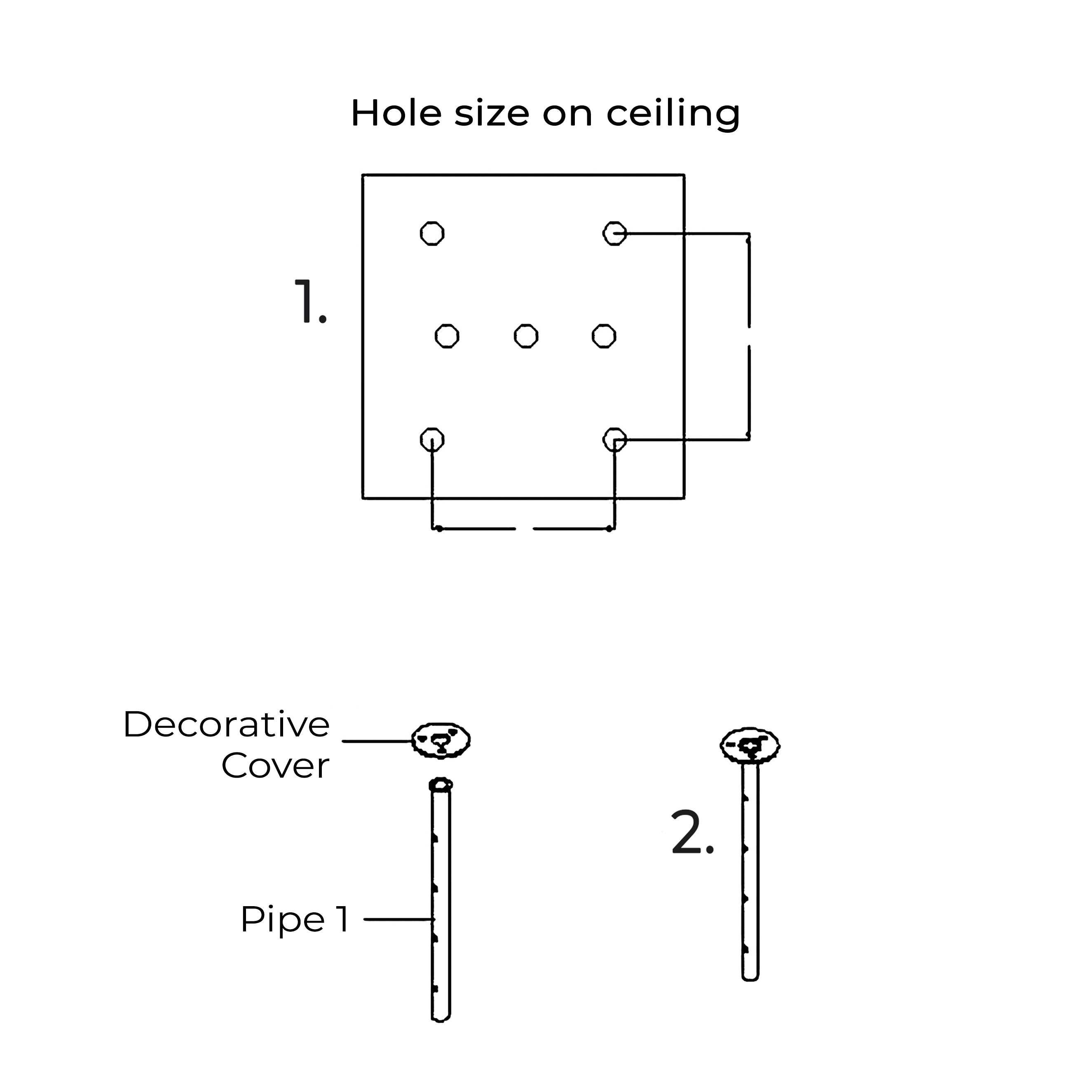

Hole size on ceiling
1. Drawing the line on the ceiling according above specification
Decorative Cover
Pipe 1
2. Connect pipe 1 with decorative cover

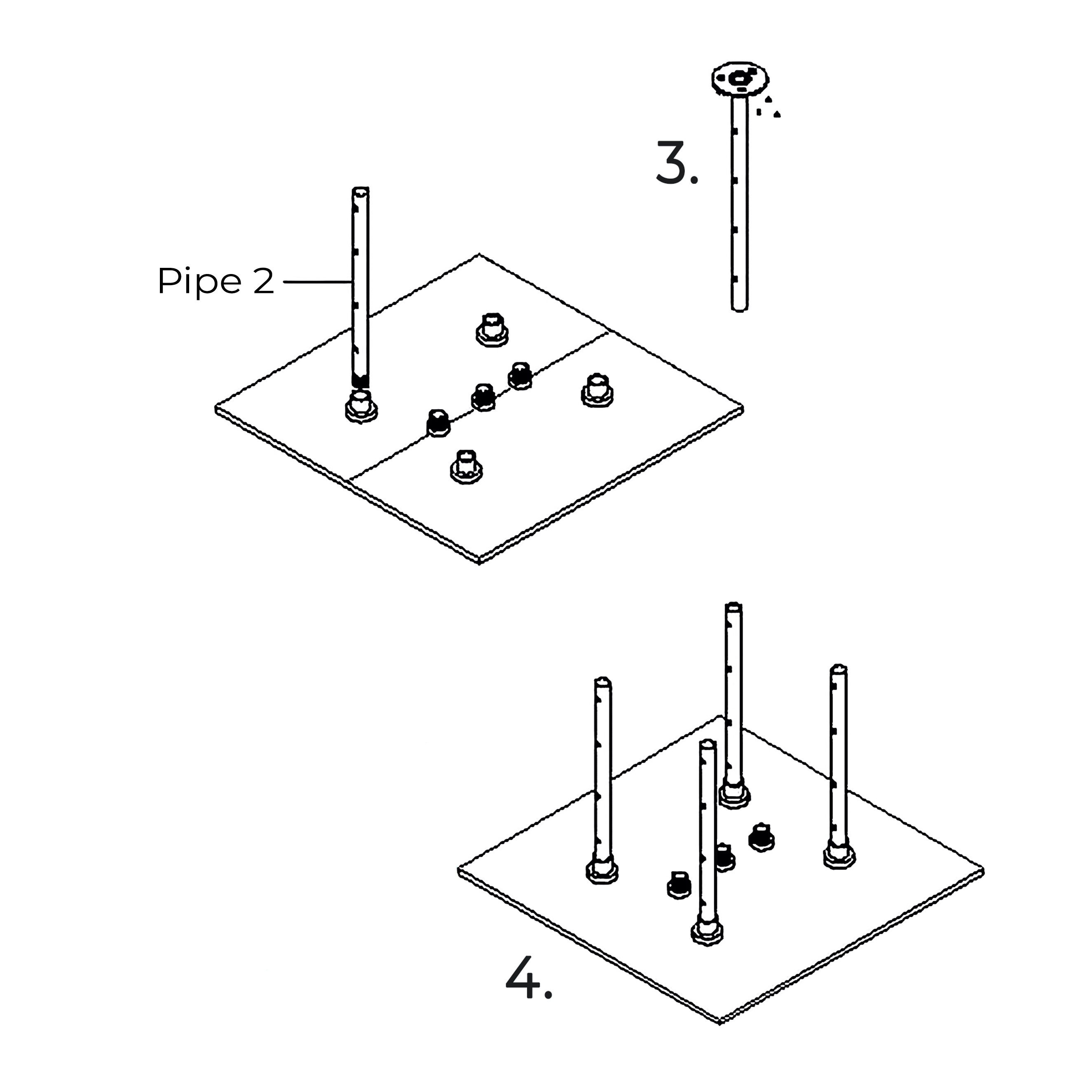

3. Drill the holes on the ceiling according to the above hole specification and install 4 pipes.
4. According to right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.

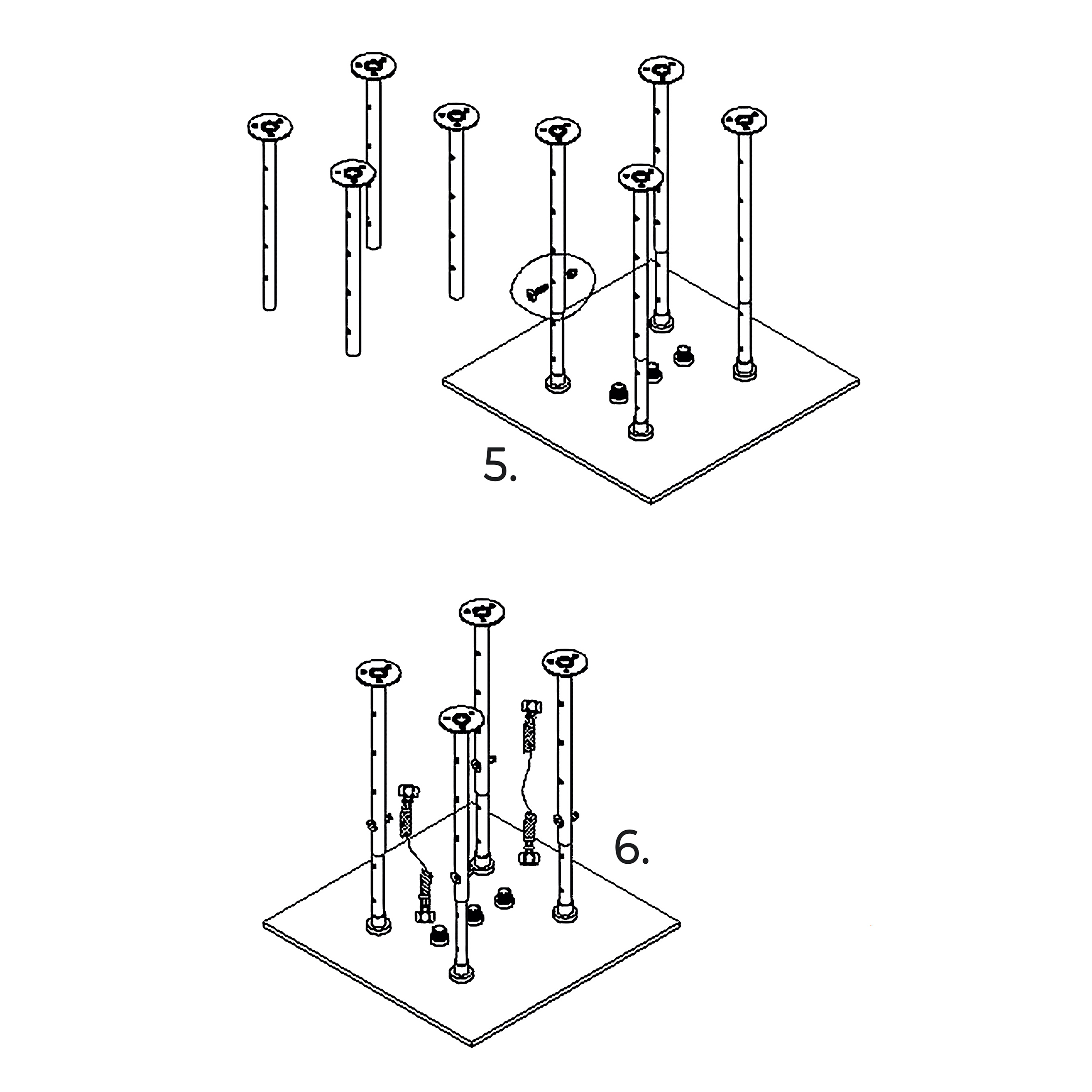

5. As the right drawing shown, install four-pipe 2 on the head shower.
6. After fixing the showerhead on the ceiling, connect the shower hose with 2 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.
Remarks: Ceiling mounted shower head come with fixing bar installation
1. Draw size on ceiling
2. Install fixing bar on ceiling
3. Install fixing bar on shower head
4. Put shower head bar on ceiling fixing bar.
The showerhead installation is now complete.

Hand-Held Shower Instructions



Step 1: Step 2: Step 3 & 4:
Hand
Held
Shower
Hand
Held
Shower
Handheld Shower Handheld Shower Handheld Shower
Step 5: Step 6 & 7: Step 8:

Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations.
Holes must be vertically aligned.
3. ANCHOR INSTALLATION
Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.
4. WALL MOUNT INSTALLATION
Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall.
Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)
5. DROP ELBOW & HOSE INSTALLATION
Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall.
The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall.
Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).
6. UNIT STARTUP
Turn on hot and cold water supplies, and check all connections for leaks.
7. FINAL FLUSHING
For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes.
Allow water to run for several minutes until all foreign matter clears the line.
8. SHOWER ARM INSTALLATION
Place Rubber Seal (A) inside Tapered Hose Fitting (B). Conned Hand Shower (C) to Hose (D) by turning Tapered Hose Fitting (B ) clockwise.

Shower Mixer Installation Instructions



Step 1

mixer Step 2


Shower Body Jets Installation




Step 1: Step 2: Step 3:

Body
Sprays
Body
Sprays
Set the decorative cover on the body jet. Roll the raw material belt in the thread screws.
Use a wrench to tighten 6 body jets on
the water outlet holes in a clockwise direction.
