Shower Head Installation Instructions for BathSelect Brushed Gold Sensor Controlled Automatic Shower Set

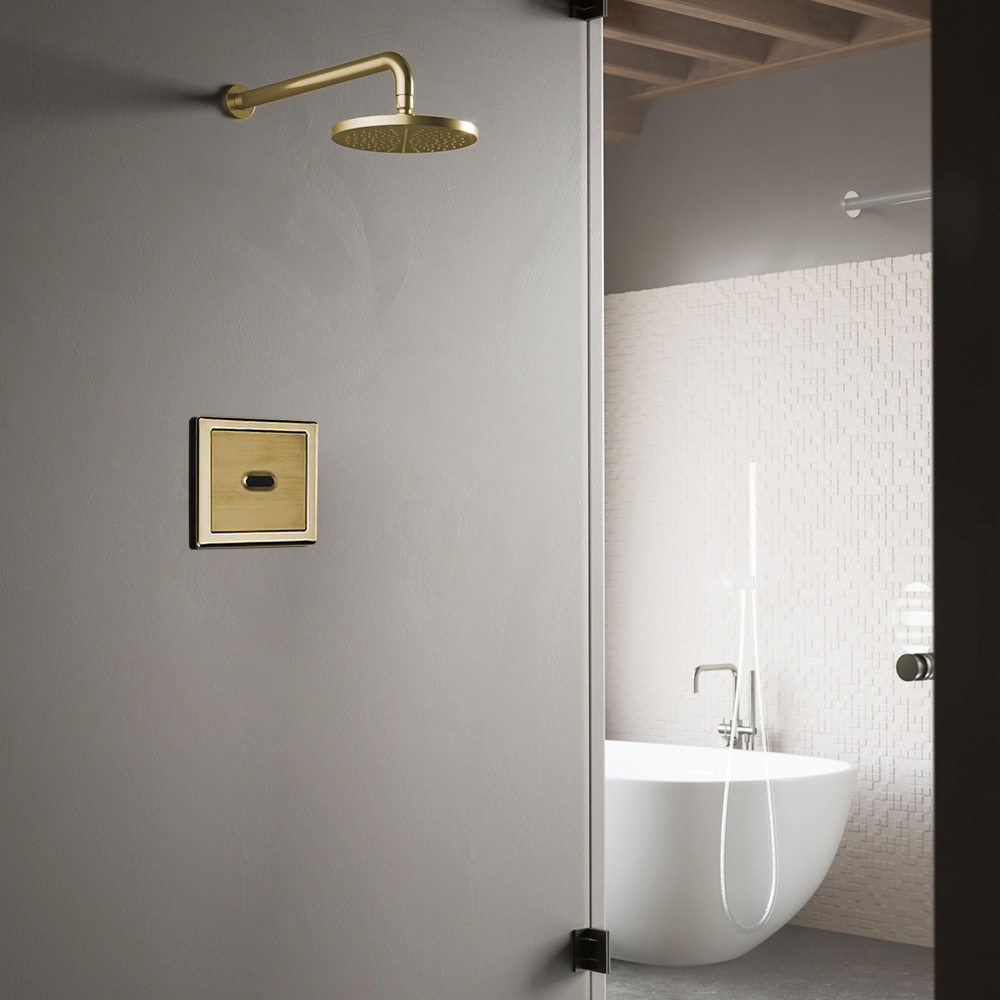

Brushed Gold Sensor Controlled Automatic Shower Set

This shower will automatically shut off after being used for more than 2 minutes. The sensor features a low battery level indicator.Touch-free electronic shower control: The shower is activated automatically when the user steps within the sensor range. No need to have a valve to turn off after bathing. Water-efficient faucet reduces overall water usage without sacrificing water pressure. It is very convenient and clean. Gold finished Solid brass construction for reliability and long-lasting performance. Enables users to have a shower without touching the shower control, saves water, prevents cross-contamination and keeps the showers cleaner, especially ideal for spas, hotels, and care homes.

    Brushed Gold Sensor Controlled Automatic Shower Set Features:

    • Easy to install and retrofit product
    • Material: Solid all-brass construction
    • 3 products in 1: replace the mixer shower, the thermostatic mixing valve and operates by an infrared sensor.
    • Vandal-resistant stopper cup upon request
    • Hidden wall mounting screws for security
    • State-of-the-art design
    • Motion Touchless Operation
    • Sensitive Sensor with Infrared AI Smart-Chip
    • Fit for residential or commercial use applications.
    • Factory set to 30-second Auto Shutoff (can be adjusted).
    • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
    • Solid Brass Construction, Brushed Gold Finish
    • Easy to Install - Instructions Included
    • Water-resistant solenoid enclosure
    • Advanced energy-saving design for long-lasting battery life
    • Power Supply: AC110V And DC6V (batteries not included)
    • AC/DC power option.
    • ADA Complaint
    • Easily can be installed in new or retrofit applications.
    BathSelect Brushed Gold Sensor Controlled Automatic Shower Set

    BathSelect® Manufacturer Warranty Information
    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided
    shower shower

    Shower Head Installation Instructions


    Shower Head Parts Included:
    • Wall Mounting Arm
    • Locking nut
    • Wall trim
    • Shower arm
    • Showerhead
    • Fixing screws and wall plugs (not shown)

    Step 1: Step 2: Step 3:
    Wall Mount Round Showerhead Showerhead Showerhead
    Wall Mount Round Showerhead
    Step 4: Step 5: Step 6:
    Wall Mount Round Showerhead


    • Use your hands counter clockwise to unscrew the old showerhead and removed it.
    • Take out the showerhead, make sure the shower filter is placed in the connector.
    • Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
    • Use your hands clockwise to tighten showerhead.
    • Insert the long end of the shower arm (2) through the flange (1) and wrap plumbers’ tape around the threaded end of the shower arm (2) in a clockwise direction, as shown. Screw the shower arm into pipe elbow inside of the wall.
    • Install new shower head on the shower arm. Thread the ball onto the shower arm clockwise.

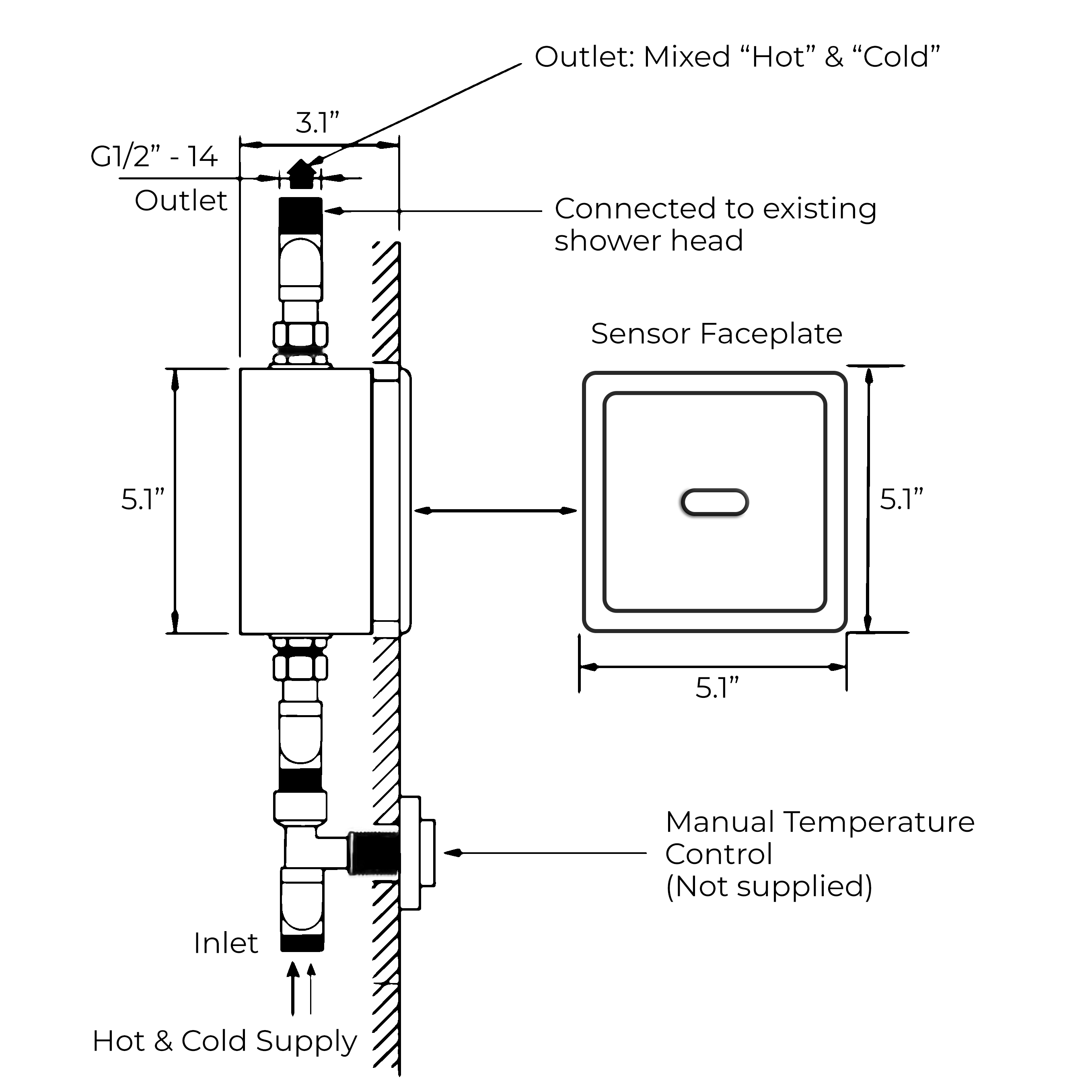

    Sensor Installation Instructions


    Automatic shower sensor
    Simple and easy steps for installing an automatic shower
