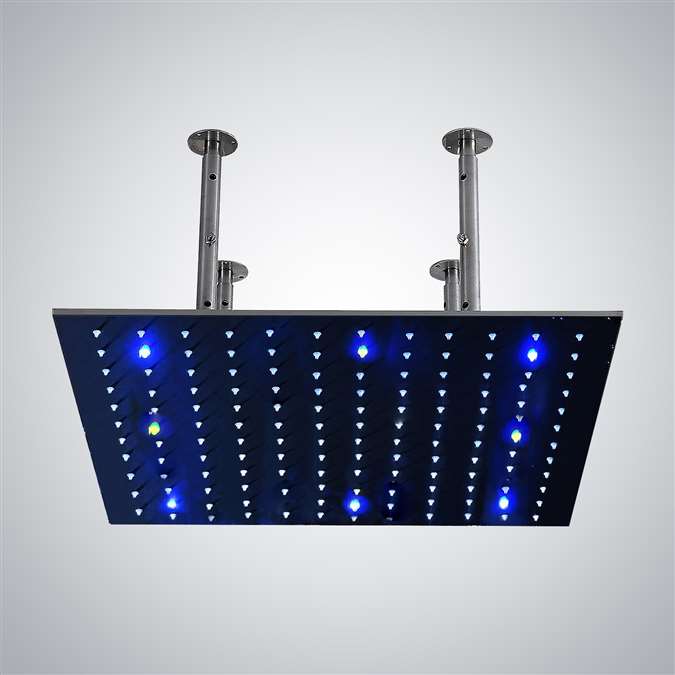

Leo Juno 24 Inch Stainless Steel Square Multi Color LED Rain Shower Head

Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs.

Leo Juno 24 Inch Stainless Steel Square Shower Head Features:

  • The 24 Inch rain shower head flow rate is 7-8L/Min.
  • All mounting hardware are included; Comes with 4 Stainless Steel shower arm & 24 shower head Comes with O-rings, screws ...ready to install!
  • This high tech rain shower head powers the LED lights using a built in hidden dynamo
  • The lights will automatically turn on when water pressure is turned on
  • The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water and light
  • The shower head will automatically change colors according to the temperature of the water so you always know how the water will feel on your skin just by looking at it
  • Never be scalded again by entering a shower that is just too hot
  • Shower arm 4 sets stainless steel are included.
  • Modern stylish design completely brushed stainless steel made to match or stand out from your other bathroom fixtures
  • High quality this modern shower head is made out of stainless steel, so it's made to last!

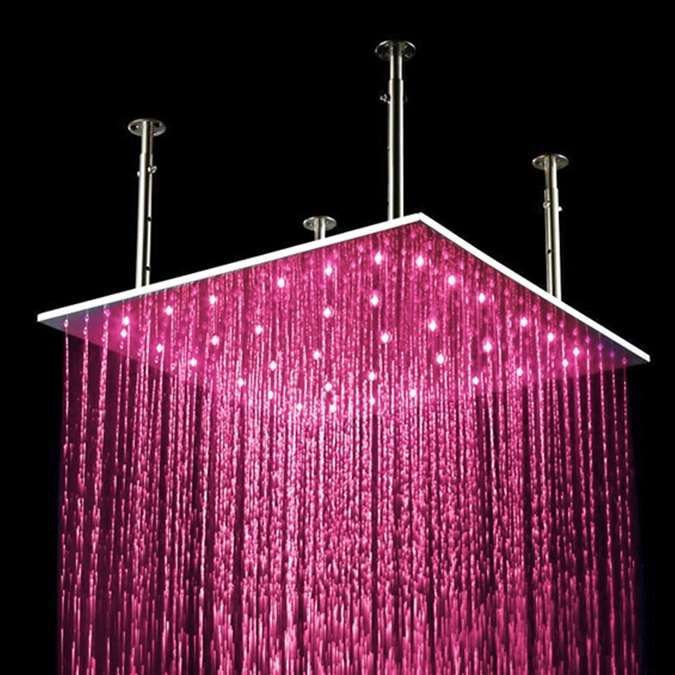

BathSelect 24" Multi Color Water Powered Led Ceiling Mount Shower Head Available In Chrome, Brushed Nicke And Gold Finish

Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs.

This 24 Rain Shower head is available in Brushed Nickel, Chrome and Gold Finish

Technical Details of Juno 24" Multi Color Water Powered Led Ceiling Mount Shower Head Available in Chrome, Brushed Nicke and Gold finish

Material Stainless Steel
Finish Available in Chrome, Brushed Nickel and Gold finish
Style Contemporary Rain Showerhead
Showerhead Height (thickness) 0.33
Showerhead Width 24" (600mm)
Showerhead Length 24" (600mm)
LED Power Source Water Flow
LED Color Blue, Green, Red


led-light-rain-shower-head-ceiling-mount BathSelect 24" Multi Color Water Powered Led Ceiling Mount Shower Head Available in Chrome, Brushed Nicke and Gold finish
BathSelect® Manufacturer Warranty Information

Installation Instructions For Multi Color Water Powered Led Ceiling Mount Shower Head Multi Color Water Powered Led Ceiling Mount Shower Head





Hole size on ceiling
1. Drawing the line on the ceiling according above specification
Decorative Cover
Pipe 1
2. Connect pipe 1 with decorative cover


3. Drill the holes on the ceiling according to above hole specification and install 4 pipes.
4. According right drawing, install four-pipe 2 into pipe 1. Put the screw bolts through the hole on the side to lock pipe 2 with pipe 1.


5. As the right drawing shown, install four-pipe 2 on the head shower.
6. After fixing the showerhead on the ceiling, connect the shower hose with 2 water inlet on the showerhead back cover. The other end connect with the water outlet pipe in the wall.


5.
As the right drawing is shown, install four-pipe 2 on the head shower.
6. After fixing the showerhead on the ceiling, connect the shower hose with 4 water inlet on the showerhead back cover. The other end connects with the water outlet pipe in the wall.



Remarks: Ceiling mounted shower head come with fixing bar installation
1. Draw size on ceiling
2. Install fixing bar on ceiling



3. Install fixing bar on shower head



4. Put shower head bar on ceiling fixing bar.
The showerhead installation is now complete.
