How to Install Erie Sensor Controlled Automatic Shower Head | BST301BAC-DC


Automatic Sensor Shower Head

The shower will automatically shut off after being used for more than 2 minutes. The sensor features a low battery level indicator. Touch-free electronic shower control: The shower is activated automatically when the user steps within the sensor range. No need to have a valve to turn off after bathing. Water-efficient faucet reduces overall water usage without sacrificing water pressure. It is very convenient and clean. Chrome finished Solid brass construction for reliability and long-lasting performance. Enables users to have a shower without touching the shower control, saves water, prevents cross-contamination and keeps the showers cleaner, especially ideal for spas, hotels, and care homes.

Features:

  • Easy to install and retrofit product
  • Material: Solid all-brass construction
  • 3 products in 1: replace the mixer shower, the thermostatic mixing valve and operates by an infrared sensor.
  • Vandal-resistant stopper cup upon request
  • Hidden wall mounting screws for security
  • State-of-the-art design
  • Motion Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Fit for residential or commercial use applications.
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Polished Chrome Finish
  • Easy to Install - Instructions Included
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Complaint
  • Easily can be installed in new or retrofit applications.

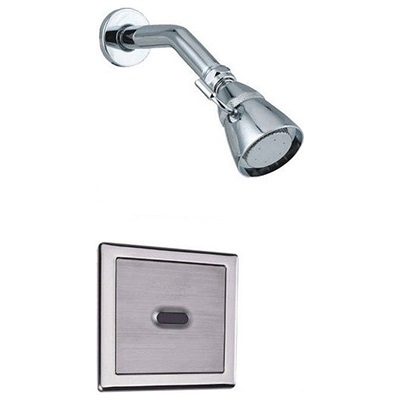

shower Erie Sensor Controlled Automatic Shower Head


Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions

    Step 1: shower installation Step 2:


    Place the Escutcheon Plate on a flat surface. Push the long end of the Shower Arm down into the plate. This will help the teeth of the plate slide over the arm easier.

    Step 3: Step 4:

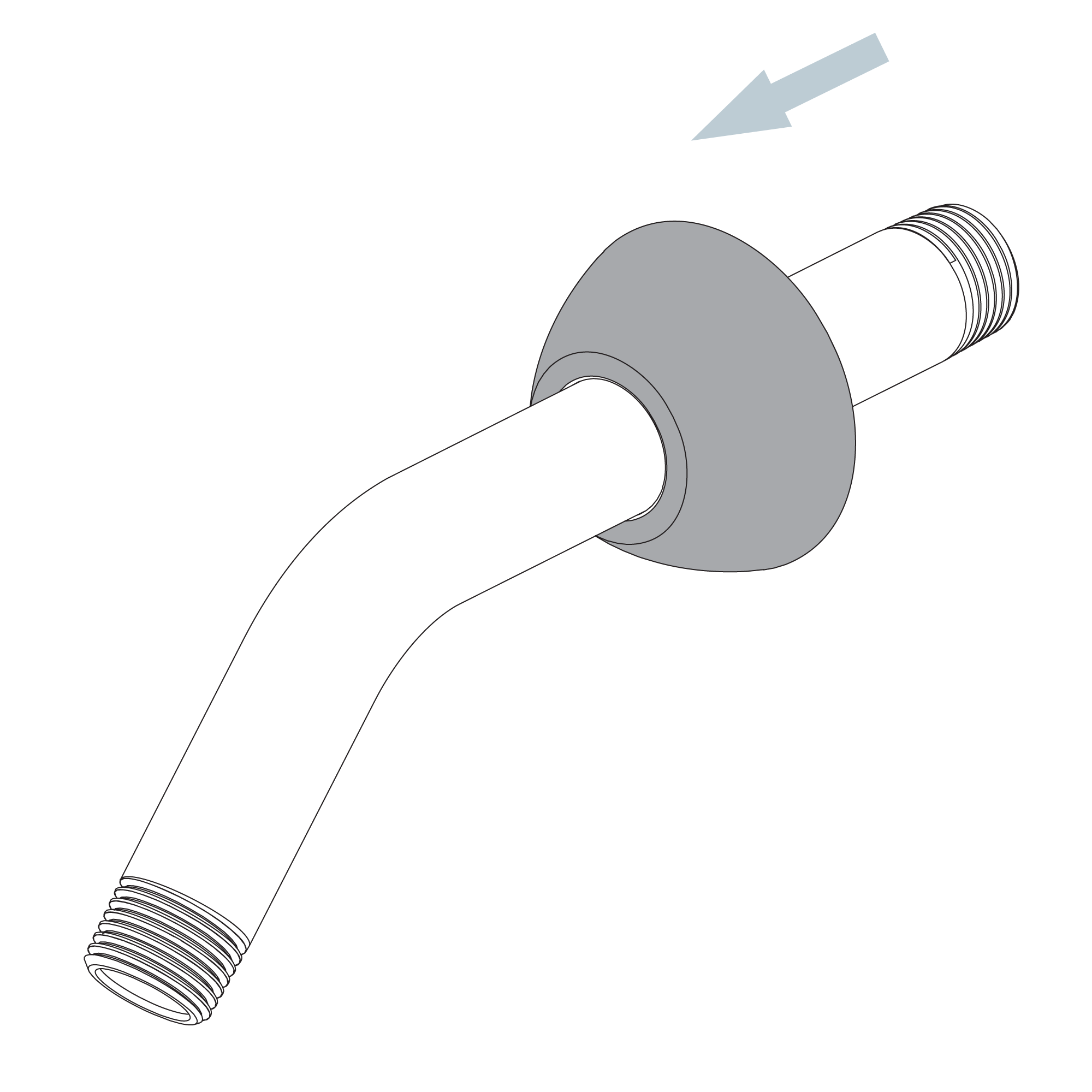

    Once the Escutcheon Plate is on the shower arm, slide the plate over the Shower Arm.
    Apply Teflon Tape to the inlet side of Shower Arm. Thread Shower Arm into Female Pipe Fitting within the wall. Firmly tighten, and make sure Shower Arm Outlet is pointing in a downward position.

    Step 5: Step 6:
    Position Escutcheon Plate flat against the wall.

    Apply Teflon Tape to the outlet side of the shower arm in a clockwise direction.

    Step 7: Step 8:

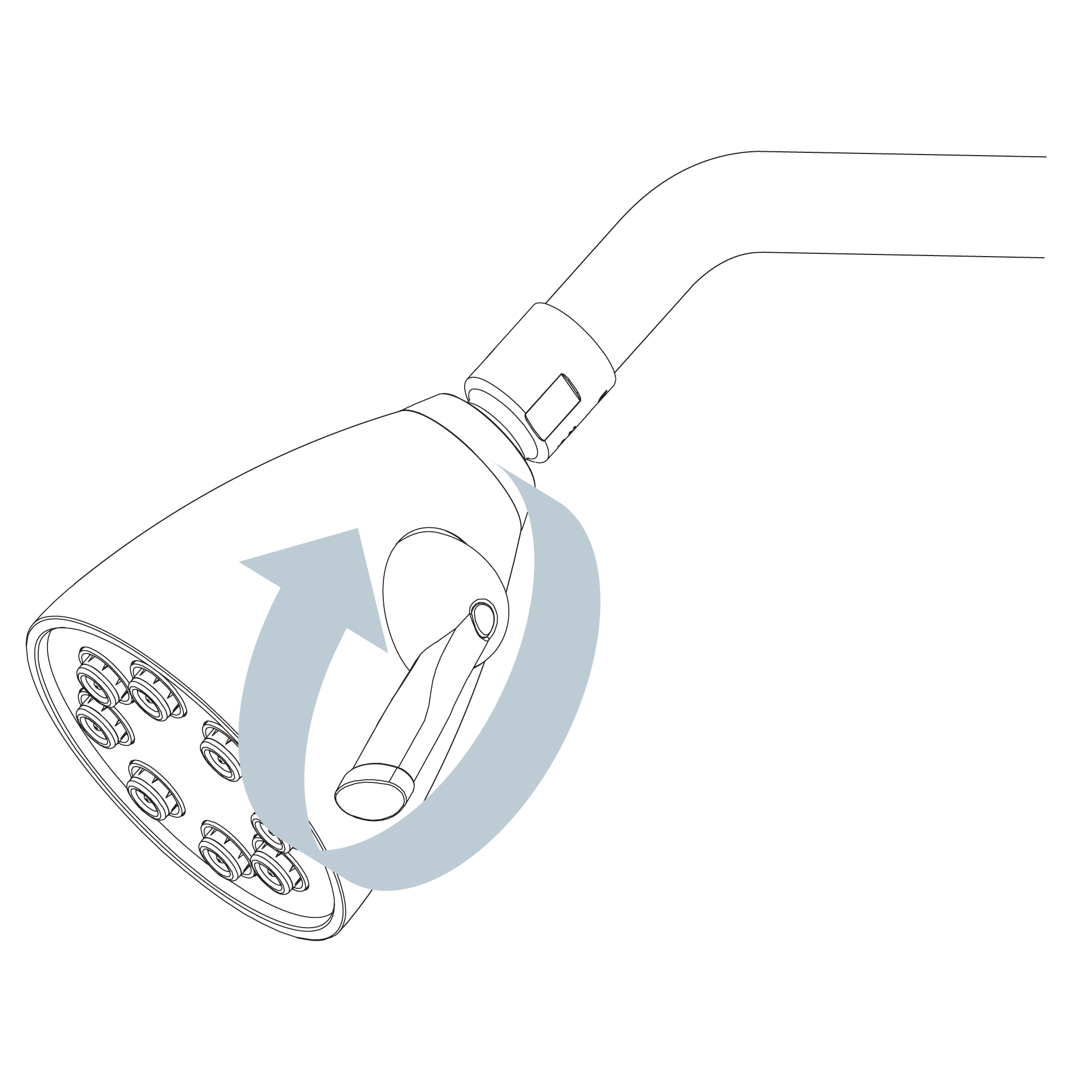

    Thread Showerhead onto shower arm by turning it in a clockwise direction. Tighten with an adjustable wrench. Turn the water supply on and check for leaks.
