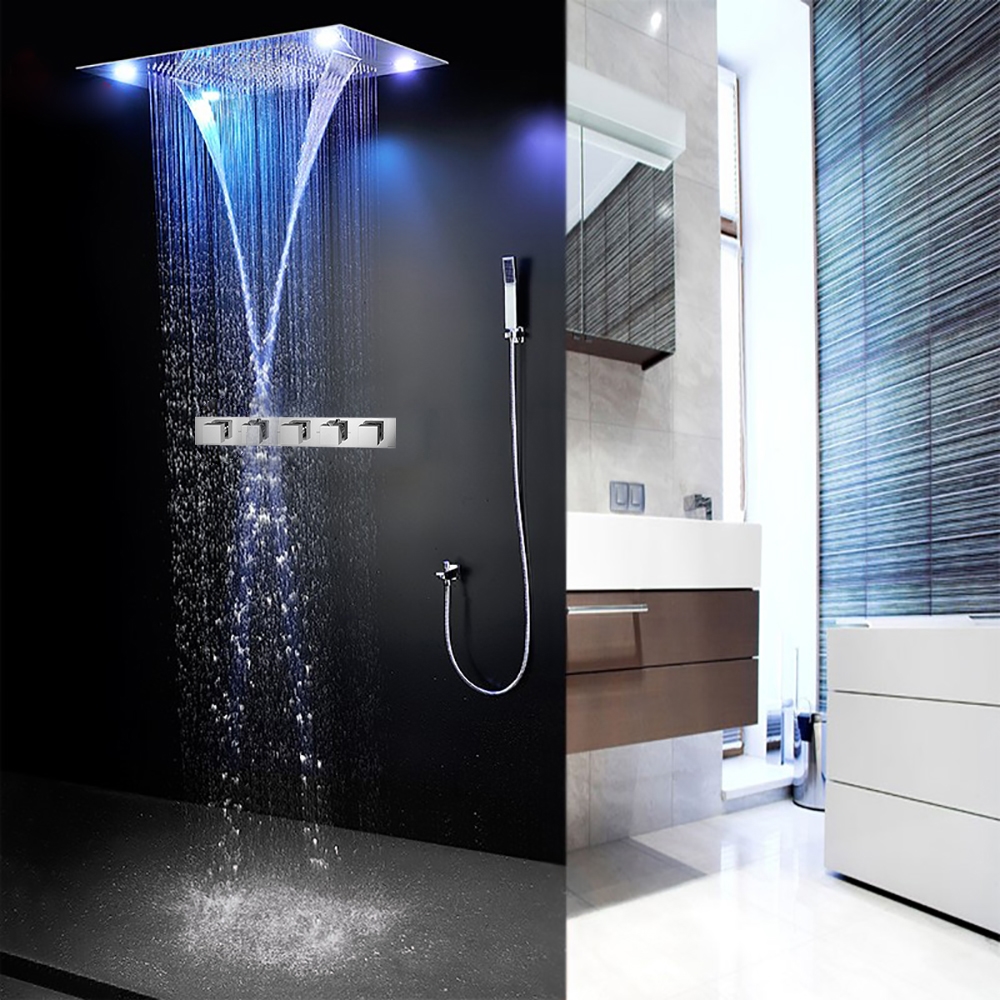

HOW TO INSTALL 31" STAINLESS STEEL MULTI COLOR WATER POWERED LED SHOWER | ZBD017-7


Turn on the fun in your shower just by turning on the water, the LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs.

Features: Visit Product Page
  • This high tech rain shower head powers the LED lights using a built in hidden dynamo
  • The lights will automatically turn on when water pressure is turned on
  • The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water and light
  • The shower head will automatically change colors according to the temperature of the water so you always know how the water will feel on your skin just by looking at it
  • Comes with solid brass mixer Optional (see options)
  • Never be scalded again by entering a shower that is just too hot
  • The threading is universal so it will fit any standard shower head by simply unscrewing the old one by hand and attaching the new one.
  • Modern stylish design made to match or stand out from your other bathroom fixtures
  • High quality this modern shower head is made out of stainless steel, so it's made to last!
  • The flow rate is 2.5 GPM
  • shower31" STAINLESS STEEL MULTI COLOR WATER POWERED LED SHOWER

    Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the products for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions

    Procuct size: 24” 31.5” 4”
    Color : remote control color electric power
    Valve: brass thermostatic shower mixer valve
    Function: rainfall,waterfall, rain curtain and body jet
    Finish: mirror finished
    Shower head material: 304 stainless steel
    Hand shower: brass chrome plated
    Lateral jet: all copper chrome plated
    Installation: embeded ceiling

    Step 1: Step 2:
    shower
    LED Shower Head Installation Instructions
    Step 3: Step 4:
    According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling. According to the 8 mounting holes on the mounting bracket, use an Electric drill to make the mounting holes.
    Shower Head Installation Instructions
    Step 5: Step 6:
    Using the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level.
    Use an explosion screw to fix the mounting bracket on the ceiling, pay attention to the explosion screw, it can adjust the height and use level tool to adjust the mounting bracket to reach level.
    Connecting Circuits





    Shower Head Installation Instructions
    Step 7: Step 8:
    According to the chart shows: Raise the showerhead, Aim at the hole of the bolt, plug the bolt.





    Use a Phillips screwdriver screw out the upper cover 4 screws, open the plastic waterproof boxes.
    Note: The same color line docking, brown line for line, the blue line is zero line. Use a Phillips screwdriver screw out the screws in plastic waterproof box wiring position, then put the fork terminal line connected, then fix it with a Phillips screwdriver.

    Shower Head Installation Instructions
    Step 9: Step 10:
    According to the circuit diagram as shown in step 5, then connect plastic waterproof case, please note that the same color of the wire when connecting circuit to docking. Connecting water hoses and Tee joints and then connect the water hoses to the water inlet pipe connector.
    LED Shower Head Installation Instructions
