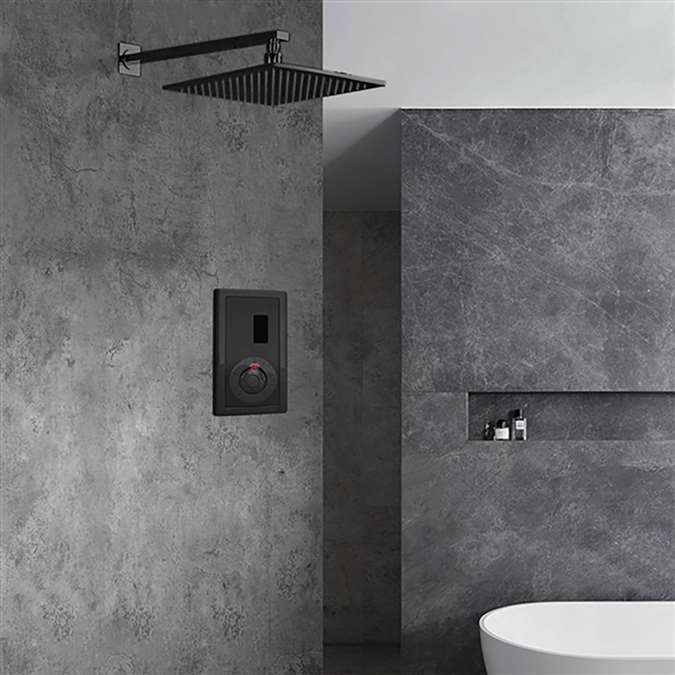

Home > Dark Oil Rubbed Bronze Sensor Controlled Automatic Shower Set Installation Instructions

How to install a dark oil rubbed bronze automatic shower set



  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided
showershowerDark Oil Rubbed Bronze Sensor Controlled Automatic Shower Set

Shower Head Installation Instructions


Tools and Materials Required
  • Adjustable Wrench
  • Plumber’s Tape
  • Dry Cloth
  • Screwdriver
  • Silicone Sealant
shower

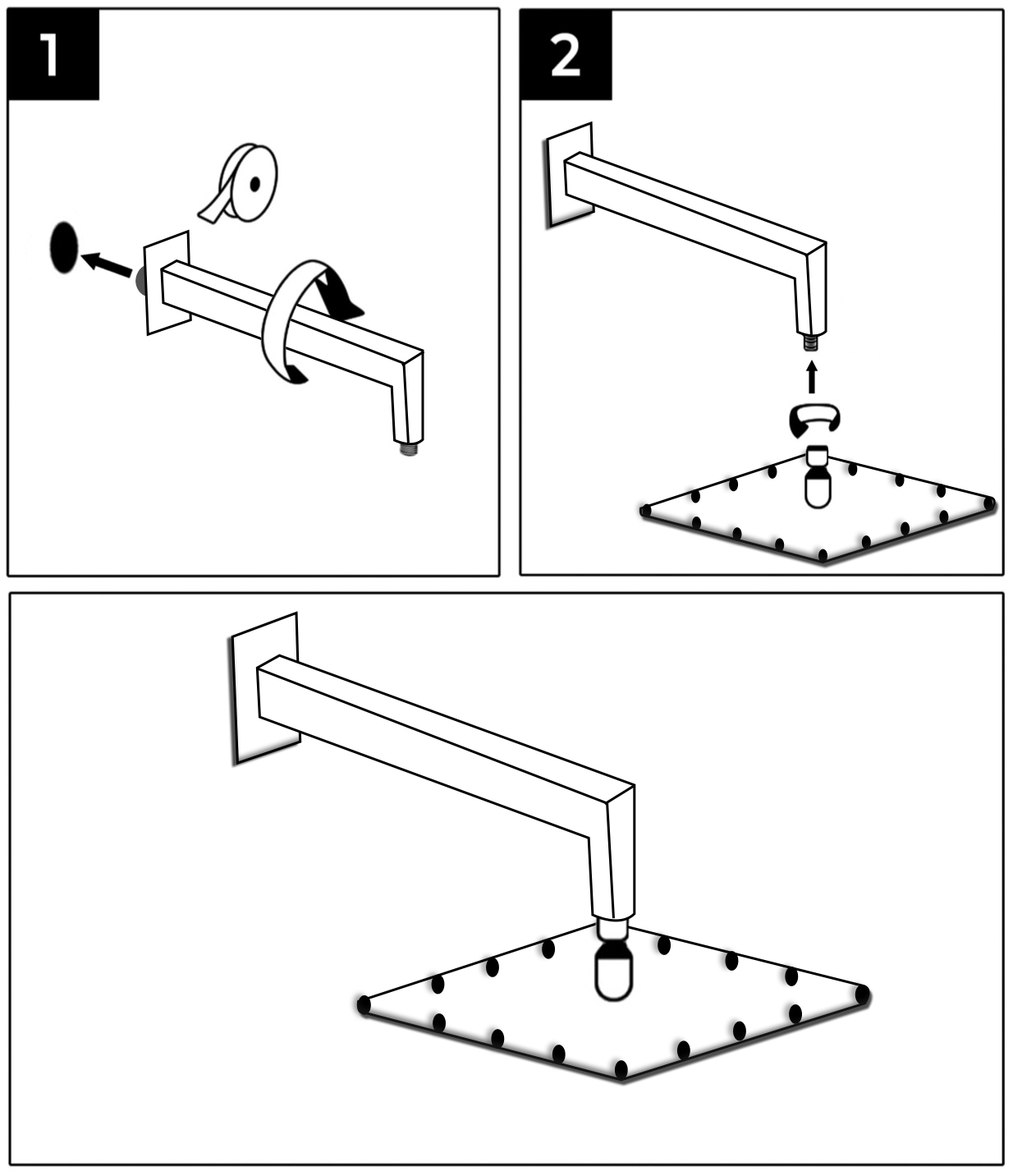

Step 1

Step 2

Step 3

Step 4




  • Use your hands counter clockwise to unscrew the old showerhead and removed it.
  • Take out the showerhead, make sure the shower filter is placed in the connector.
  • Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
  • Use your hands clockwise to tighten showerhead.
  • Insert the long end of the shower arm (2) through the flange (1) and wrap plumbers’ tape around the threaded end of the shower arm (2) in a clockwise direction, as shown. Screw the shower arm into pipe elbow inside of the wall.
  • Install new shower head on shower arm. Thread the ball onto the shower arm clockwise.
