How to install Brushed Gold Round Shower Head With Concealed Mixer And Handheld Shower
Brushed Gold Round Shower Head With Concealed Thermostatic Mixer And Handheld Shower
This BathSelect stainless shower set is the perfect choice for a bathroom that takes a contemporary yet minimalistic approach to design. It has a streamlined look and appeal, and the wonderful and sleek brushed brass finish sure adds a modern twist to the shower set. Enhance your bathroom with Brushed Gold Round Shower Head With Concealed Mixer And Handheld Shower which comes complete with the round shower head along with four square body jets and the thermostatic shower valve and a hand held shower. Its rainfall effect experience makes showering experience more soothing and relaxing. Its optimum design and innovative technology allow for voluminous soft droplets to make your showering experience a fun one. This shower set has been made with premium grade lightweight. Water flow capacity is around 10-60 L/min. The valve core material is a high quality of ceramic. It is ceiling wall shower head. Functions overview are Intelligence constant temperature, brass, large flow temperature water mixing, side spray, free switching spray, corrosion resistant. The Brushed Gold Round Shower Head With Concealed Mixer And Handheld Shower can make you experience the true feeling of rain, as well as SPA body massage spray, relieving fatigue and stress. It is your best choice, a choice to enjoy life.
Brushed Gold Round Shower Head With Concealed Mixer And Handheld
Shower Specifications
- Type: Bathroom Shower Set
- Product Code: BST10239
- Product Brand: BathSelect
- Installation Mount: Embedded Wall Mount
- Installation Type: US Standard
- Fixed Support: Yes
- Style: Contemporary
- Color: Brushed Gold
- Shape: Round
- Material: Brass
- Customization : Yes
- Shower Water Flow: 10-60 L/min
- Valve Core Material: Ceramic
- Surface Finish: Brushed
- Function:Body Massage
|
|
BathSelect® Manufacturer Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
|
shower
|
Shower
|
|
Shower Head Installation Instructions
|
Shower Head Parts Included:
- Wall Mounting Arm
- Locking nut
- Wall trim
- Shower arm
- Showerhead
- Fixing screws and wall plugs (not shown)
|
|
|
|
|
|
|
Step 1:
|
|
Step 2:
|
|
Step 3:
|
|
|
Wall Mount Round Showerhead
|
Showerhead
|
|
Showerhead
|
|
|
|
|
|
|
|
|
|
Wall Mount Round Showerhead
|
|
|
|
|
|
|
Step 4:
|
|
Step 5:
|
|
Step 6:
|
|
|
Wall Mount Round Showerhead
|
|
|
|
|
|
|
|
|
|
|
|
1. Remove the old shower head by using the channel lock pliers or monkey wrench.
Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.)
2. Remove the shower arm by turning it by hand counter-clockwise.
Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy)
3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads,
go all the way around 3 or 4 times depending on the quality of the Teflon tape.
4. Install the new shower arm by going clockwise by hand until it is tight,
then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench.
5. Place Teflon tape around the threads on the shower head and then place the shower head
onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.
HandHeld Shower Installation Instructions
Hand-Held Shower Installation Instructions
HandHeld Shower Installation Instructions
|

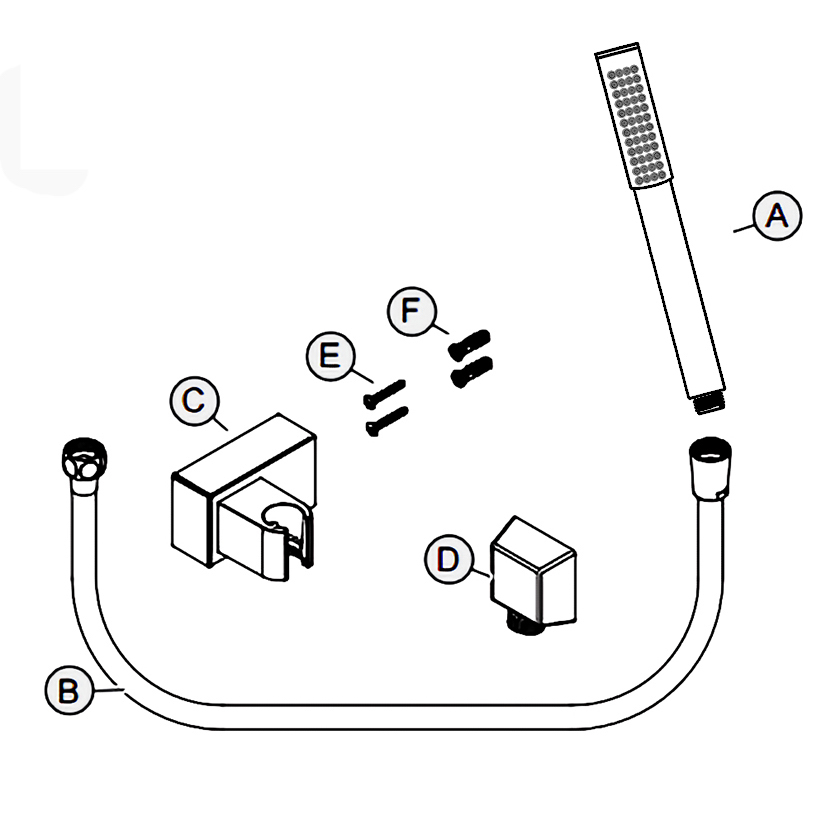

Step 1:
|
|
Step 2:
|
|
Step 3 & 4:
|
|
Hand
Held
Shower
|
|
Hand
Held
Shower
|
|
|
Handheld Shower
|
|
Handheld Shower
|
|
Handheld Shower
|
|
Step 5:
|
|
Step 6 & 7:
|
|
Step 8:
|
|
|
|
|
|
2. HOLE LOCATIONS FOR WALL MOUNT
Remove Front Cover (A) from Wall Mount (B). Use Wall Mount Screw Holes (C) to place the desired location. Using a punch or awl, tap the screw hole locations.
Holes must be vertically aligned.
3. ANCHOR INSTALLATION
Drill two 1/4” dia. Holes (A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (B). Insert Anchors (B) into Holes (A) and tap flush with the wall.
4. WALL MOUNT INSTALLATION
Place Wall Mount (A) into wall and inset Mounting Screws (B) through Wall Mount Holes (C) and tighten until Wall Mount (A) is flush with the wall.
Do Not Over Tighten! Insert Front Cover (D) into Wall Mount (A)
5. DROP ELBOW & HOSE INSTALLATION
Apply PTFE plumbers tape on both ends of Pipe Nipple (A) (not included). Screw Pipe Nipple (A) into the elbow inside the wall.
The Pipe Nipple (A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (B) onto Pipe Nipple (A) and tighten until Drop Elbow (B) is property positioned and flush to the finished wall.
Place Rubber Seal (C) inside Hex Hose Fitting (D). Connect Hex Hose Fitting (D) into Drop Elbow Outlet (E) by turning Hex Hose Fitting (D).
6. UNIT STARTUP
Turn on hot and cold water supplies, and check all connections for leaks.
7. FINAL FLUSHING
For final flushing, turn the valve on and allow water to run through the Hose (A) for several minutes.
Allow water to run for several minutes until all foreign matter clears the line.

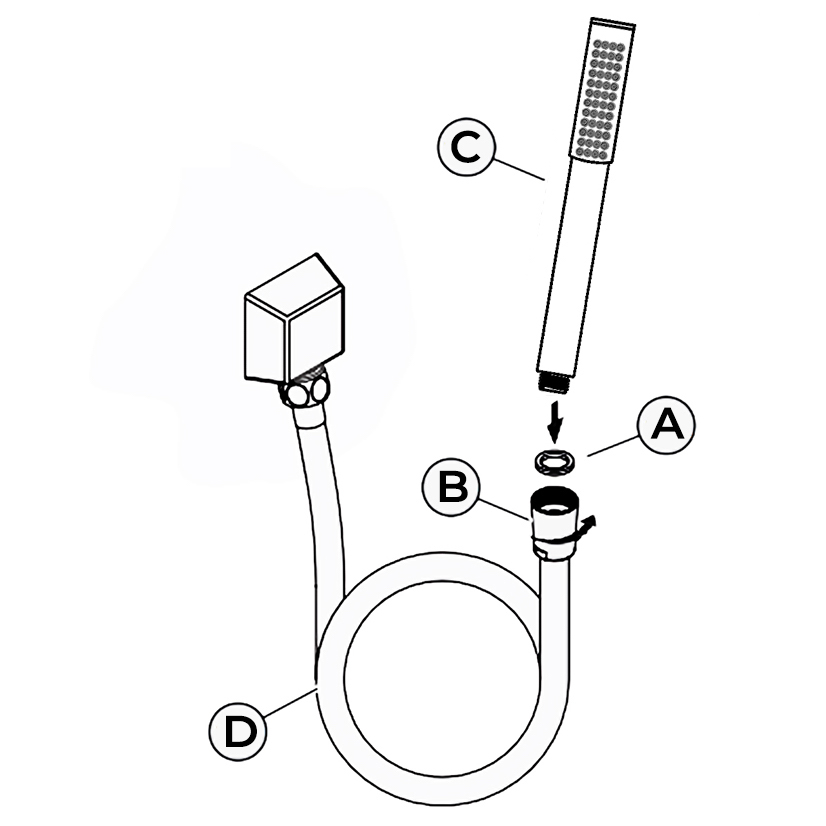

8. SHOWER ARM INSTALLATION
|
