How to install a sensor controlled automatic shower head

Sensor Controlled Automatic Chrome Shower Head

The shower will automatically shut off after being used for more than 2 minutes. The sensor features a low battery level indicator. Touch-free electronic shower control: The shower is activated automatically when the user steps within the sensor range. No need to have a valve to turn off after bathing. Water-efficient faucet reduces overall water usage without sacrificing water pressure. It is very convenient and clean. Chrome finished Solid brass construction for reliability and long-lasting performance. Enables users to have a shower without touching the shower control, saves water, prevents cross-contamination and keeps the showers cleaner, especially ideal for spas, hotels, and care homes.

Sensor Controlled Automatic Chrome Shower Head Features:

  • Easy to install and retrofit product
  • Material: Solid all-brass construction
  • 3 products in 1: replace the mixer shower, the thermostatic mixing valve and operates by an infrared sensor
  • Vandal-resistant stopper cup upon request
  • Hidden wall mounting screws for security
  • State-of-the-art design
  • Motion Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Fit for residential or commercial use applications.
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction, Chrome Finish
  • Easy to Install - Instructions Included
  • Water-resistant solenoid enclosure
  • Advanced energy-saving design for long-lasting battery life
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Complaint
  • Easily can be installed in new or retrofit applications.
Sensor Controlled Automatic Chrome Shower Head

BathSelect® Manufacturer Warranty Information
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided
shower shower

Shower Head & Sensor Mixer Installation Instructions



Shower Head Parts Included:

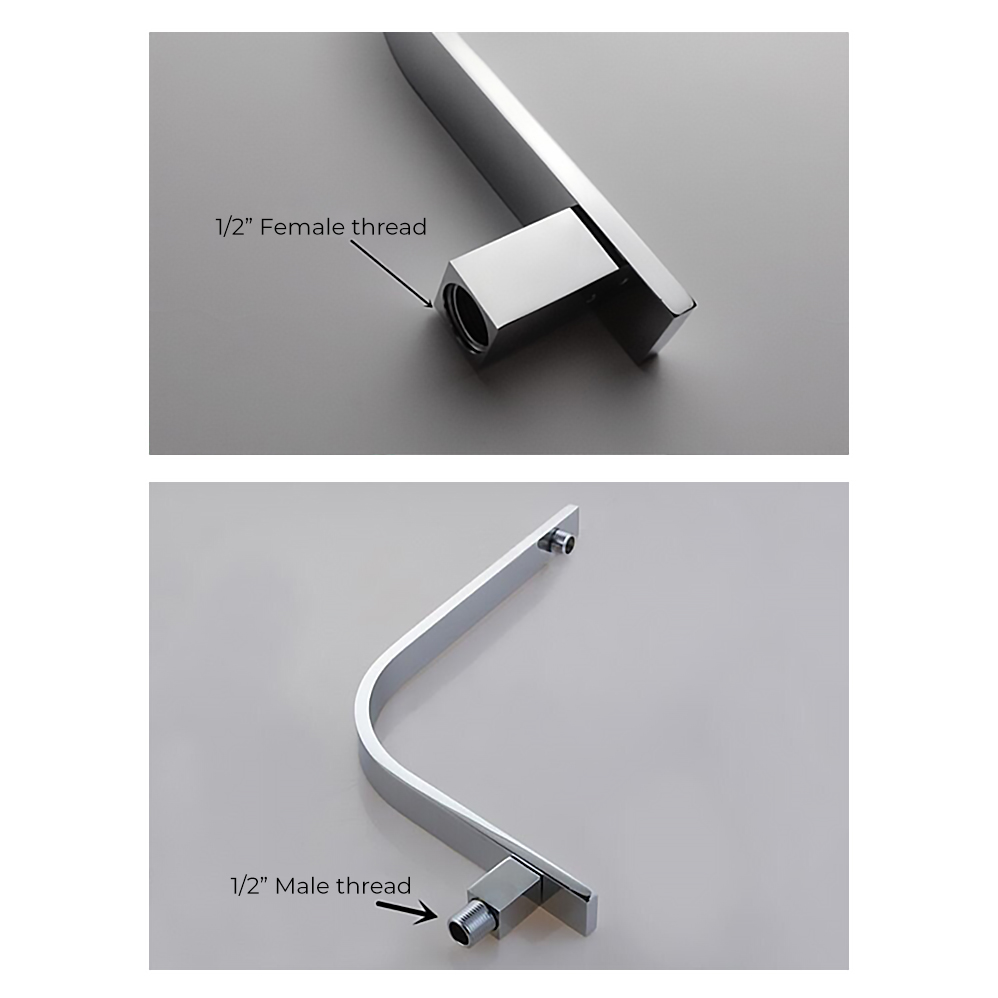

  • Wall Mounting Arm
  • Locking nut
  • Wall trim
  • Shower arm
  • Showerhead
shower Shower Head shower
Step 1

Shower Head
Step 2

Shower Head
Step 3

Shower Head
Step 4

Shower Head
Step 5

Shower Head
Step 6

Shower Head

  • Use your hands counter clockwise to unscrew the old showerhead and removed it.
  • Take out the showerhead, make sure the shower filter is placed in the connector.
  • Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
  • Use your hands clockwise to tighten showerhead.
  • Insert the long end of the shower arm (2) through the flange (1) and wrap plumbers’ tape around the threaded end of the shower arm (2) in a clockwise direction, as shown. Screw the shower arm into a pipe elbow inside of the wall.
  • Install new shower head on the shower arm. Thread the ball onto the shower arm clockwise.
