How to install BathSelect Rainfall Square Shower Head And Hand Held Shower With Body Jet & Thermostatic Mixer Valve In Brushed Gold Finish

Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

shower

Shower

	Shower Head Parts Included: Wall Mounting Arm Locking nut Wall trim Shower arm Showerhead Fixing screws and wall plugs (not shown)

Step 1:			Step 2:		Step 3:
	shower			shower
Step 4:			Step 5:		Step 6:

1. Use your hands counter clockwise to unscrew the old showerhead and removed it.
2. Take out the showerhead, make sure the shower filter is placed in the connector.
3. Ensure the showerhead full horizontal alignment wall mounted shower arm thread.
4. Use your hands clockwise to tighten showerhead.

Step 1:		Step 2:		Step 3:
	hand held shower		Hand

• Open the closed cover of the shower holder and take out the screws.
• Drill two holes size 0.2" (6mm) on the wall according to the hole position of the shower holder.
• Use a hammer to break 2 plastic wall plug into two holes. Tighten the screws with the plastic wall plug and locking with the shower holder. Then install the closed cover.
• Connect the shower hose with the water outlet connection part and hand shower. Plug the hand shower in the shower holder.

Shower Body Jets Installation Instructions

Body Sprays Installation Instructions

Step 1:		Step 2:		Step 3:
	Body Sprays		Body Sprays
Set the decorative cover on the body jet.		Roll the raw material belt in the thread screws.		Use a wrench to tighten 6 body jets on the water outlet holes in a clockwise direction.

Mixer Installation Instructions

Thermostatic Shower Mixer Installation Instructions

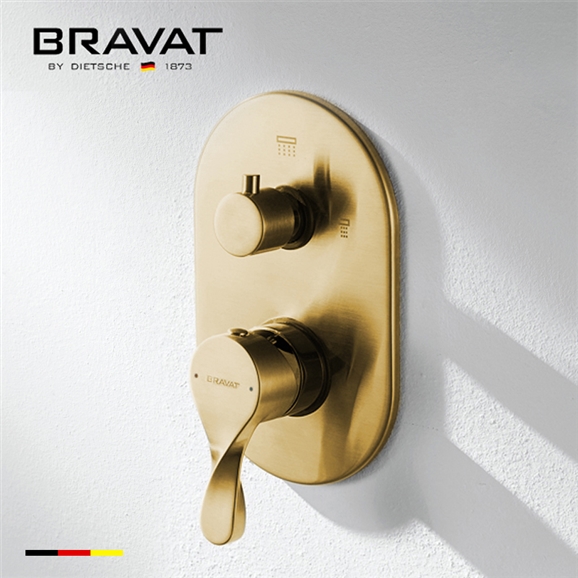

Thermostatic Shower Mixer
Step 1:

	Parts List	Parts List: Shower Valve Hot Water Inlet Cold Water Inlet Diverter Knob Handle Set Screw Allen Key Indication Button Escutcheon

Step 2:		Step 3:
Thermostatic Shower Mixer	Shower Mixer
Shower Mixer

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

Step by step installation instructions for the Shower Set with Wall Mount Round Showerhead, Body Jets, Hand Held Shower and Thermostatic Mixer
