Installation Instructions for Venice Thermostatic Rectangular Recessed Shower Head with LED

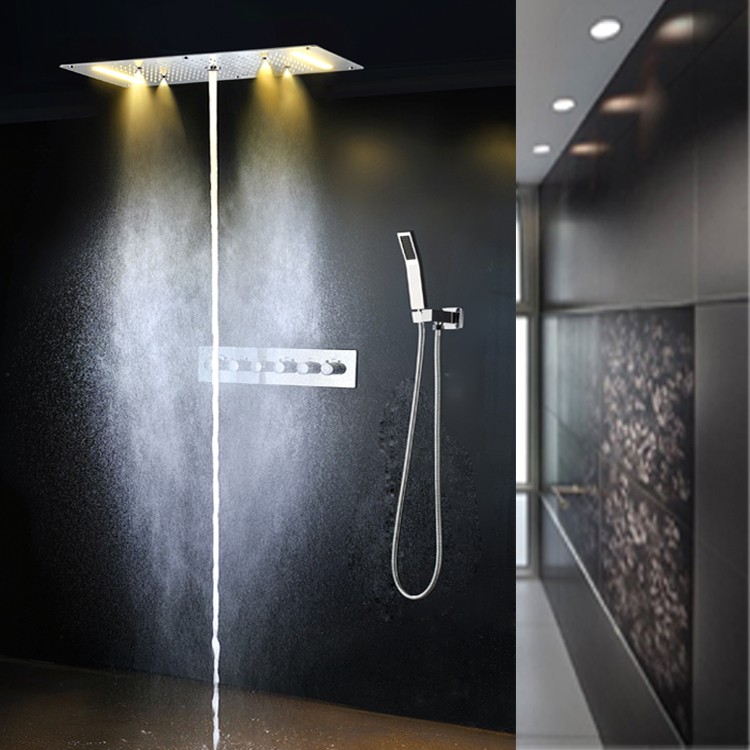

Venice Thermostatic Rectangular Recessed Shower Head with LED
The Venice thermostatic rectangular shower head with LED will let you choose between a ceiling mount shower head and wall mount hand held shower at any time during your bath. The LED light will brighten the bath, while the thermostatic valve will make sure you never get scalded again. This set is made of high quality materials, stainless steel and brass, that guarantee a long lasting life time. It is easy to install, it comes complete with accessories and installation instructions.
Surface Finish : Chrome
Accessories : Shower set
Showerhead Installation Type : Flush Cieling Mount Recessed Shower Head
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower
No.
Name
Quantity
No.
Name
Quantity
1.
Bracket
1
5.
Hexagon Wrench
1
2.
M10 Explosion Screw
4
6.
Power
1
3.
Shower Assembly
1
7.
Water Inlet Connecting Pipe
4
4.
Lock Screws
4
1. Use a hexagon wrench to lose the lock screws then separate the showerhead assembly and bracket.
2. Dig 4 Ø10 holes on the ceiling according to the dimension of the screws.
3. Use a hammer to thwack the 4 screws into 4 holes.
4. Install the bracket on the expansion screws then use copper sleeve wrench to lock 4 screws.
5. Make sure all the water inlet pipe connected well without leaking before insert the power plug into the socket. 6. Fix the shower assembly on the bracket by turn the locking bolt.
<
