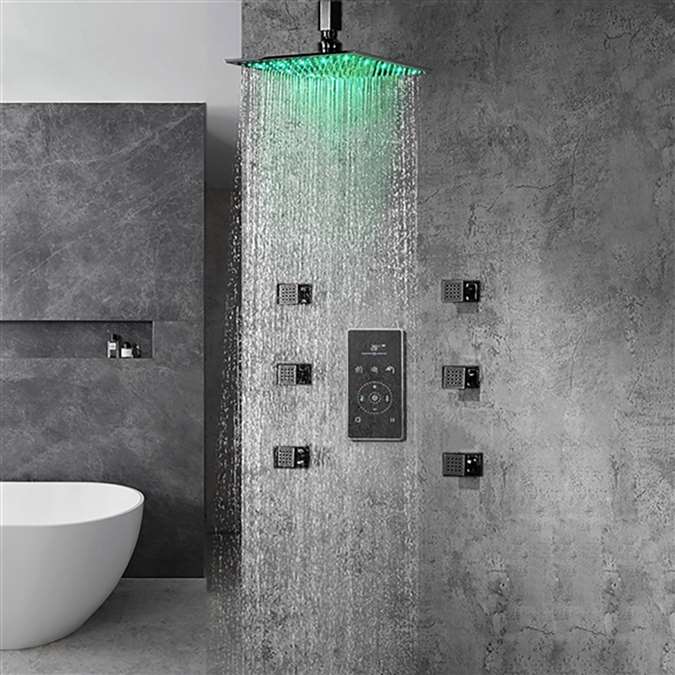

BathSelect Multi Color LED Rain Shower Head With Thermostat LCD Digital Mixer And 360° Adjustable Body Jets
The BathSelect Solid Brass wall Mount Led shower system can experience the true feeling of rain, as well as spa body massage spray, relieving fatigue and stress. It is your best choice, a choice to enjoy life. Just turn on the fun in your shower by simply turning on the water, the led lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. This is a touch screen digital temperature control valve led shower set. When the temperature exceeds 50 degrees will automatically stop working, preventing burns. LED lights can change color with different temperatures automatically. The thermostatic shower system is high flow shower valve, new technological coating layers electroplating to anti-rust, never get rust.
BathSelect Multi Color LED Rain Shower Head With Thermostat LCD Digital Mixer And 360° Adjustable Body Jets Features:
- Brand Name: BathSelect
- Model Number: BST10190
- Type: LED Shower Set
- LED light rain shower head powered: Hidden dynamo
- LED light features: dim and brighten when adjusting the pressure
- Finish: Dark Oil Rubbed Bronze
- Mixer Material: Solid Brass
- Anti-scald
- Threading Fitting: Fit in any standard shower head
- Inclusion: Shower arm
- Installation: Ceiling or Wall Mount arm
- Design: Modern Stylish Design Stainless steel finish
- Shower head Material: Stainless Steel
- Flow rate: 2.5 GPM
- TouchScreen Digital Mixer Installation Instructions
|
|
BathSelect® Manufacturer Warranty Information
Installation Instructions for BathSelect Multi Color LED Rain Shower Set
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided
|
|
Ceiling Shower Head Installation
Multiple Bodyspray Installation
• Water Supply
• Nipple Mamelon Nipple
• Pressure Balancing Loop
1. Route the water supply lines.
2. If installing more than one bodyspray off the same supply line, construct a pressure balancing loop. Locate a tee along the loop at each bodyspray installation location.
3. Do not strap the pipes at this time.
Single Bodyspray Installation
• Nipple Mamelon Nipple
1. Route the water supply line.
2. Install an elbow to the end of the supply pipe at the bodyspray installation location.
Install the Plaster Guard
• Elbow (or Tee)
• Install the plaster guard
Set Piping Depth
Align mark with the front of the stud face
• Thin Wall
Align mark with the front of the stud face
• Standard Wall
Install the plaster guard. Push until the plaster guard is snug against the face of the elbow (or tee).
1. Install the water-resistant wallboard.
2. Cut out a 4" (10.2 cm) to 4-1/4" (10.8 cm) square at each the installation location.
3. Install the finished wall material.
• Escutcheon
• Leak Shield
• Adapter
• Extension
• Socket Wrench With Bit
• Screw
• Waterway Passage
1. Insert the escutcheon into the rough opening. The double ribs of the leak shield should be facing up.
2. If the leak shield makes contact with the elbow: Enlarge the hole in the back of the leak shield to 1-1/4" (3.2 cm).
3. Thread the adapter onto the nipple using the provided 0.4" bit, 11 mm or 7/16" socket, extension and socket wrench. Use masking tape to hold the bit in place, as the bit could fall off and cause damage.
IMPORTANT! The escutcheon should sit loosely at this point. If it is tight against the wall, use a longer pipe nipple.
4. Align the groove in the waterway with the double ribs on the leak shield.
5. Press the waterway into place over the adapter. Secure the waterway to the adapter with the screw provided.
6. Verify that the escutcheon does not turn or shift.
With the ribs of the sprayhead facing up, install the sprayhead to the waterway.
With the ribs of the sprayhead facing up, install the sprayhead to the waterway.
|
