Installation Instructions for Commercial Antique Gold Automatic Sensor Faucet

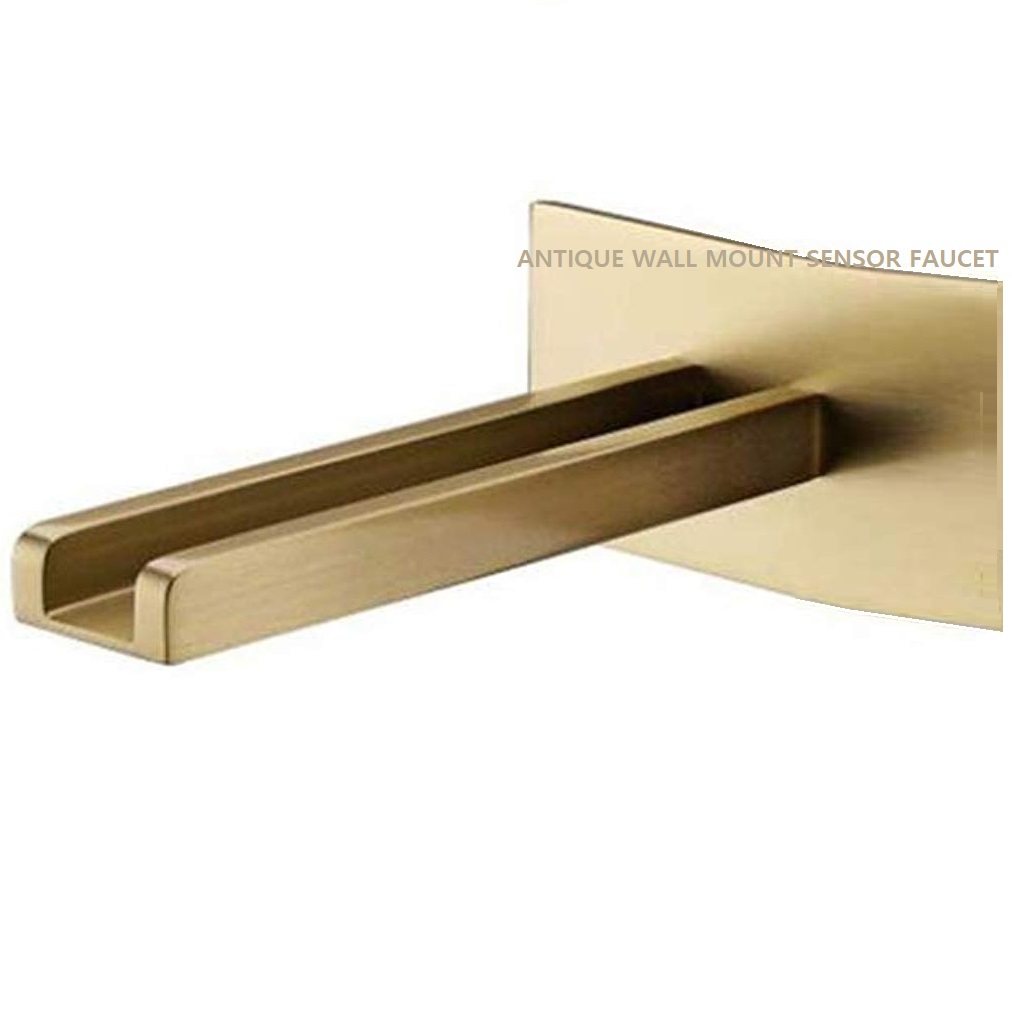

BathSelect Antique Gold Commercial Automatic Motion Sensor Sink Faucet

mira-sale-sensor-faucets

BathSelect Commercial Automatic Sensor Faucet Antique Gold Product Description

Commercial Antique Gold wall mount Bathroom sensor faucets are anti-erosion, anti-abrasion and high strength. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all standard US plumbing.Uses 4AA Alkaline Batteries (purchase separately).Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.This faucet can we used for commercial use

  • Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
  • Solid Brass Construction,
    Antique Gold Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Easily can be installed in new or retrofit applications.
  • Usage: Commercial / Residential

Commercial Antique Gold Automatic Sensor Faucet
Intelligent: with its micro-computer controlling its action, the faucet can self adjust its best detection zone as per the color and shape of lavatory!Sensor Faucet finish is polished chrome, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation.

Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles.Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Commercial Antique Gold Sensor Activated Faucet Special Features:

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Applications: Commercial Antique Gold Automatic motion sensor touchless faucet for High Traffic Use ADA Approved. Restaurants ADA Commercial Sensor Faucets. Malls/Shopping Centers ADA Commercial Sensor Faucets. Commercial Sensor Faucets for Hospitals. Commercial Sensor Faucets for Airports, Malls and Public Areas. Public Restrooms Commercial Sensor Faucets
Diameter of inlet pipe DN15
Diameter of outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power and Voltage DC.6V
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 ℃ / 33.8 -113 °F
Degree of protection by enclosure 1P56

Instructions
BathSelect® Manufacturer Warranty Information

Installation Instructions





Installation Steps
  1. Flush the water supply pipes thoroughly to remove debris. Faucet is designed for tap water or potable water.
  2. Do not apply excessive force to the product as doing so may cause damage.
  3. Do not damage the surface of the sensing window when installing or cleaning the faucet.
  4. When installing DC type faucets, pay special attention to the directions of battery electrodes. Tighten the battery cover to prevent its exposure to moisture.
  5. When installing AC type faucets, strictly follow indicated instructions to perform electric connection. Do not turn on the AC power supply before installation is completed.
  6. One AC power supply can power no more than two faucets at a time.
  7. The general power supply must be protected by a proper fuse.
  8. Do not put the faucet near the strong ultraviolet or electromagnetic field.
  9. Cover the sensing window with black tape when repairing lavatory.
  10. Turn off the AC power supply and water supply before repairing the faucet.

OPERATION INSTRUCTIONS

Once the user’s hands enter the sensing range, the faucet automatically activates water flow. Water flows until 0.5~1 seconds after the hands are removed or until the faucet reaches its 1-minute timeout setting. The faucet adjusts its sensing distance automatically as per the condition of the lavatory and surrounding environment.

Determine the installation method per lavatory size, and make sure the center of the faucet outlet aligns with the center of the lavatory.
