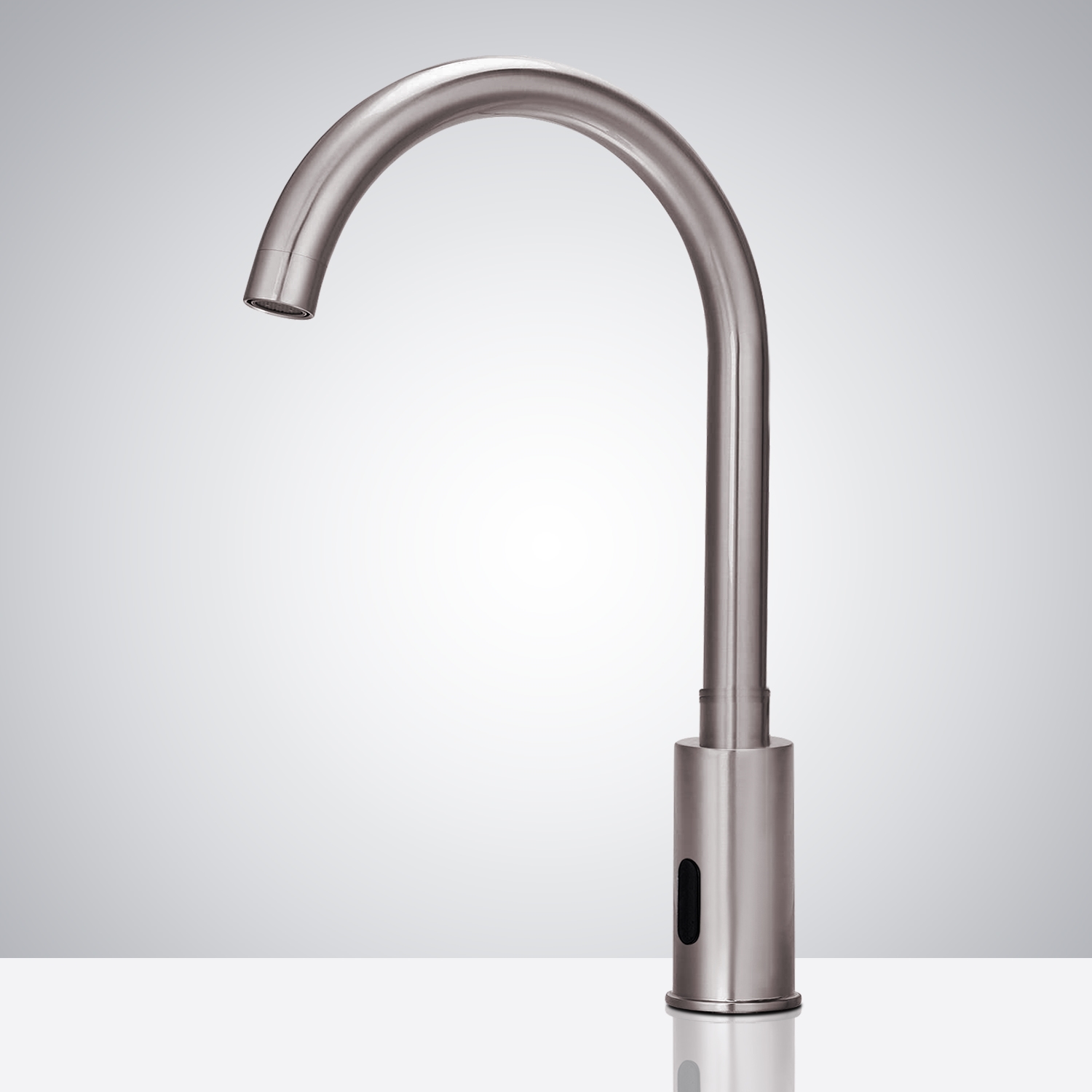

Installation Instructions for BathSelect Wella Goose Neck Brushed Nickel Automatic Commercial Sensor Faucet - (Also Available In Oil Rubbed Bronze Or Gold Tone) | B510-BN

Wella goose neck touchless automatic sensor faucet is perfect for use in homes, restaurants, hotels, schools, medical facilities, and other public places. The faucet is available in brushed nickel. Cold water only or hot water combination available as well. Touchless operation helps to reduce the spread of germs or cross-contamination by eliminating the need to turn on and off faucet handles.

Sensor Faucet is brushed nickel, with built-in Infrared AI Smart-Chip No Water Dripping Design 100% Touch-free operation. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Features:		Visit Product Page
Overall Height: 11- 1/2" (measured from counter top to the highest part of the faucet) Spout Height: 7-3/4" (measured from counter top to the spout outlet) Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of spout outlet) Mounting Type: Single hole Number of Holes Required for Installation: 1 Faucet Centers (Distance Between Handle Installation Holes): Single Hole Flow Rate: 1.3 GPM (gallons-per-minute) Maximum Deck Thickness: 1-5/8" Infrared sensor operation Faucet Body Material: Brass Faucet Spout Material: Brass Flow Rate: 1.3 GPM (gallons-per-minute) Maximum Deck Thickness: 1-5/8" Infrared sensor operation	sensor faucet

Important Note:

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Sensor Faucet Installations Instructions

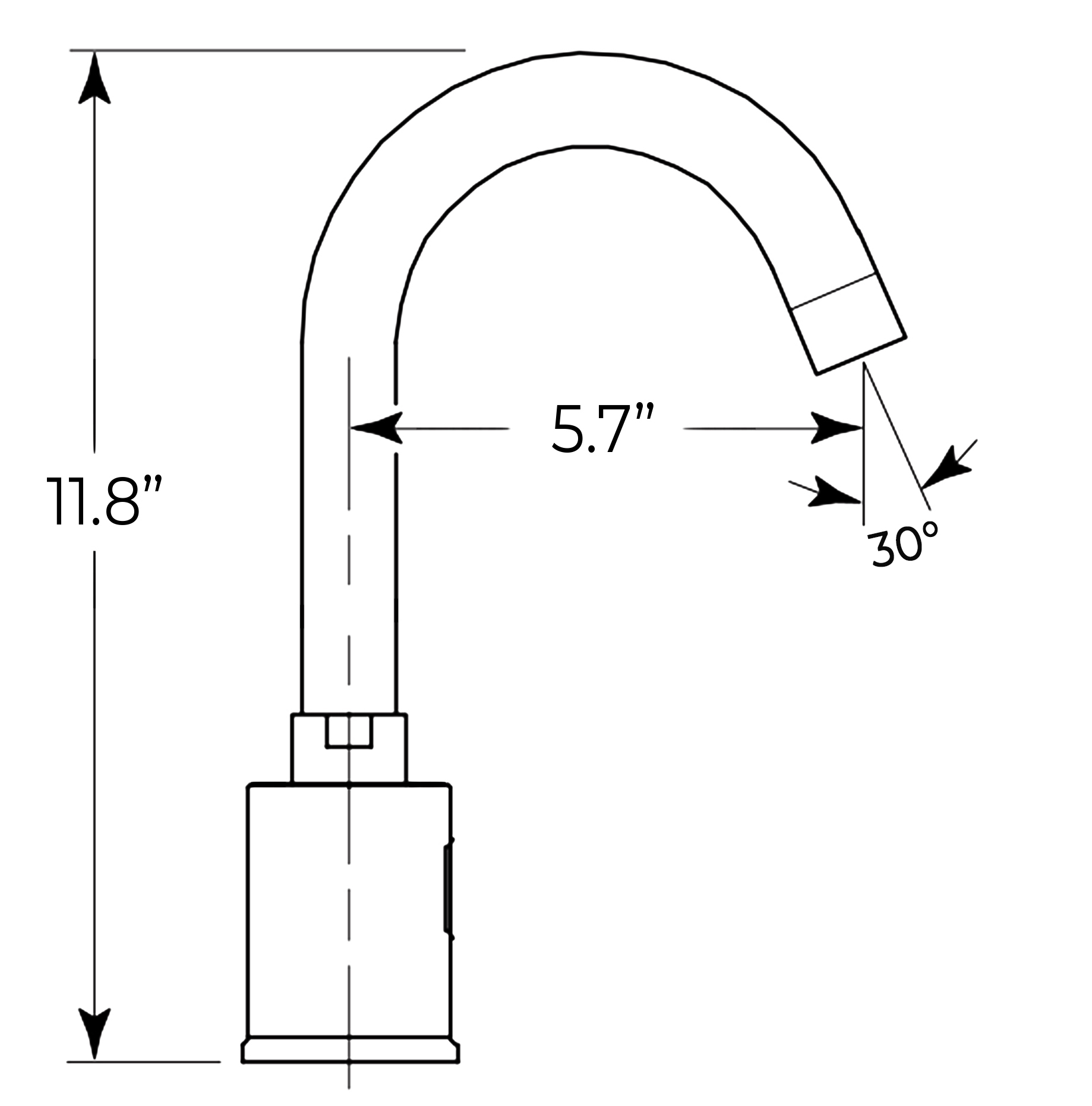

Size:

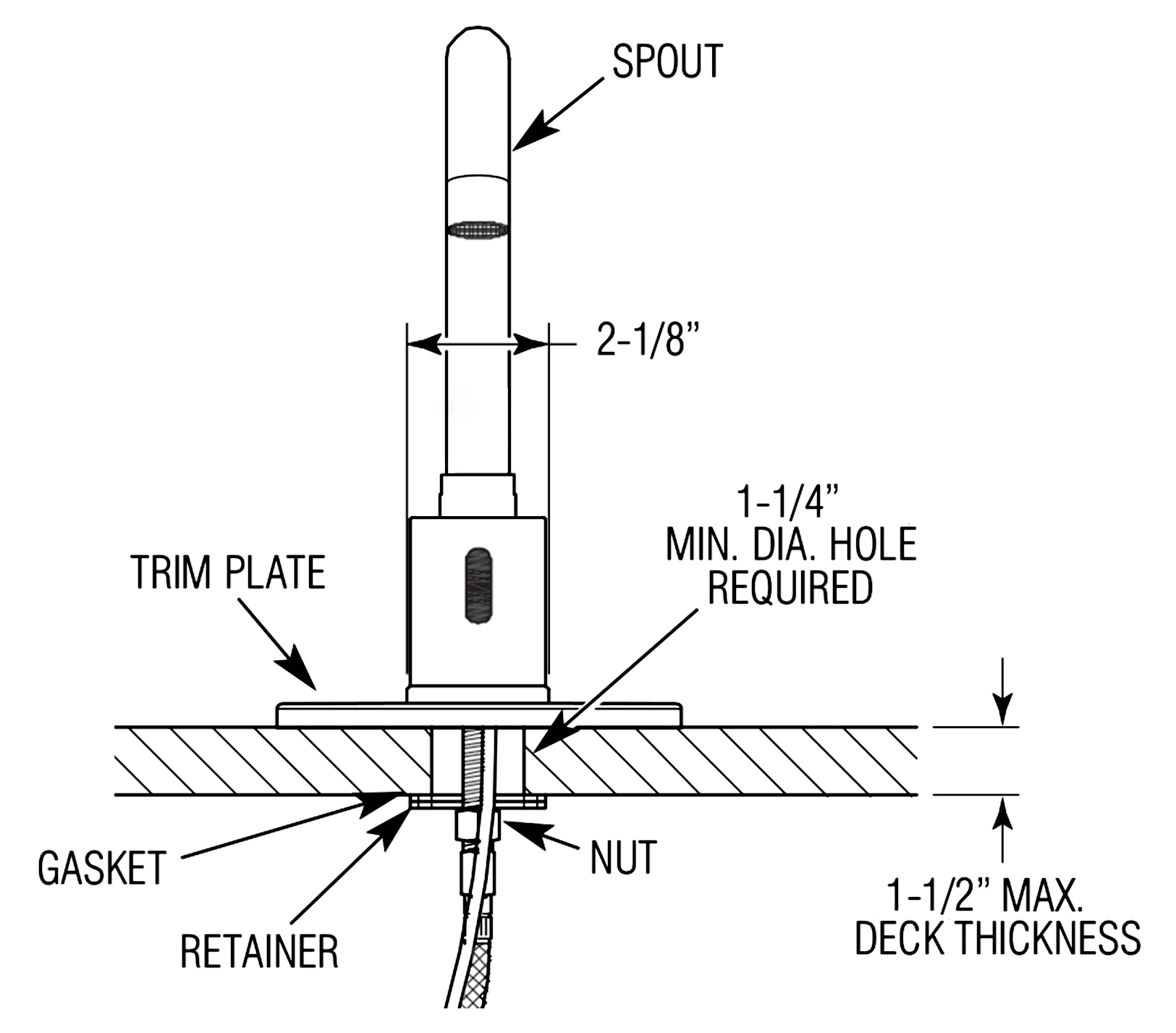

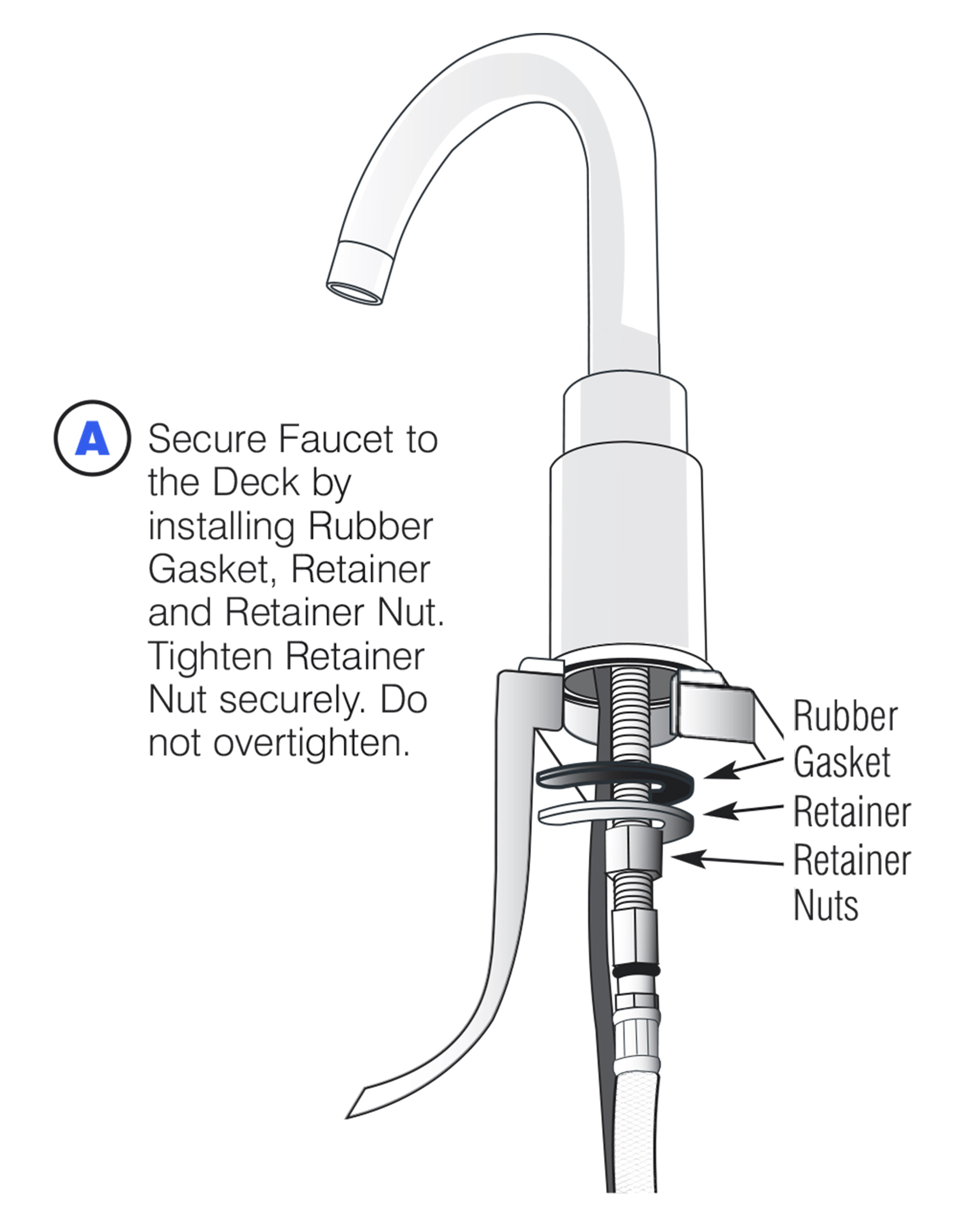

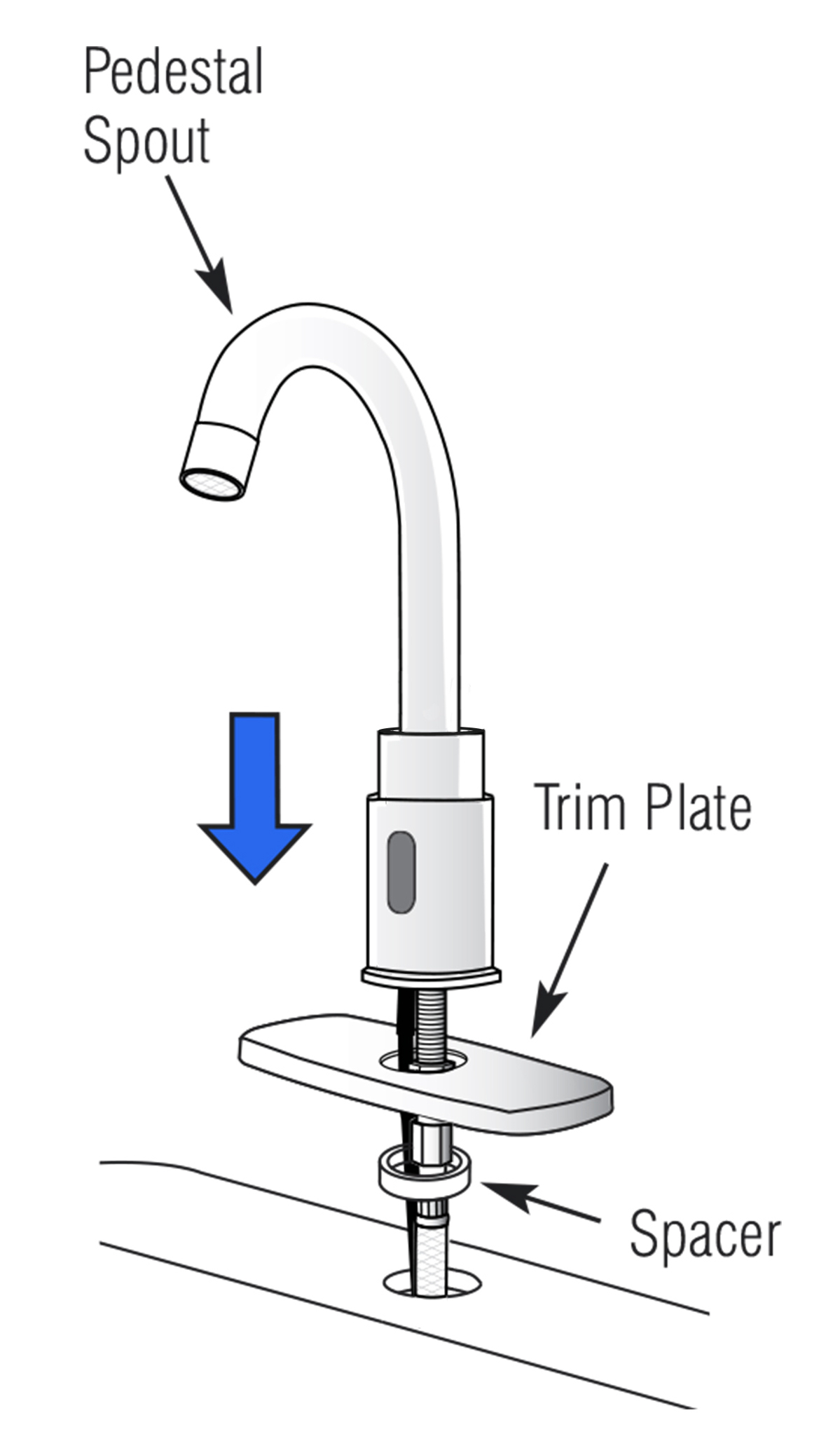

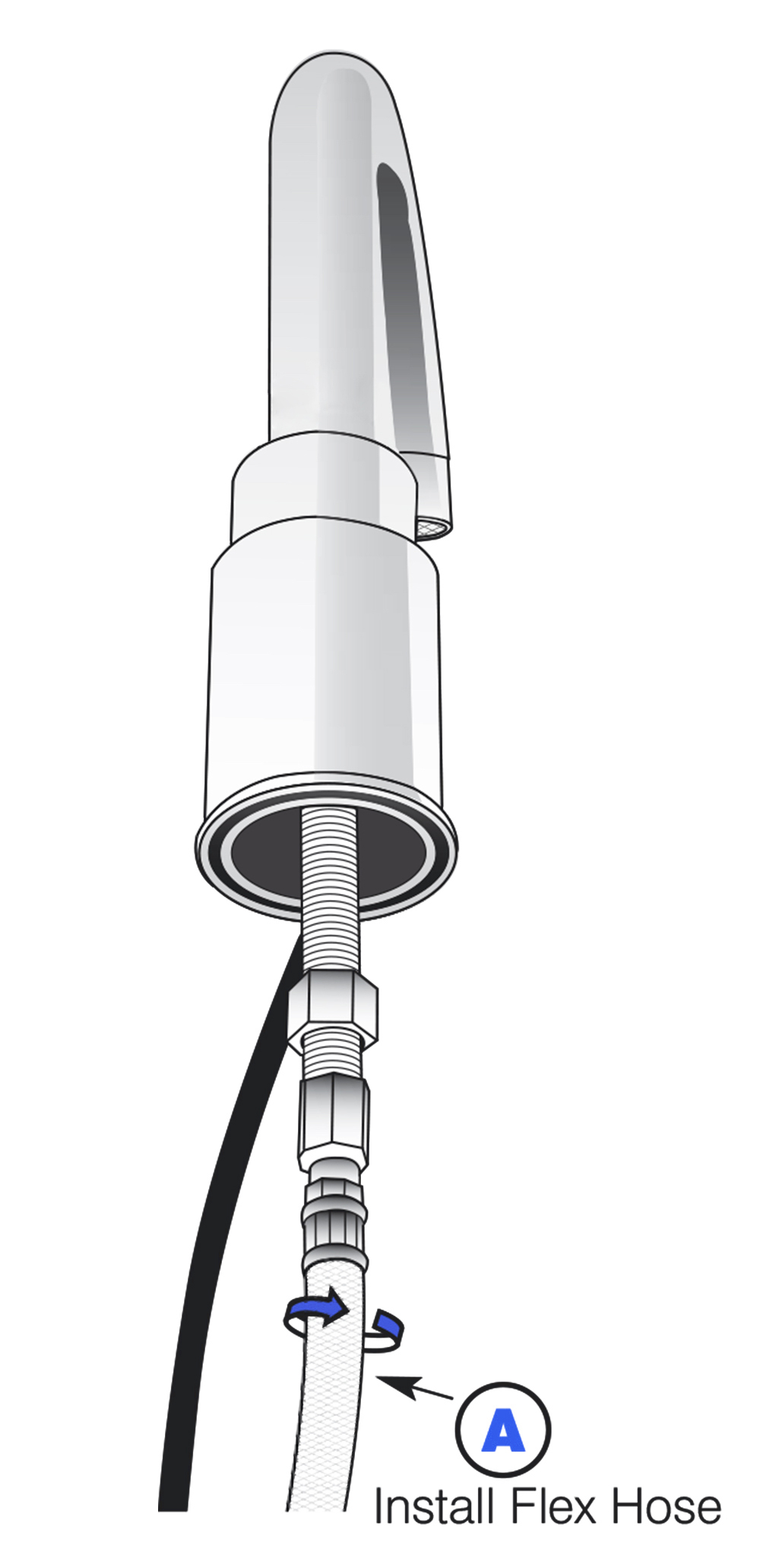

Deck Mount Installation

Step 1:		Step 2:
	sensor

Step 3:		Step 4:


Step 5:		Step 6:


Step 7:		Step 8:


Step 9:		Step 10:


Step 11:		Step 12:

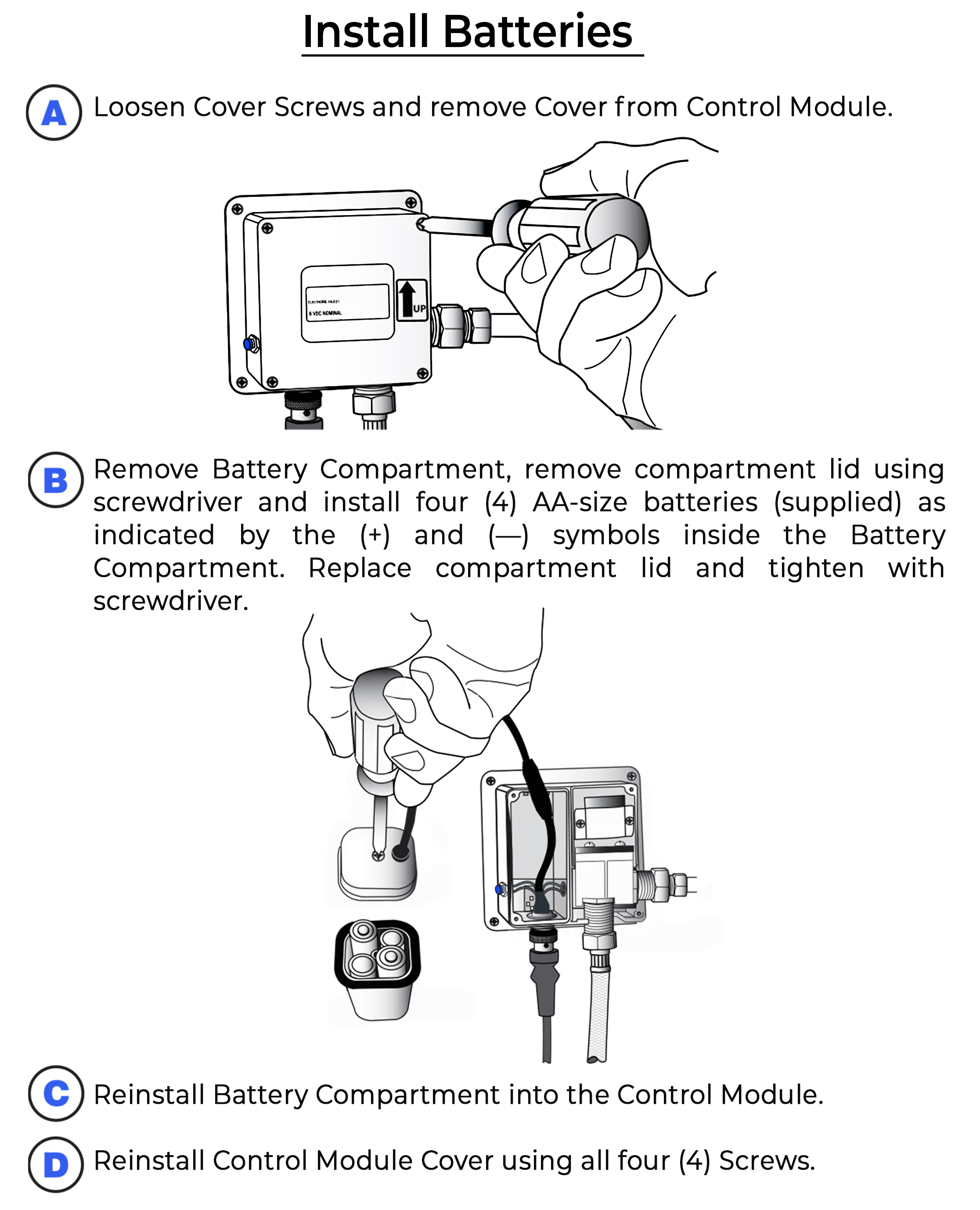

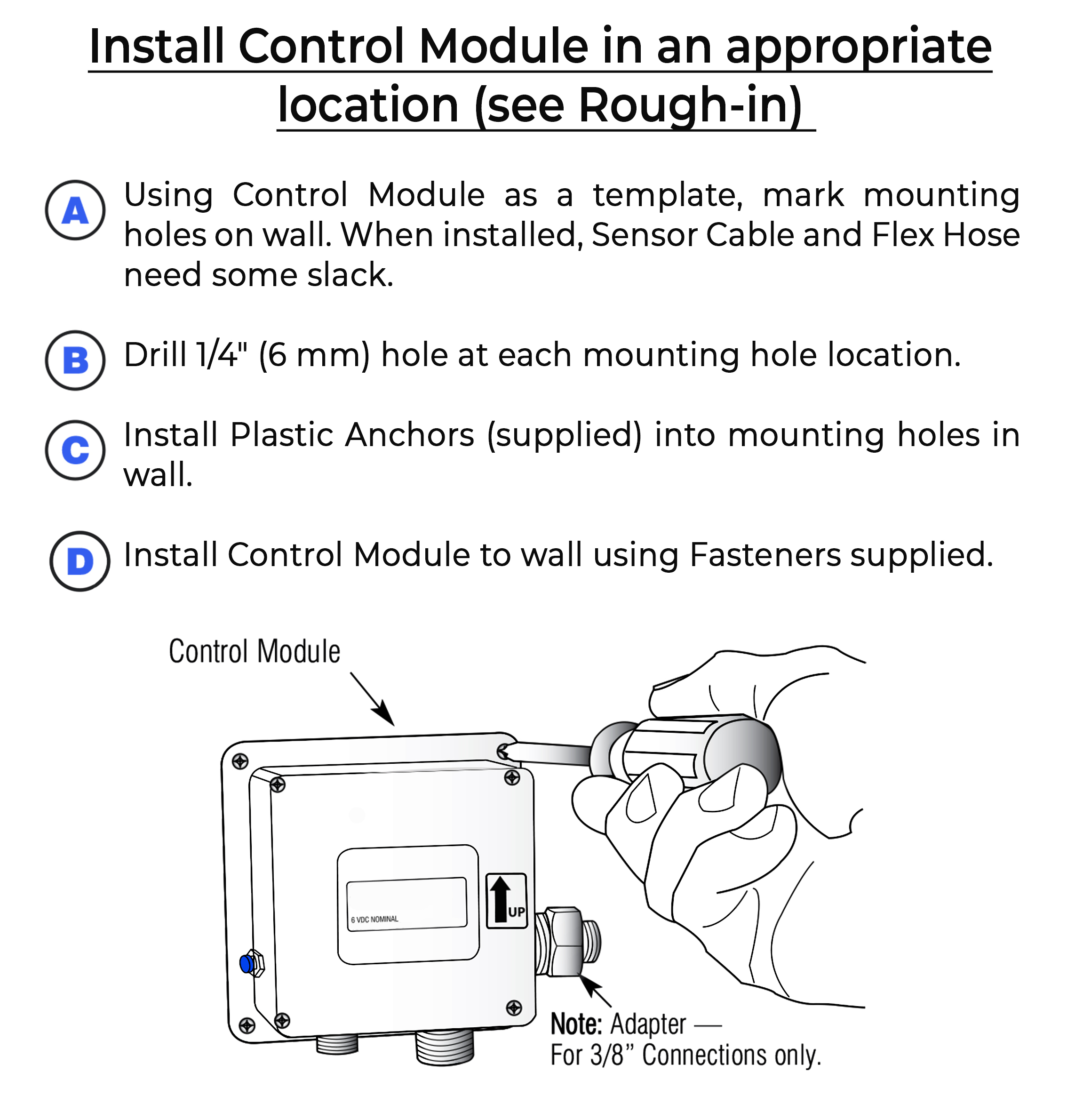

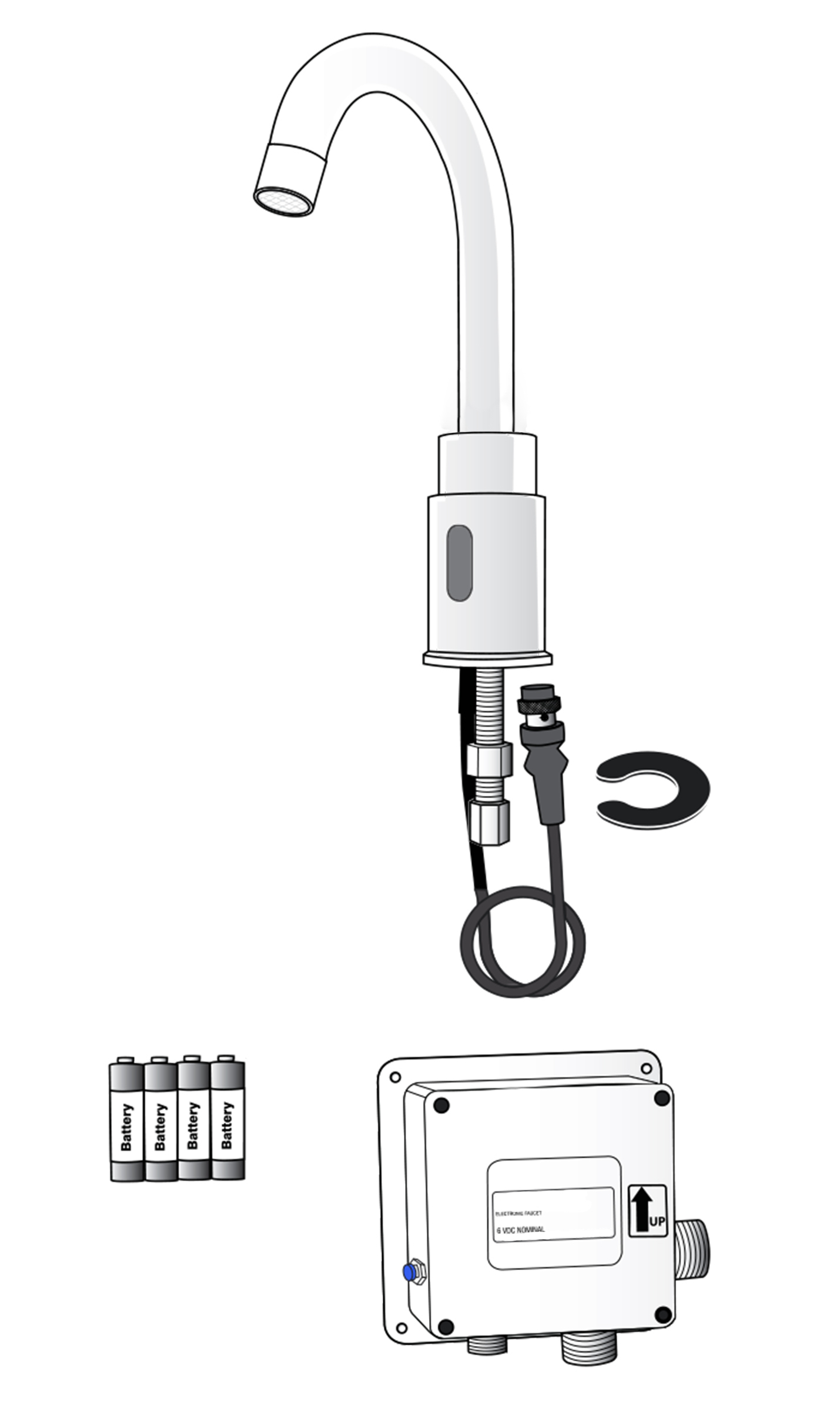

Battery (DC 6V) Only Control Box

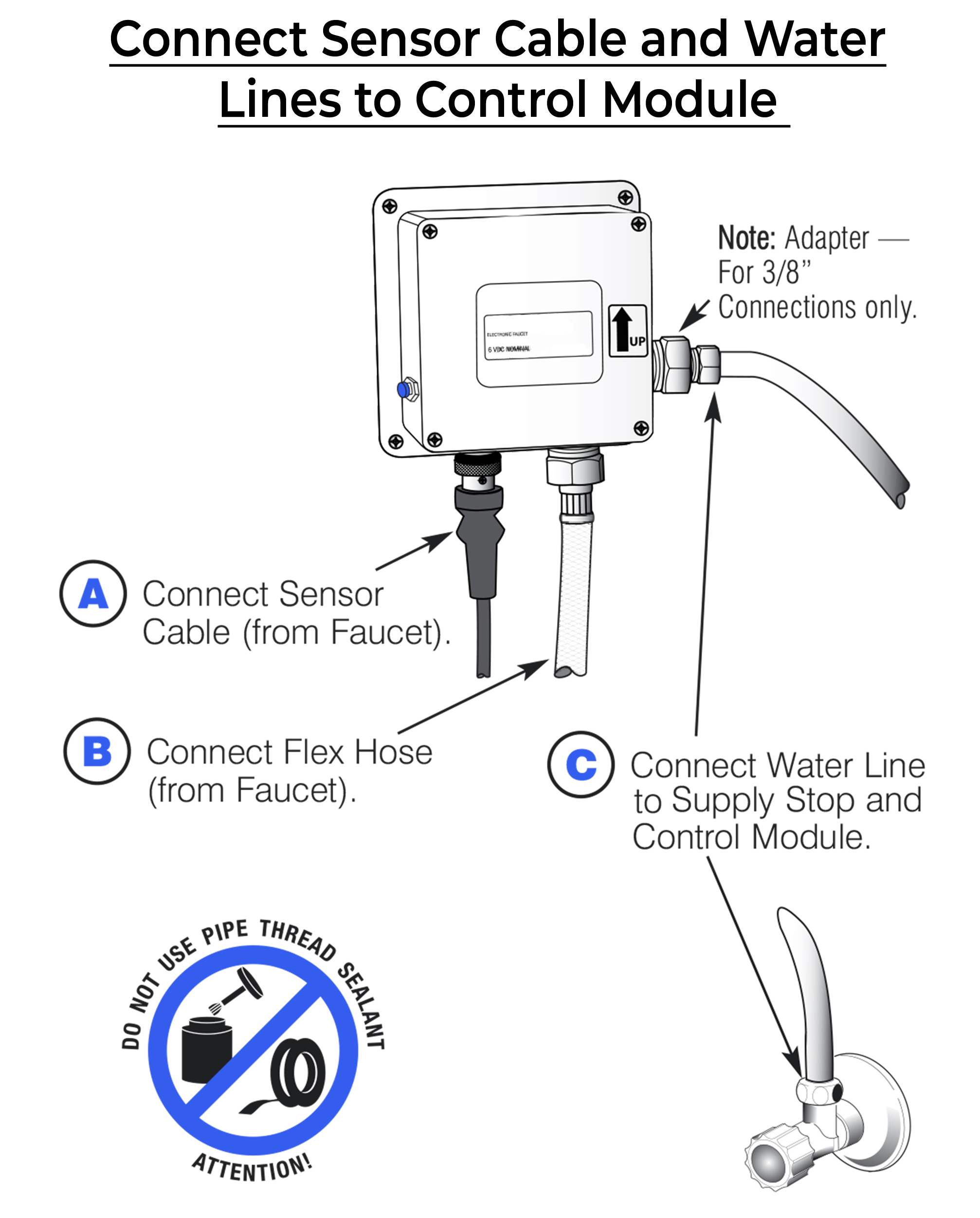

Step 1:		Step 2: (Hot & Cold Connection)
	sensor

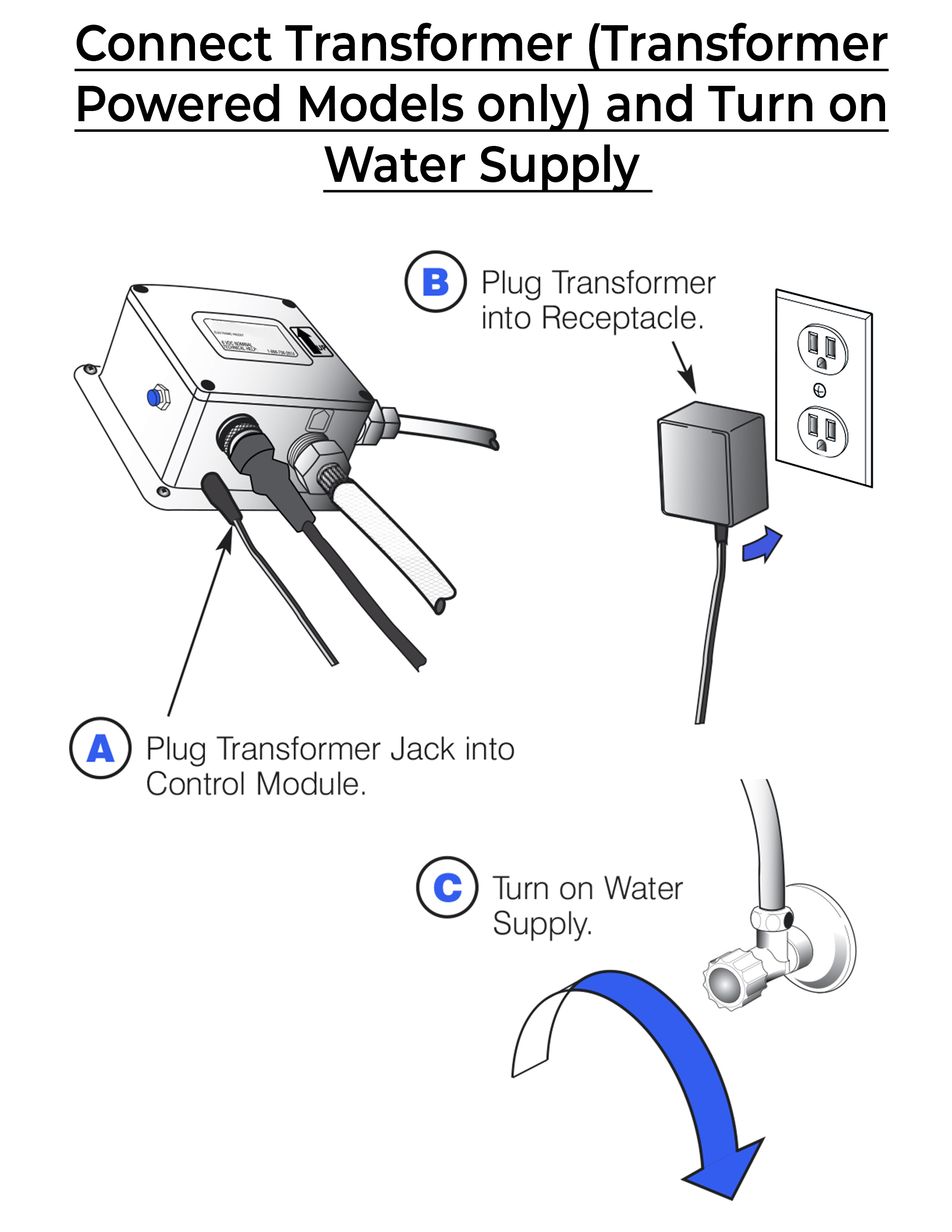

Battery (DC 6V) & AC 220V Control Box
Step 3:		Step 4:
		<
