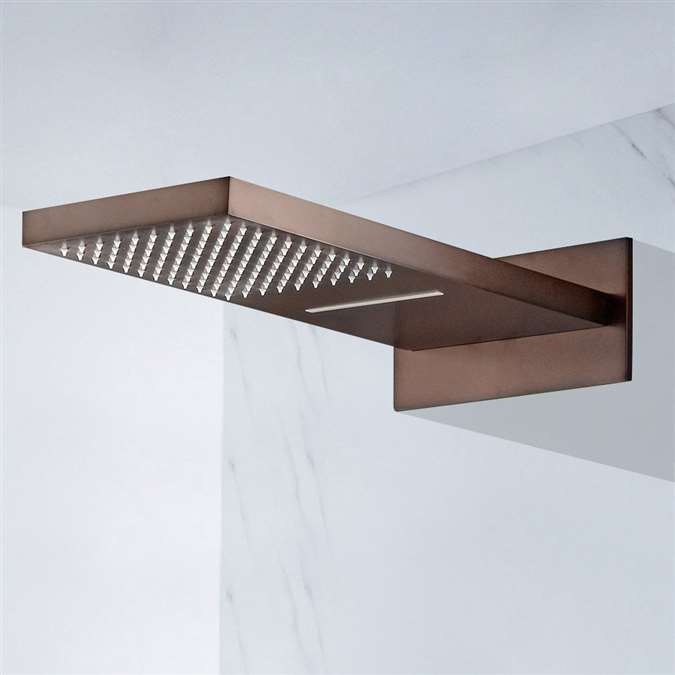

BathSelect Hera Light Oil Rubbed Bronze Wall Mount Rain Waterfall Shower Head With Hand Shower

BathSelect wall mount latest and wonderful showerhead comes in a high-quality bathroom head shower. It has a bronze light Oil Rubbed Bronze shower. The water flow capacity is around 7-10 L/min. The valve core material is high-quality ceramic. It is a wall shower head. It has self-cleaning silicon nozzle water and air mixture technology & the showerhead is a multifunctional mode like rainfall mode, waterfall, mode, water column hand shower mode. This shower set has been made with premium-grade material. 3 spray modes of this rainfall & waterfall showerhead: rainfall, waterfall and mixer modes. It's a great experience showering with the water falling directly overhead like rain or waterfall, offering you the luxury and relaxing shower enjoyment.


BathSelect Hera Oil Rubbed Bronze Wall Mount Rain Waterfall Shower Head With Hand Shower Features:
  • Brand Name: BathSelect
  • Model Number: BS9645
  • Type: Bathroom Shower Set
  • Product Brand: BathSelect
  • Installation Mount: Wall Mount
  • Number of Handles: Three Handles
  • Installation Type: US Standard
  • Fixed Support: Yes
  • Style: Contemporary
  • Color: Light Oil-Rubbed Bronze
  • Shape: Rectangle
  • Material: Brass
  • Customizable Shower: Yes
  • Shower Water Flow: 1.8- 2.6 GPM (7-10 L/min)
  • Surface Finish: Bronze
  • Surface Treatment: Polished Light Oil-Rubbed BronzeValve Core Material: Ceramic
  • Hot & Cold Water: Mix Shower
  • Ceramic Core Valve: Thermostatic Shower Mixer
BathSelect Hera Oil Rubbed Bronze Wall Mount Rain Waterfall Shower Head With Hand Shower
BathSelect® Manufacturer Warranty Information

Installation Instructions for BathSelect Oil Rubbed Bronze Shower Head


1. Open the top cover and drill according to the marked position.
  • Mark by the position of the four holes.
  • Take care to avoid wires and pipes to prevent damage.
  • Be sure to confirm that the four holes are on the same horizontal line.

2. Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.

3. Reinstall the top cover.

BathSelect Oil Rubbed Bronze Wall Mount Rain Waterfall Shower Head With Hand Shower

Shower Head Installation



Juno 22? Dark Oil Rubbed Bronze Solid Brass Wall Mount LED Rain Shower Head

Hand-Held Shower Installation



To install the hand shower's slide bar, first, remove the water supply elbow from the slide bar by loosening the set screw underneath. Remove the brass nipple from the elbow by unthreading it.

  1. Thread the brass nipple into its prepared female fitting. Apply plumber's tape or thread sealant to the threads before attaching. Tighten firmly using an adjustable wrench.

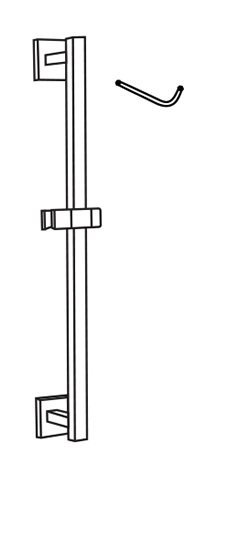

  2. Install the slide bar's upper mounting bracket. The bracket will need to be installed 21 1/2" above the water supply elbow, from center-to-center. Use the provided anchors and screws to secure the bracket to the wall.
  3. Tip: If drilling through tile, you must use a masonry drill bit and drill very carefully to avoid cracking the tile.

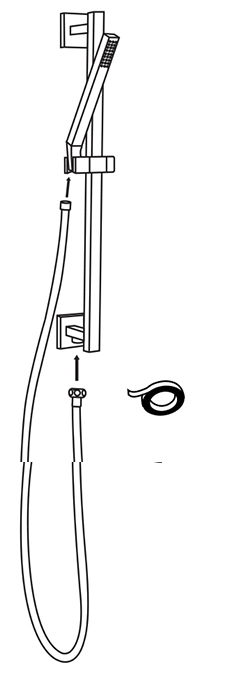

  4. Attach the slide bar by hanging it onto the installed mounting bracket and water supply elbow. Secure the slide bar by tightening the set screws located on the bottom of the bracket and elbow.
  5. Attach the hand shower to the water supply elbow using the hand shower hose. Apply thread sealant or plumber's tape to the threads before tightening. Hand tighten the connections firmly.
