Home > BathSelect Modern Design LED Rain Shower Head Installation Manual

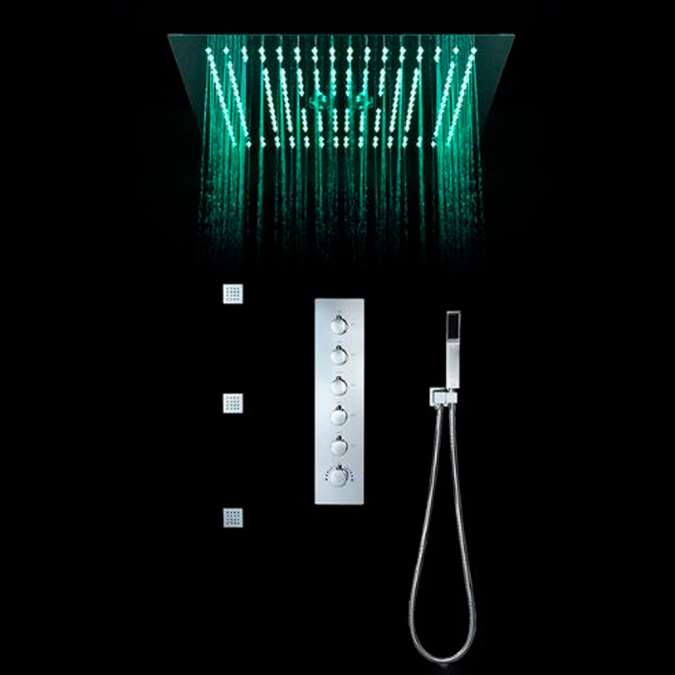

BathSelect Modern Design LED Rain Shower Head with Chrome Jet Spray

BathSelect square LED shower comes in its a bathroom ceiling mount shower and It has multiple colors changing feature with remote control. It comes in a chrome finish polished and the installation is a ceiling mount. It fixed the support type. Water flow has 9-25L/min. It comes with high-quality copper casting & Enjoys new luxury led shower head and give a new look and feel to your shower room and bathroom. Get fresh body massage and feel relax. 64 different colors phone control changing led lights while you will take shower. It is easy to install showerhead.
Juno Curved LED Shower Head Specifications:

  • Type: Bathroom Shower
  • Product Code: BS9634
  • Product Brand: BathSelect
  • Installation Type: Ceiling Mount
  • Feature: Rainfall Showerhead
  • Material: Stainless Steel
  • Surface Finish: Chrome
  • Showerhead Finish: Polished
  • Shower Shape: Square
  • Shower Size: 16"
  • Fixed Support: Yes
  • Style: Single Head
  • Light Type: LED Light
  • Special Feature: Thermostatic Faucet
  • Minimum Water Pressure: 0.3MPA
  • Remote Control: Yes
  • Color Control: 64 Colors
  • Water flow: 9- 25L/ Min
  • Water Function: Misty/ Waterfall/ Rainfall
  • Thread Interface: G1/ 2 inch
  • Product Weight: 15.94 lbs
  • Product Dimension: 26.7in X 34.6in X 11.02 inches
BathSelect Modern Design LED Rain Shower Head with Chrome Jet Spray
BathSelect® Manufacturer Warranty Information

Installation Instructions for BathSelect Modern Design LED Rain Shower Head



  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided


BathSelect Modern Design LED Rain Shower Head with Chrome Jet Spray

Shower Head Installation





No.

Name

Quantity

No.

Name

Quantity

1.

Bracket

1

5.

Hexagon Wrench

1

2.

M10 Explosion
Screw

4

6.

Power

1

3.

Shower
Assembly

1

7.

Water Inlet
Connecting Pipe

4

4.

Lock Screws

4







1. Use a hexagon wrench to lose the lock screws then separate the showerhead assembly and bracket.



2. Dig 4 Ø10 holes on the ceiling according to the dimension of the screws.


3. Use a hammer to thwack the 4 screws into 4 holes.


4. Install the bracket on the expansion screws then use copper sleeve wrench to lock 4 screws.



5. Make sure all the water inlet pipe connected well without leaking before insert the power plug into the socket.
