BathSelect Lano 22" Contemporary Multi Color Water Powered Led Shower Head
With these two functions waterfall and rain showerhead, you can turn on the fun in your shower just by turning on the water. The LED lights will automatically light up and set the mood. They will even change colors automatically based on the water temperature. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. All this with no batteries, everything is self-powered by a built-in dynamo that takes advantage of the water pressure to create the energy to light the bulbs. The Lano shower set comes with an auto thermostatic digital shower valve., this is an anti-scalding color digital display it does not require batteries to operate since it water-powered. Waterfall and Rain Showerhead can work separately or combined. Modern stylish design completely made to match or stand out from your other bathroom fixtures with a high quality shower head that's made out of stainless steel, so its made to last!
BathSelect Lano 22" Contemporary Shower Head Features:
Brand Name: BathSelect
Model Number: BTGY004L
Height: 1.1"
Length: 22" (554 mm)
Material: Stainless Steel
Showerhead Style: LED Contemporary
Length: 22"
Width: 9" (230 mm)
Flow Rate: 2.5 GPM
Water Flow: Waterfall, Rainfall
Controller: Smart Thermostatic Controller
Installation Method: Wall Mount
Core Material: Ceramic
Finish: Brushed Nickel
Led Light Feature: Automatically turn on when water pressure is turned on
shower
Installation Instructions for BathSelect Lano 22" Contemporary Shower Head
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower Head Installation Instructions
Step 1:
shower
head
Step 2:
Open the top cover and drill according to the marked position. 1. Mark by the position of the four holes. 2. Take care to avoid wires and pipes to prevent damage. 3. Be sure to confirm that the four holes are on the same horizontal line.

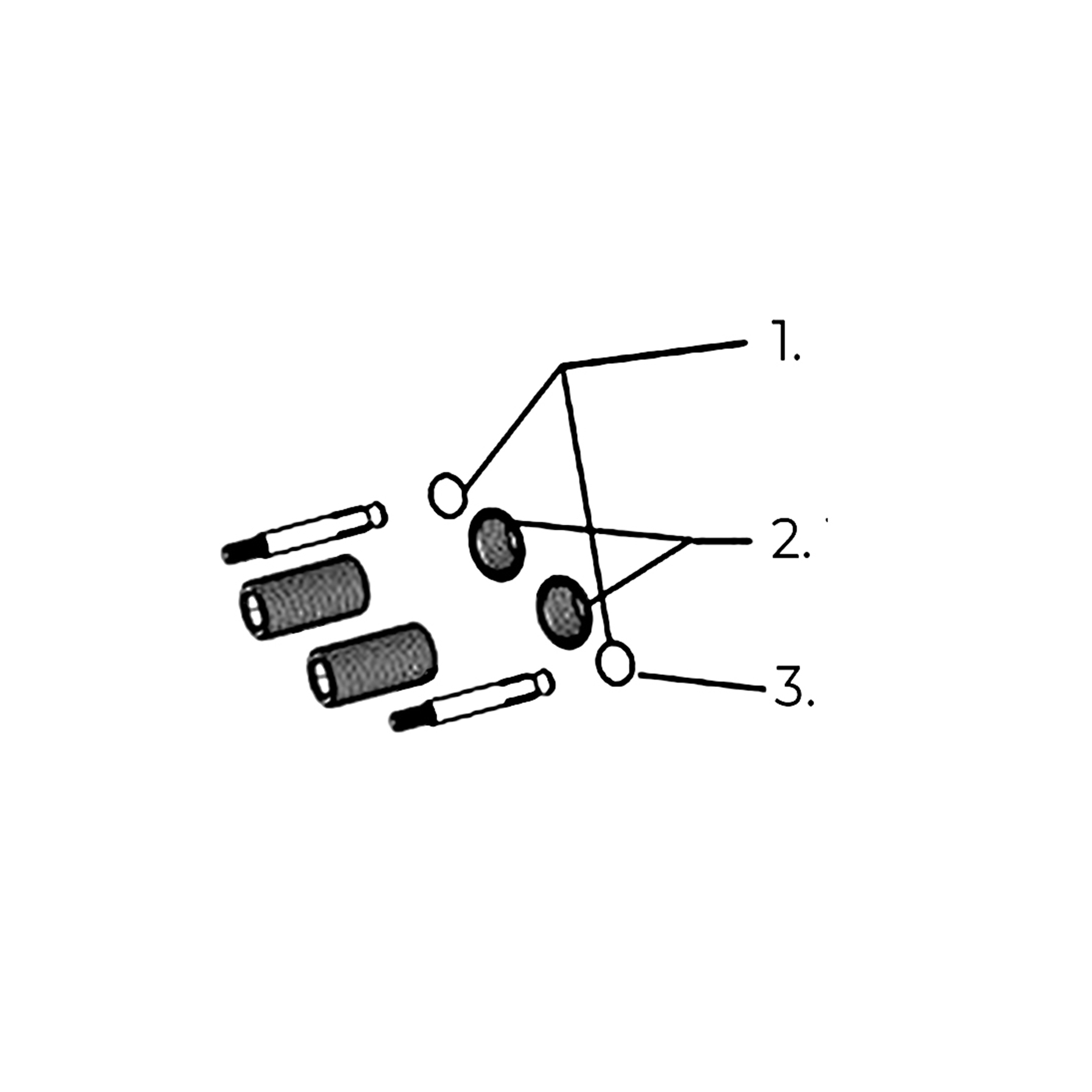

Remove the protective cover (F). Mark the positions and drill holes to suit the anchors (A). Install the anchors (A) and fix the rough-in valve (B) into the wall with screws. Use a level to ensure that the rough-in valve (B) is straight and level. (Important: Flush the water supply to remove any dirt and debris before installing the valve body).
Shower Head Installation Instructions
Step 3:
Step 4:
Wrap Teflon tape around the pipe threads and connect water supply lines and in-wall pipes (not included) as desired to the rough-in valve (B). Turn on the water supply and open the cartridge to check for leakage. Then put on the protective cover and finish the wall surrounding the valve. (Note: Test the water pressure after the pipe connections have been made and before the finished wall material is installed).

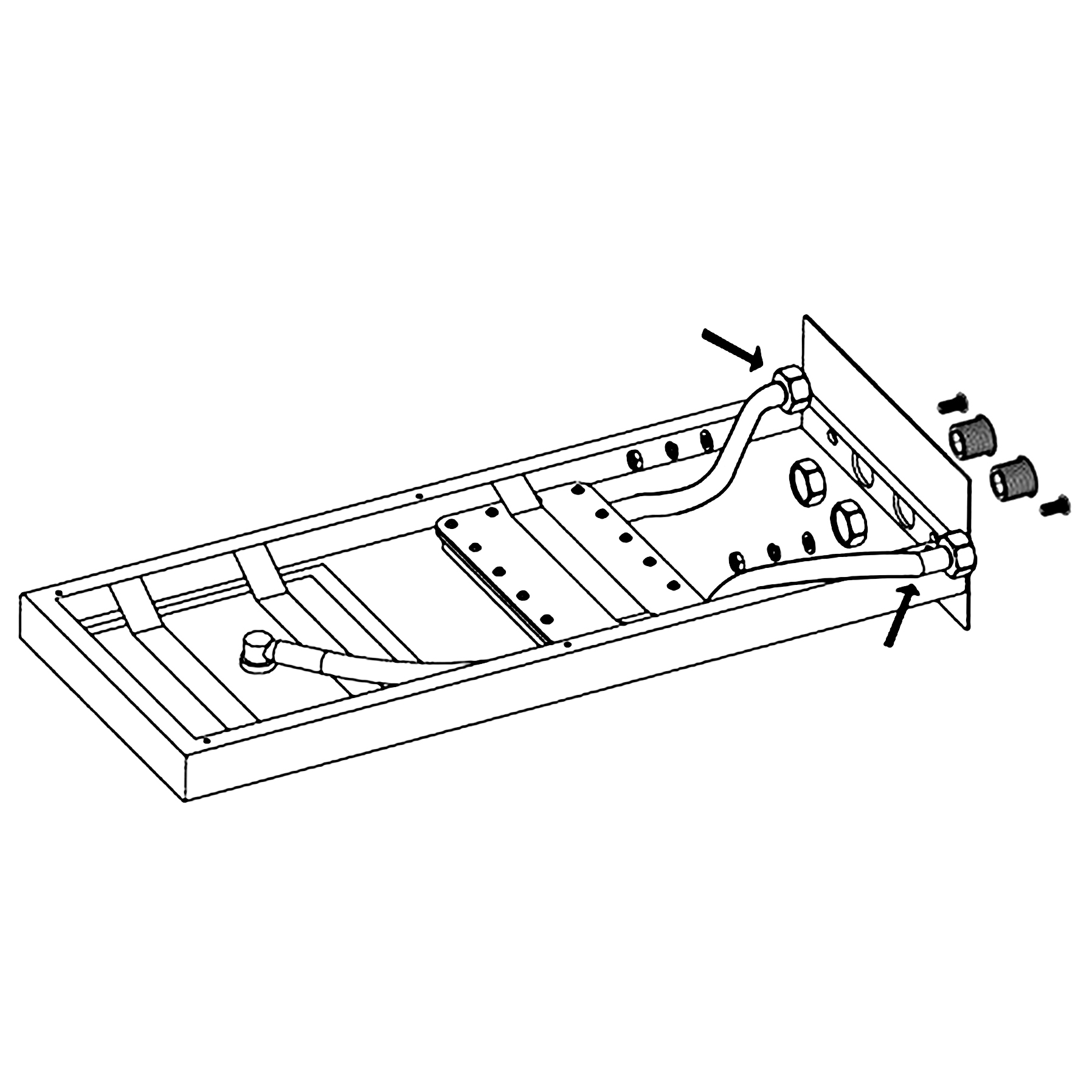

Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
Shower Head Installation Instructions
Step 5:
Step 6:

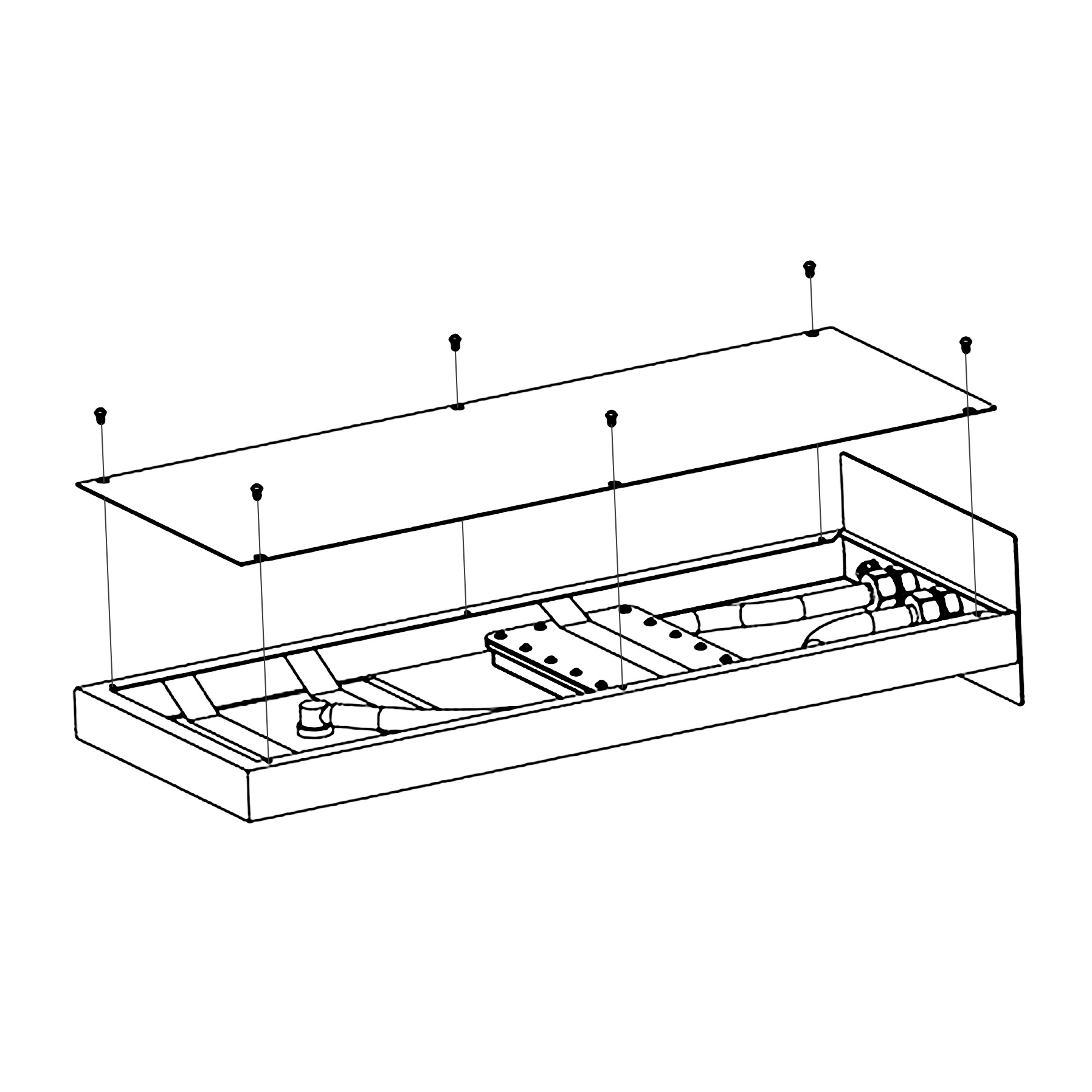

Reinstall the top cover.

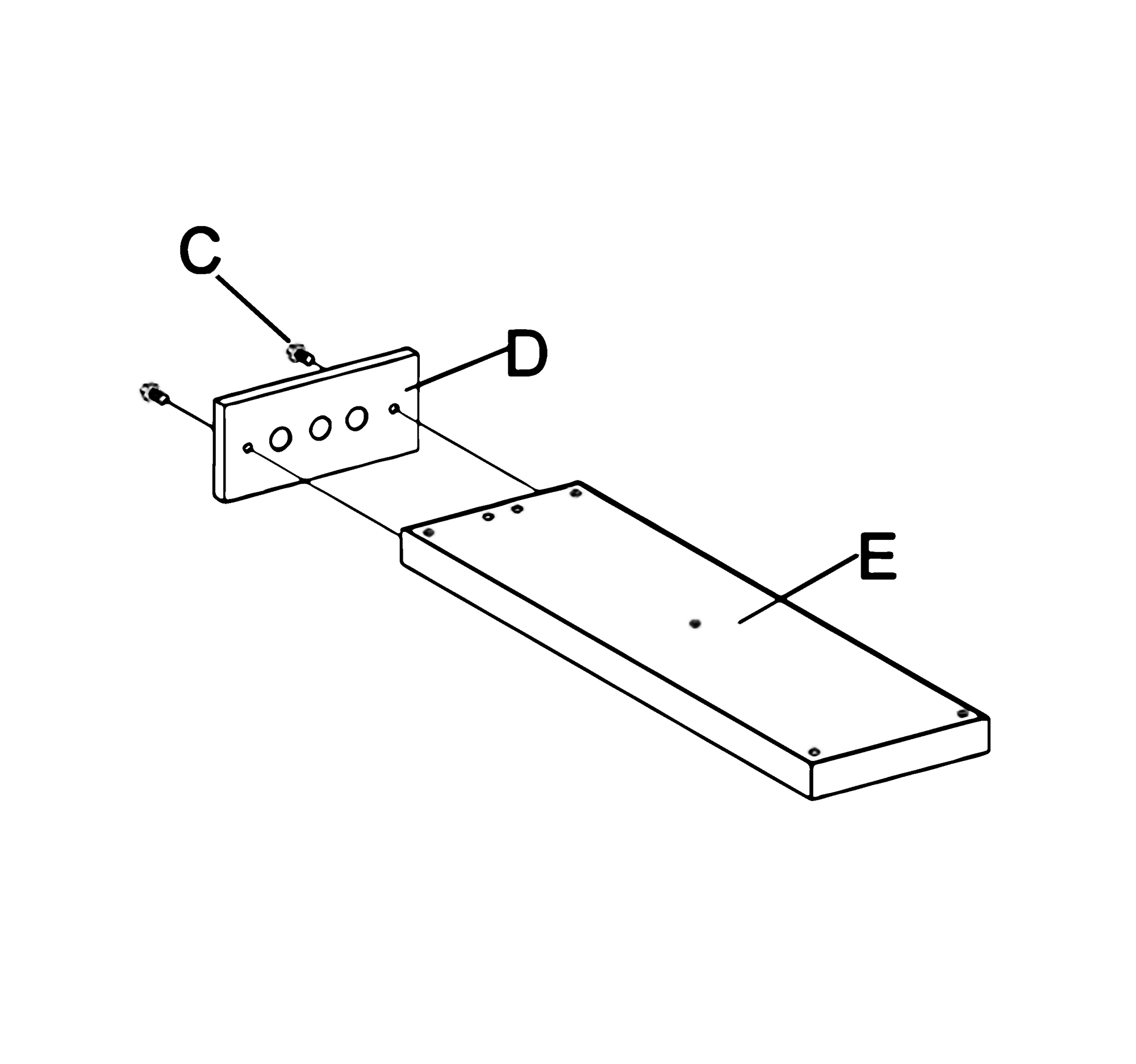

Fix the escutcheon (D) to the showerhead (E) with screws (C).
Shower Head Installation Instructions
Step 7:

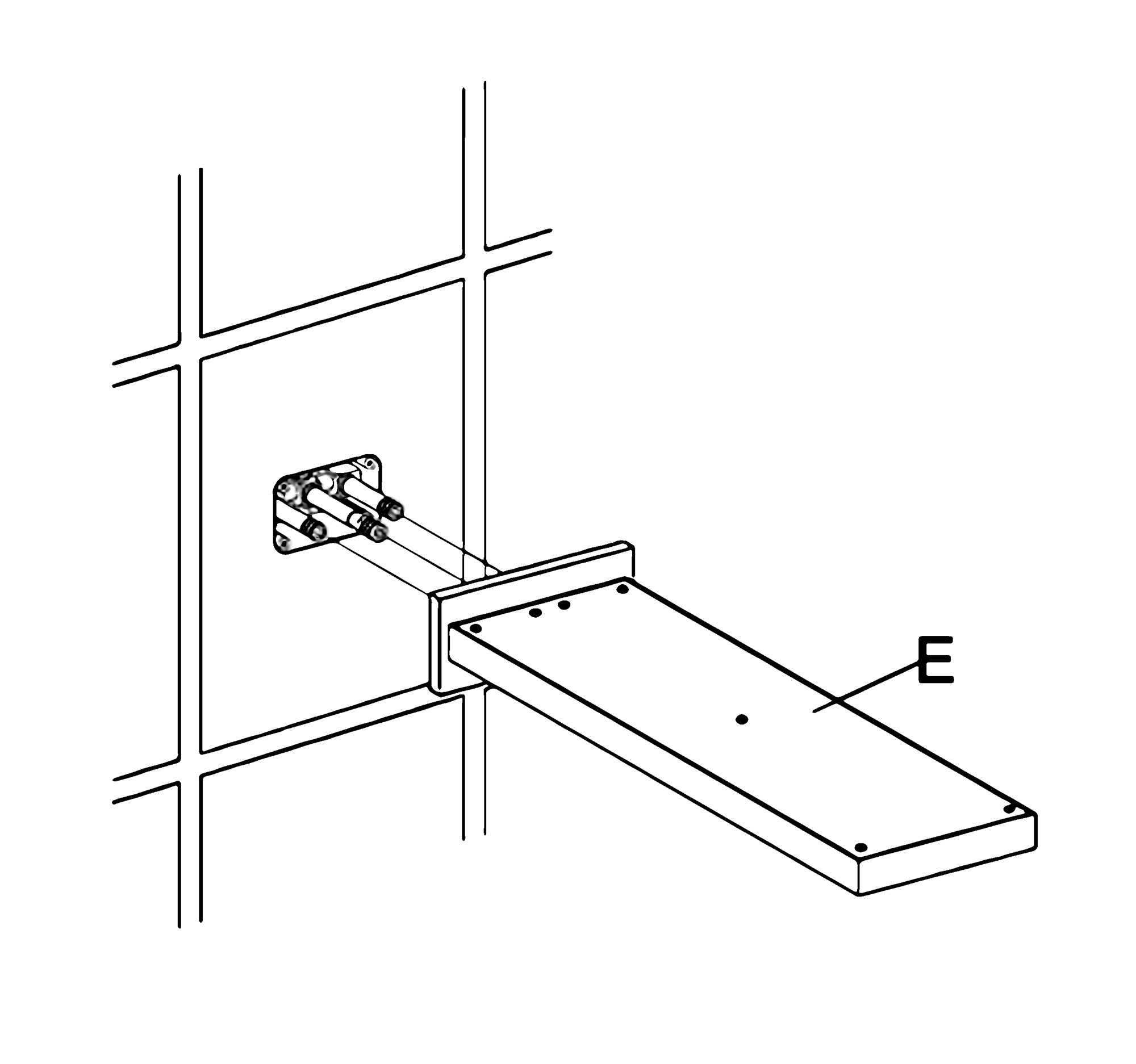

Remove the protective cover when the finished wall is completed. Then, install the showerhead (E) and press it against the finished wall.
Digital Controller Installation Instructions
Step 1:
shower control
Step 2:
Dimensions
Control Box
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
Step 9:
Step 10:
Connections Structure
Instructions
Step 11:
Step 12:
1. Hand shower 2. Head shower 3. Water outlet pipe of hand shower 4. Water outlet pipe of head shower 5. AC220V plug seat 6. Power adapter 7. Power supply cable of the host box 8. Host box 9. Battery cover 10. Control cable of the host box 11. Hot water inlet 12. Cold water inlet 13. Cold water switch 14. Hot water switch from water heater 15. Control panel 16. Control panel's control cable
Step 13: (Host Box)
Step 14: (Operation)
1. Hand shower's mixer water outlet 2. Head shower's mixer water outlet 3. Cold water inlet. 4. Hot water inlet 5. & 6. The control cable 7. Bracket
Notice 1. The control panel is sensitive, when installing it, please avoid to let it ace directly to the water from the hand shower and the head shower, because water will get it misoperation or lock the control panel. 2. The touch button is the best sensitive area. 3. The touch panel has water splash protection technology. When the system detect misoperation, no response and need about 1 second to recover.
Function 1. Water TEMP adjust 2. Hand shower 3. Head Shower 4. Water flow adjust
Operation
1. Power on/off
Power on A. After electrify (The battery without electricity or not install battery), press the fly-shuttle switch, power on and switch on the head shower automatically, adjust the thermostatic Temp function. When you hear buzzer sound, the fly-shuttle switch and LCD display would be lighting.
B. After electrify (The battery with electricity), press the fly-shuttle switch in 20 minutes from last time turn it off. When power on, open the last time spray mode and TEMP adjustable function (cold water or thermostatic function); if press the fly-shuttle switch from more than 20 minutes from last time turn it off，power on and open the head spray and TEMP adjustable function at the same time. You could hear buzzer sound, the fly-shuttle switch and LCD display would be lighting.
C. When system is on, Water TEMP and water flow will be same as that you set last time. Head shower (or hand shower) shows cursor and icon.
D. If you didn't set working time, default working time is 60 minutes.
Power off A. When system is on, press the fly-shuttle switch to power off system, you can hear buzzer sound. B. The system will switch off automatically when working time comes up.
Hand shower and head shower switch
When the system is on, press Spray button on the panel to switch the water outlet way between the head shower and hand shower. When cursor and frame move to the head shower icon, the head shower comes water. When cursor and frame move to the hand shower icon, hand shower comes water.
Setting When the system is on, rotate the fly-shuttle switch to adjust the water flow, press the Setting button to adjust water TEMP and water flow. Press the Setting button and keep for 3 seconds to set working time. System will restore to adjust water flow if no press any button for 5 seconds.
Water TEMP adjust and cold water mode When system is on, touch Setting button to enter into TEMP adjusting, cursor and frame will move to TEMP cold icon. The °C icon on the LCD panel flash, at this time you could set water TEMP from 29-48 ℃. Rotate the fly-shuttle to adjust water TEMP and you can hear buzzer sound for each step. When the TEMP is lowest, rotating the fly-shuttle switch one round counter-clockwise to enter into cold water mode, cursor and frame will move to the cold water icon. You can hear buzzer sound when system enter into cold water mode. If you rotate the fly-shuttle switch on
