Installation Instruction For Chrome Waterfall Bathtub Faucet BSY-8020

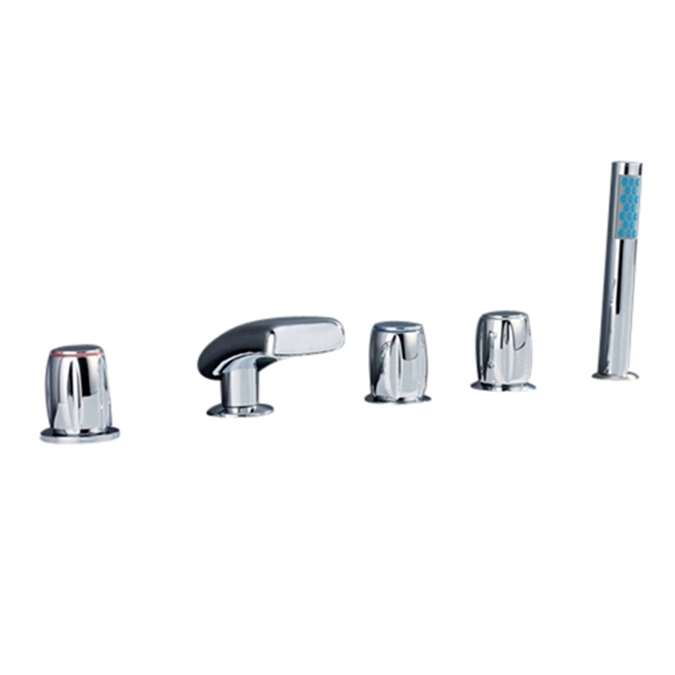

Chrome Waterfall Bathtub Faucet

This waterfall bathtub faucet offers a complete solution for modern bathrooms, both practical and aesthetic. It consists of three handles, one spout and one hand held shower with 150 cm long stainless steel hose, all in beautiful high quality chrome finish. The installation requires five holes and it is deck mounted. It comes with 5 years warranty. The body, spout and handles are made of brass, while the valve core material is ceramic for best performance and long lasting life time. It comes complete with accessories and installation instructions.

faucets-sale

5 Holes Chrome Waterfall Bathtub Faucet (BSY-8020)

  • Type:Bath & Shower Faucets
  • Valve Core Material:Ceramic
  • Bath & Shower Faucet Type:Deck-Mounted B & S Faucets
  • Surface Finish:Chrome
  • Style:Contemporary
  • Number of Handles:Triple Handle
  • Surface Treatment:Polished
  • Spout Material:Stainless steel(sus304)
  • Suitable place:Bathtub
  • Type:Waterfall Bathtub Faucet
  • Valve Material:Brass
  • Certificate:CE,ROHS
  • Product Description: Chrome Widespread Waterfall Bathtub Faucet with Hot and Cold Switch
  • Suitable Place: Bathroom
  • Installation Type: Widespread
  • Valve Type: Ceramic Valve
  • Material :Brass
  • Finish: Chrome
  • Installation Holes
  • Flow Rate : 1.8 GPM
  • Distance:Adjustable

What's in the box

    1. A hand shower with 150cm long stainless steel (sus304) soft hose(brass joint)
    2. A waterfall faucet with triple handles
    3. Cartridge: Lifetime >500, 000 times for both open and close
    4. Two 30cm-long and one 50cm-long stainless steel flexible hose.
    5. 1 x Installation Instruction
Chrome Waterfall Bathtub Faucet
BathSelect® Manufacturer Warranty Information

INSTALLATION INSTRUCTIONS
Before installing, read entire Widespread Faucet Installation Instructions. Observe all local building and safety codes.

For the following Installation Instructions for your new Widespread Faucet it is assumed that any old fixtures have been removed and any repairs or modifications to the water supply have been completed.

Unpack and inspect the product for any shipping damages. If you find damages. If you find damages, do not install. Contact Customer Service . If you need assistance or have questions while installing your Widespread Faucet, contact Customer Service.

We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures.

TOOLS AND MATERIALS:

  • Adjustable Wrench
  • Silicone Sealant
  • Damp Cloth

INSTALLATION

Install the rough-in valve body behind the finished wall. Attach the valve body to wood blocking between two wall studs with wood screws. Be sure that the rough-in valve is completely level, and connect to the main water supply.

  1. When the wall around the rough-in valve is finished, install your faucet trim.
  2. If your faucet spout is not assembled, assemble by connecting the threaded outlet to the faucet body. If your spout is already assembled move on to the next step.
  3. If your faucet features a decorative face plate, secure the face plate to the wall with silicone sealant before installing your handle and spout trim pieces. Make sure that the face plate is properly aligned over the rough-in valve and perfectly straight. If your faucet does not feature a face plate move on to the next step.
  4. If the decorative spout escutcheon is not attached, place the escutcheon on the body of the spout and install the spout over the spout shank. Screw the spout into place and press the escutcheon firmly against the finished wall.
  5. Tighten any set screws in the spout with the Allen wrench.
  6. Install the handle(s) and any necessary hardware and tighten the set screws with your Allen wrench. If rubber O-rings or sealing gaskets are included, Place between the handle body and wall to create a water tight seal.
  7. When your faucet installation is complete, turn on the water supply. Check to make sure that all connections are tight (no water should be leaking) and that the hot and cold supplies are working correctly. Turn the water on and allow the water to flow through the spout for approximately 60 seconds. Allow sealant to cure for 24 hours before use.
