HOW TO INSTALL BAVARIA 55" BATHROOM 1920X1080 SMART WIFI INTERNET WATERPROOF LED TV | BST5318BG


This Bavaria 55" Bathroom 1920x1080 Smart WIFI Internet Waterproof LED TV is very perfect if you want a TV in your bathroom. It is very easy to install and it can be installed as wall mount TV. This LED looks elegant and elevates the appeal of your decor, made to the highest quality and for great tastes. With the water, heat, dust proof television, you will be able to watch your favorite programs and movies even while you enjoy a steamy hot bath or shower. It comes with IP66 water proof and dust proof rated, suitable for most wet environment and is capable of delivering superior performance. It can be used in Bathroom, Shower Room, SPA Pool, Sauna, Swimming Pool, Luxury Hotel, Kitchen and any place with a humid environment. It redefines your bathing space with its unique blend of design and everlasting quality.

Features: Visit Product Page
  • Brand Name : BathSelect
  • Model Number: BS10327
  • Installation: Wall Mount (bracket or back box)
  • Function: ATV/DTV/Monitor
  • Button: Touch Button
  • Protection Grade: IP66
  • Speaker: Built-in Waterproof Speaker
  • Remote Controller: IP68 Waterproof
  • Display Type: LED
  • Color: Silver/Mirror
  • HDMI: Supported
  • WIFI: Supported
  • Bluetooth: Supported
  • RAM: 4GB DDR3
  • Flash: 64 GB NAND FLASH
  • Android System：Android 9.0
  • LED Size (Diagonal): 55"
  • Unit Size: W1350x H843x D54 mm
  • Unit weight: 41 kg
  • Finish: Mirror
  • LED Size (Diagonal): 55"
  • Front Panel Material: Glass
  • Frame Material: Metal
  • Resolution: 1920x1080
  • Standby Power: ≤1W
  • Power Consumption: 100W
    • .
 sensor faucet BAVARIA 55" BATHROOM 1920X1080 SMART WIFI INTERNET WATERPROOF LED TV

Important Note:
  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
    		•

    Bathroom Led tv Installations Instructions

    Size:



    Features
    Functions: ATV/ DTV/ Monitor
    DTV System: DVB -T/T2/C/ATSC(According to your country)
    ATV System: PAL / SECAM / NTSC
    Protection Grade: IP66
    Speaker: Built-in Waterproof Speaker
    Button: Touch Front Panel Buttons
    Remote Controller: IP68 Waterproof
    HDMI: Supported
    Android System: 9.0
    Bluetooth: Supported
    WiFi: 2.4/5G
    RAM: 4G
    Nand Flash: 64G
    LCD Size (Diagonal): 55"
    Finish: Mirror
    Front Panel Material: Glass

    Specifications
    Interface: TV/USB/HDMI/ Audio Out/LAN/Integrated WiFi
    Audio System: BD/ DK/ I/ L/ L’
    OSD Menu: 8 Languages (English, French, Spanish, Polish, Portuguese, Italian, German, Dutch)
    Display Type: LED
    Aspect Ratio: 16:9
    Contrast Ratio: 1300:1
    Brightness(Cd/m2): 450
    Resolution: 1920x1080
    Response Time: 6ms
    Viewing Angle (H/V): 178°/178°
    Speakers: 8Ω, 5W x 2pcs
    Standby Power: ≤1W
    Power Consumption: 90W
    Main Power: 110-240 DC
    Working Environment: -30 to 50℃
    Working Humidity: 10%-90%
    Unit Weight(kg): 41
    Unit Size: W1350x H843x D54 (53.14”x33.18”x2.12”)
    Recessed Dimensions for In-wall (mm): W1288xH788xD41 (50.70”x31.02”x1.61”)
    VESA for on wall(mm):400x400 (15.7”x15.7”)
    Applications: Bathroom, Kitchen, Function Furniture, Advertising Display, Hotel, swimming pool, shopping mall, salon,sauna room,
    SPA (Better use indoor)

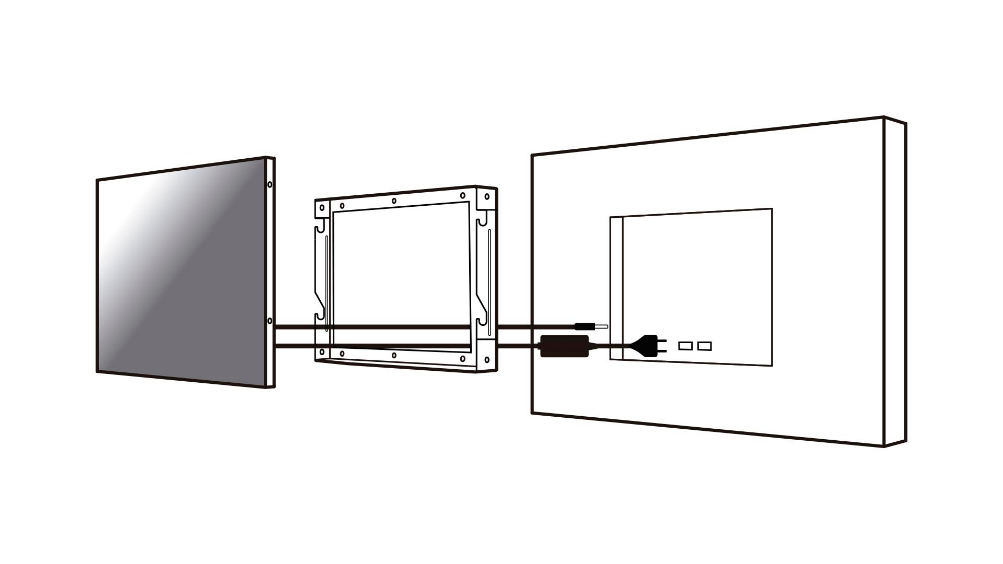

    Option 1: In-wall with Embedded Bracket

    • Create an opening within the chosen area of the wall according to the Embedded Bracket outlines. Leave enough space for the cables and adapter.
    • Set up the power and signal circuit and the outlet.
    • Place the Embedded Bracket into the recess and use the pilot holes to drill into the wall.
    • Place the raw plugs into the holes that have been drilled and screw the Embedded Bracket into position.
    • Organize the cables and offer the TV up to the Embedded Bracket that is fixed within the wall.
    • Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.

    Step 1:

    Step 2:
    Step 3:

    Option 2: On-wall with Embedded Bracket


    1. Drill holes within the chosen area of the wall according to the Embedded Bracket outlines.
    2. Place the raw plugs into the holes and screw the Embedded Bracket into position so it is attached to the wall.
    3. Set up power and signal circuit and the outlet.
    4. Simply offer the TV up to the Embedded Bracket that is fixed on the wall.
    5. Line up the 4 x metal lugs located on the sides of the TV case with the 4 x channels located within the Embedded Bracket and simply push the TV into situ.


    Step 1:



    Option 3: On-wall with VESA Bracket

    1. Drill holes within the chosen area of the wall according to the On-wall VESA Bracket dimensions.
    2. Place the raw plugs into the holes and screw the On-wall Bracket into position so it is attached to the wall.
    3. Place the TV screen down on a soft, flat surface, and locate the threaded mounting points that are located on the back of the TV.
    4. Screw the 2 rails on the back of the TV.
    5. Set up power and signal circuit and the outlet.
    6. Simply offer the TV up to the On-wall Bracket that is fixed on the wall. Hook the 2 rails over the On-wall

    Step 1:







    IPX6 WATERPROOF RATEDIPX6 WATERPROOF RATED
