How to Install Fontana Shower System Thermostatic Shower Head Body Massage Spray | BST2861SS

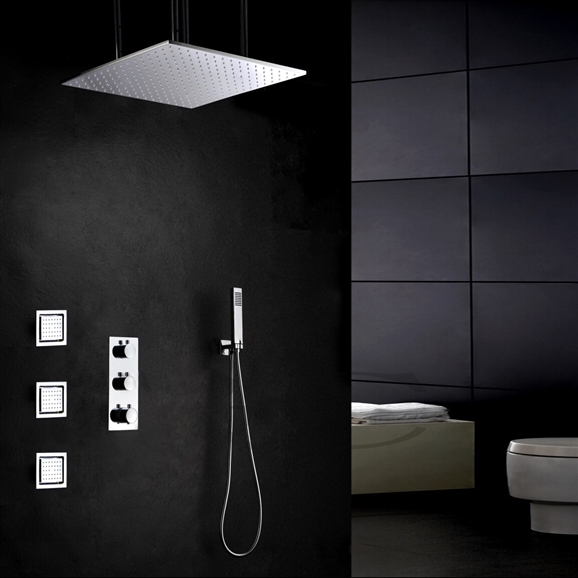

Fontana Shower System Thermostatic Shower Head Body Massage Spray

Automatically mixes hot/cold water to desired temp thermostatic mixing valve automatically mixes cold and hot water together to make your desired outlet temperature.
Cold water supply temperature: 4-29C hot water supply temperature: 55-85C. Suggestions of water supply temperature 55-70C. Outlet water temperature range: 20-50C.
The safety temperature: 38C, you need to pressure the red button to change the higher temperature if you need.
Two water inlet pipes (connect Cold and Hot water) and three water outlet pipes
Temperature accuracy: Kept constant 1C for the setting.
Out water temperature stability: when the temperature of water intake kept constant, Cold water or hot water pressure change 50% , the outlet water temperature changes in 2C of setting temperature. The supply water pressure kept constant; the temperature for hot water supply can be increases from 60C to 75C(5C/min), the outlet water temperature changes in 2C of setting temperature.

Features:
  • Installation Type : Ceiling Mount
  • Material : Brass And Stainless Steel 304
  • Finish : Chrome, Brushed Nickel, ORB (see options
  • In the Box : Brass Thermostatic Shower Valve Stainless steel 304 Shower head
  • 4 X Ceiling mount shower arms
  • 3 X 4 Inch brass spray jets Brass
  • hand shower 1 X 3750px hose,
  • a hose fixer Installation Instruction
shower Fontana Shower System Thermostatic Shower Head Body Massage Spray


Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions

    shower
    Various sizes available

    Step 1:Step 2:
    According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

    Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.


    Step 3:Step 4:
    Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.






    Step 5:




    Hand Held Shower Installation Instructions

    Step 1: Step 2:
