How to Install BathSelect Lima Solid Brass Multi Color LED Rain Shower Head With Thermostatic LCD Mixer Valve And Handheld Shower In Dark Oil Rubbed Finish | BZ-5809


BathSelect Shower Head With Shower Mixer & Hand Shower

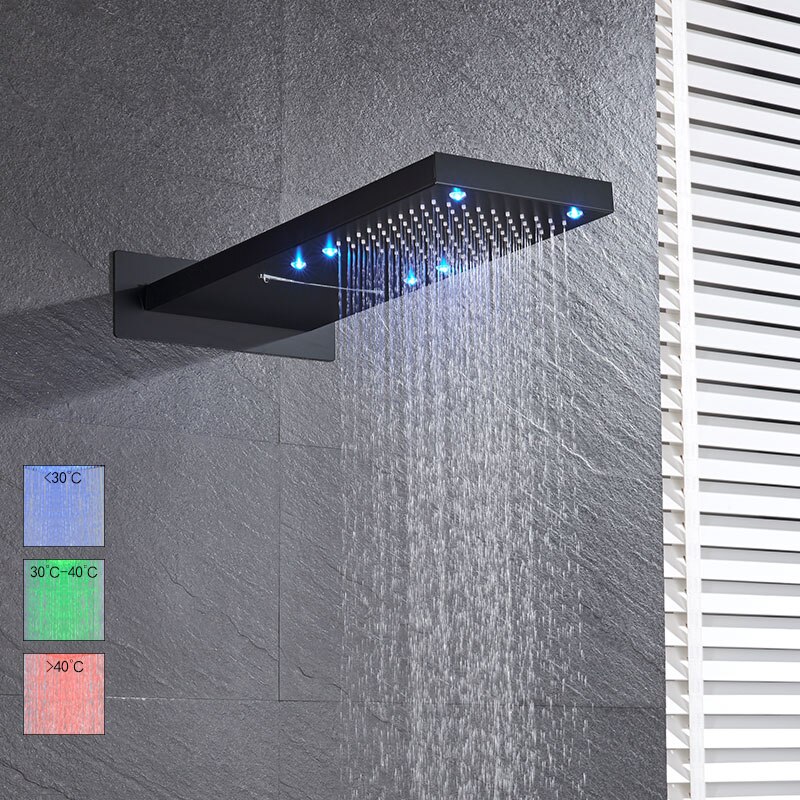

BathSelect wall mount latest and wonderful showerhead comes in a high-quality bathroom head shower. LED shower head will turn your shower into one that looks exceptional. If you already have bronze in your bath fixtures, it makes perfect sense to invest in oil rubbed bronze shower head. The water flow capacity is around 7-10 L/min. The valve core material is a high quality of ceramic. It is a wall shower head. It has self-cleaning silicon nozzle water and air mixture technology & Its shower head is a multifunctional mode like rainfall mode, waterfall, mode, water column hand shower mode. It's a great experience showering with the water falling directly overhead like rain or waterfall, offering you the luxury and relaxing shower enjoyment. This shower set has been made with premium-grade material.

Features:Visit Product Page
  • Brand Name: BathSelect
  • Model Number: BST10191
  • Type: Shower Set
  • Style: Contemporary
  • Surface Treatment: Dark Oil Rubbed Bronze
  • Type: Fixed Type
  • Feature of Shower head: Rainfall and Waterfall
  • Feature of LCD Mixer: Temperature control, 3 way function
  • Valve Core Material: Ceramic
  • Surface Finish: Brass
  • Bath & Shower Faucet Type: mount shower
  • Installation Type: Wall Mount

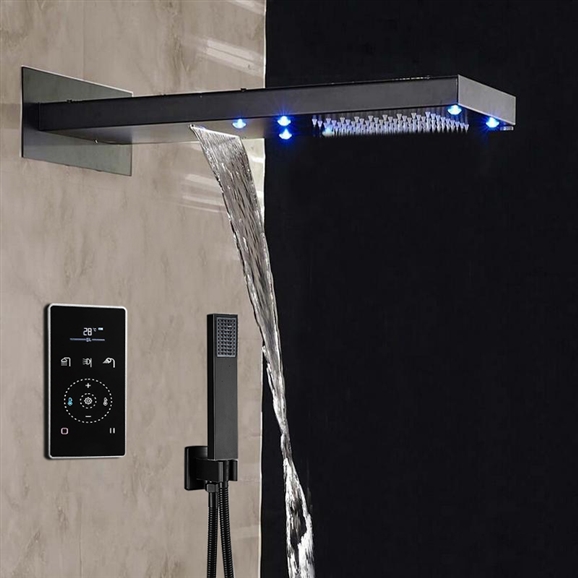

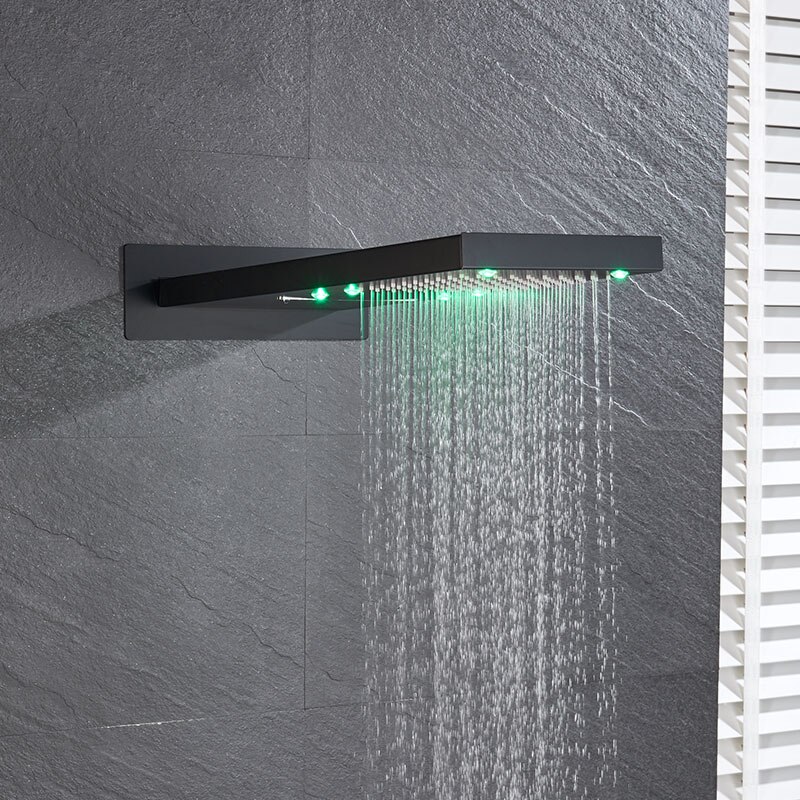

showerLima Solid Brass Multi Color LED Rain Shower Head With Thermostatic LCD Mixer Valve And Handheld Shower In Dark Oil Rubbed Finish

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

  • Shower Head Installation Instructions

    Size:

    Step 1:Step 2:
    shower

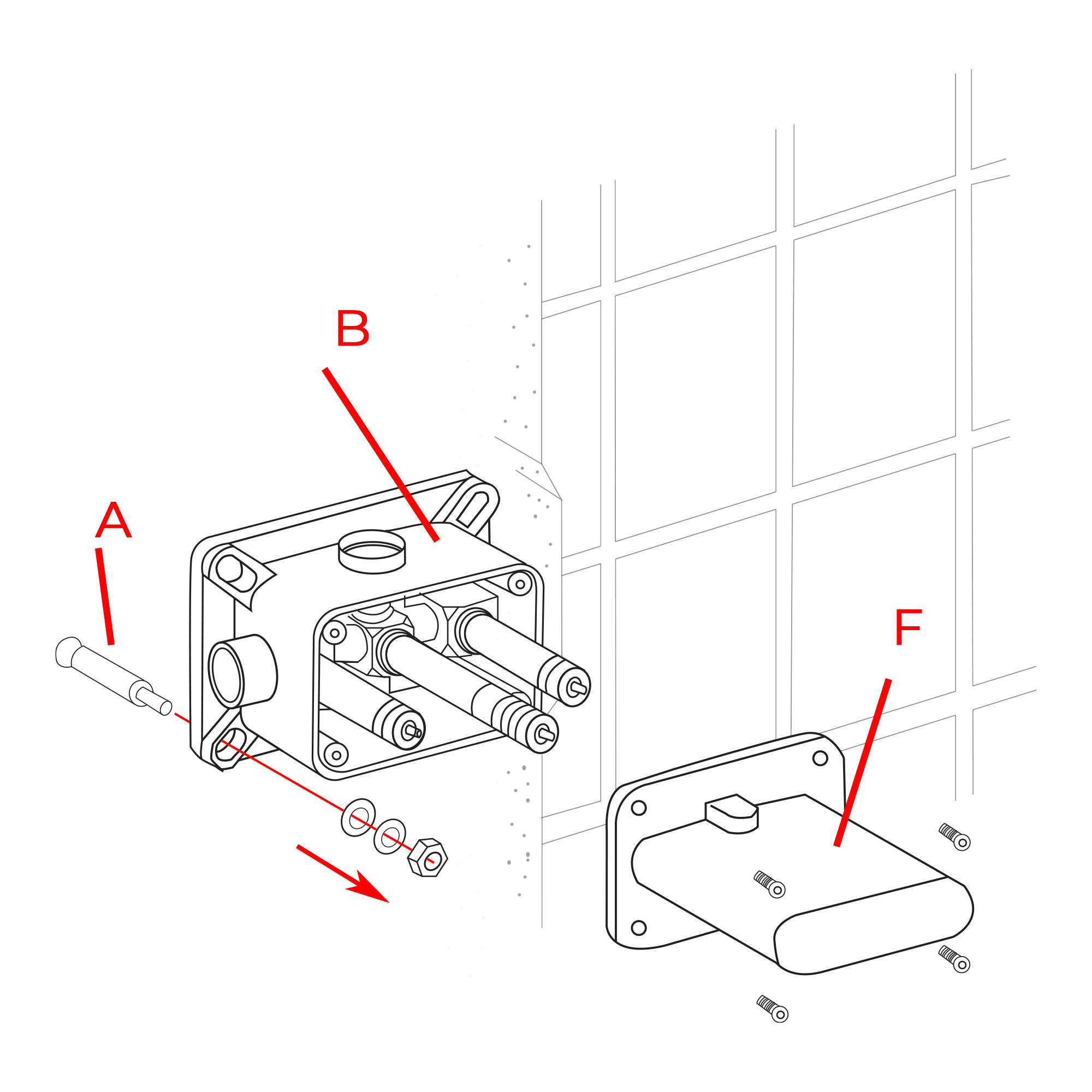

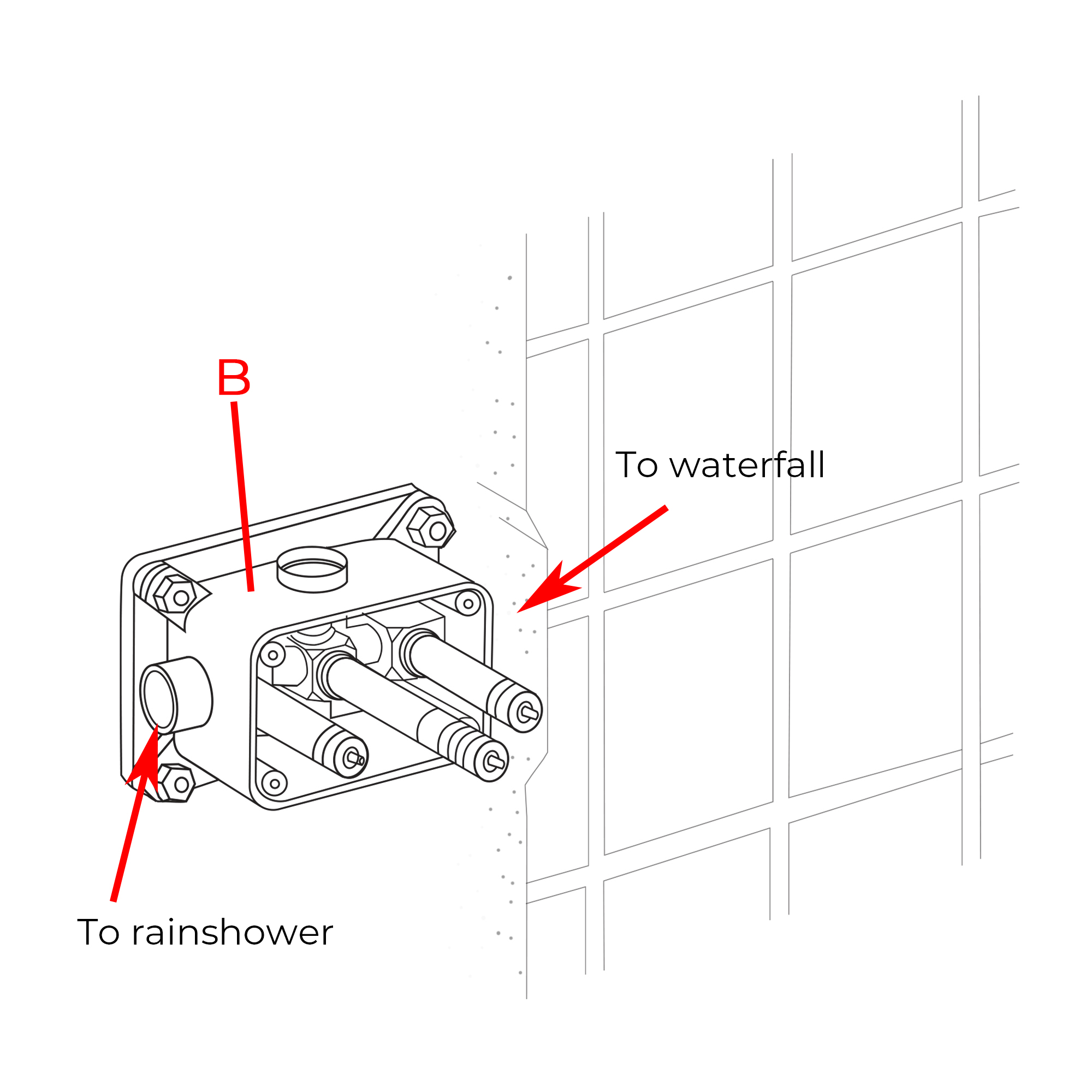

    Remove the protective cover (F). Mark the positions and drill holes to suit the anchors (A). Install the anchors (A) and fix the rough-in valve (B) into the wall with screws. Use a level to ensure that the rough-in valve (B) is straight and level. (Important: Flush the water supply to remove any dirt and debris before installing the valve body).
    Wrap Teflon tape around the pipe threads and connect water supply lines and in-wall pipes (not included) as desired to the rough-in valve (B). Turn on the water supply and open the cartridge to check for leakage. Then put on the protective cover and finish the wall surrounding the valve. (Note: Test the water pressure after the pipe connections have been made and before the finished wall material is installed).
    Shower Head Installation Instructions
    Step 3:Step 4:

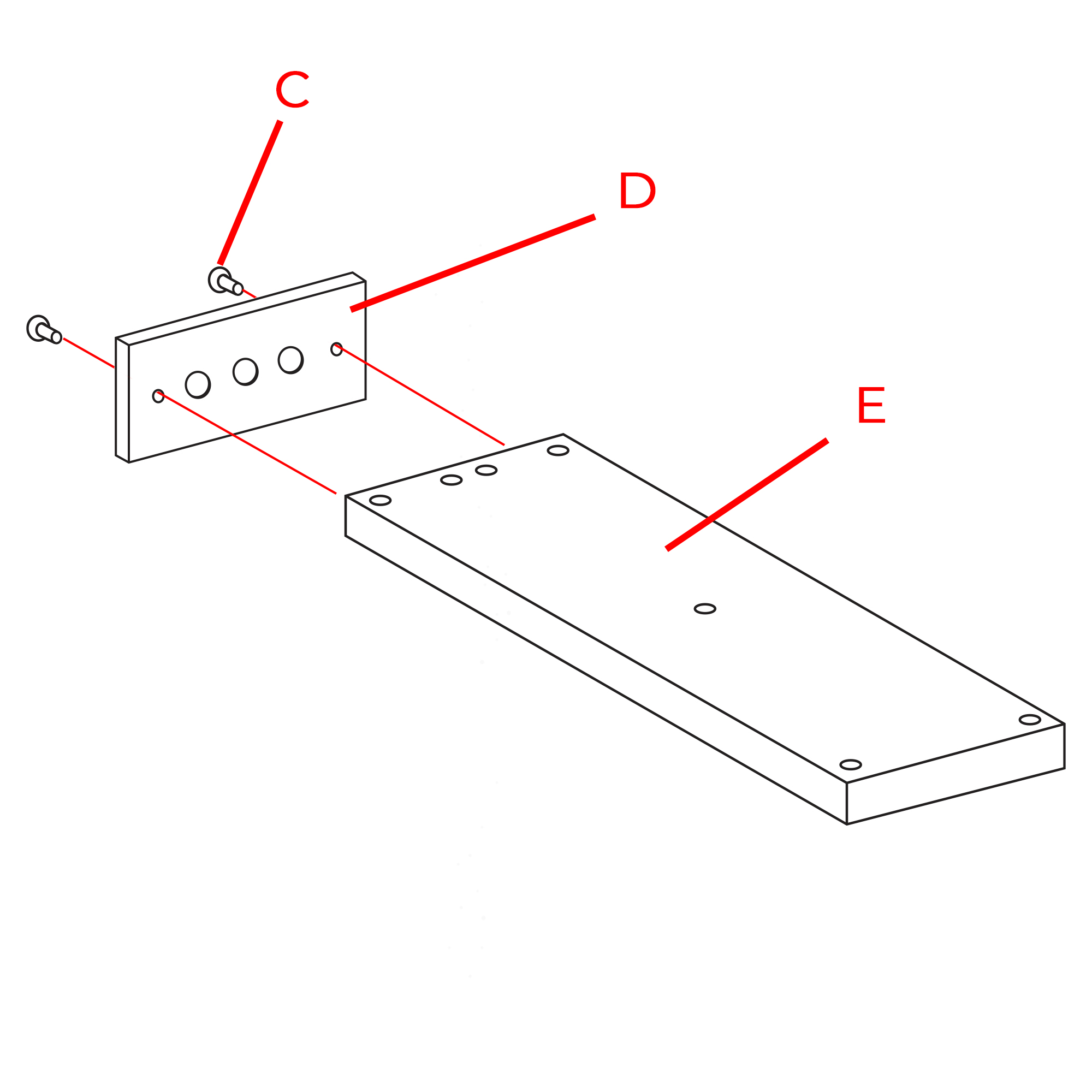

    Fix the escutcheon (D) to the showerhead (E) with screws (C).

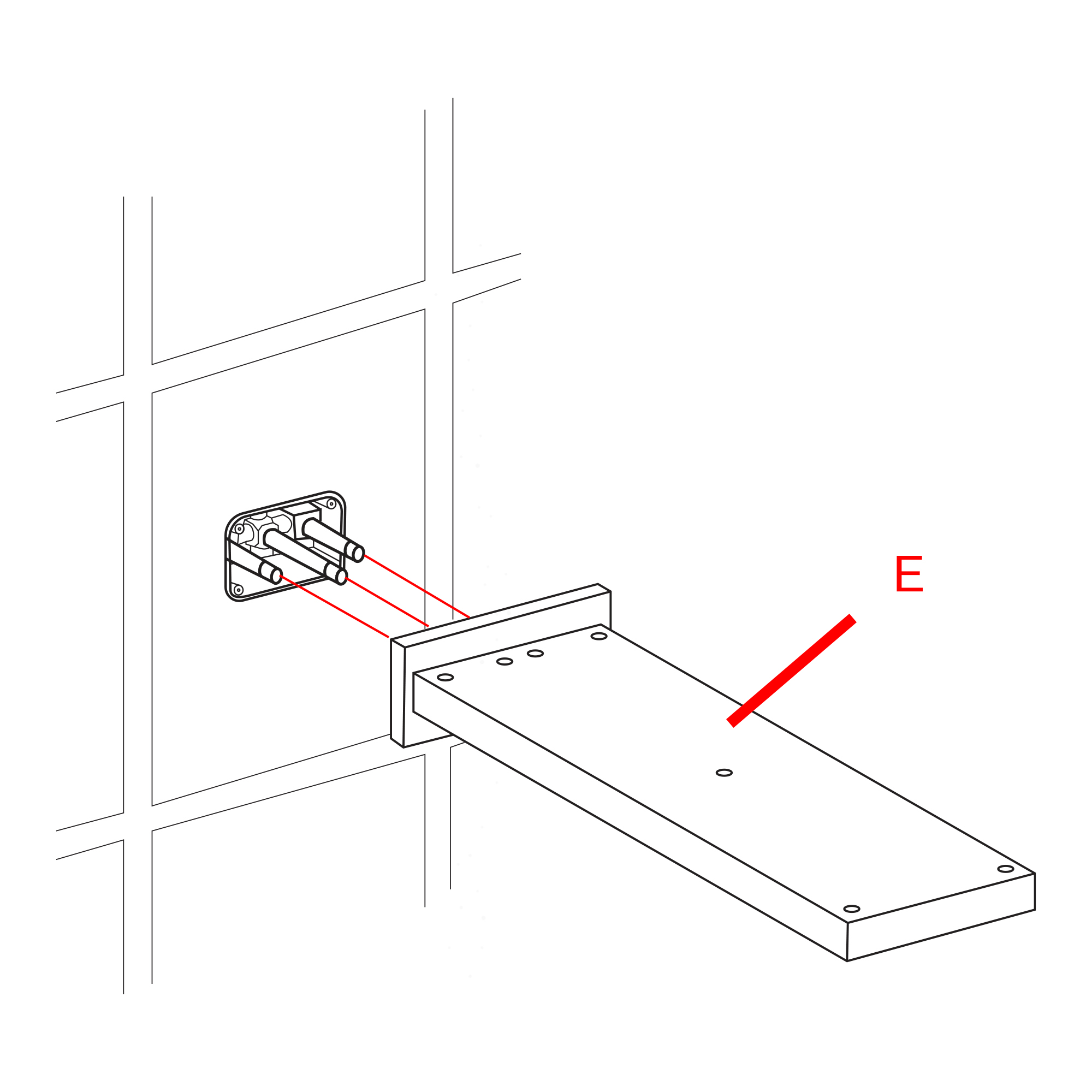

    Remove the protective cover when the finished wall is completed. Then, install the showerhead (E) and press it against the finished wall.
    Shower Head Installation Instructions

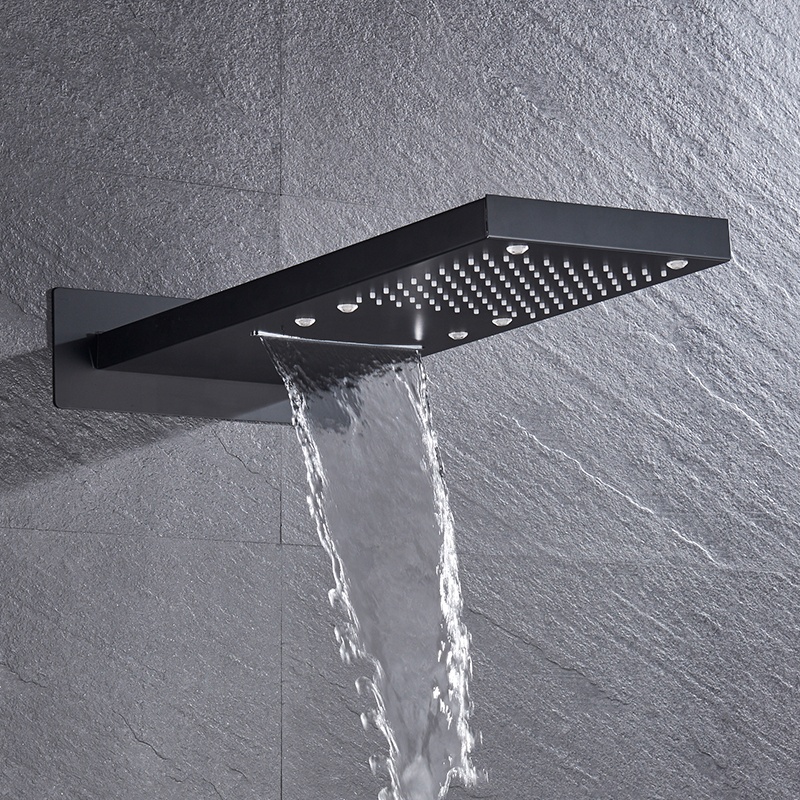

    Waterfall

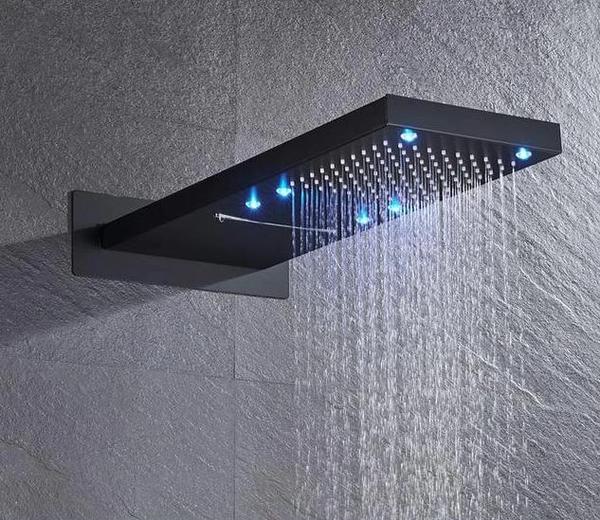

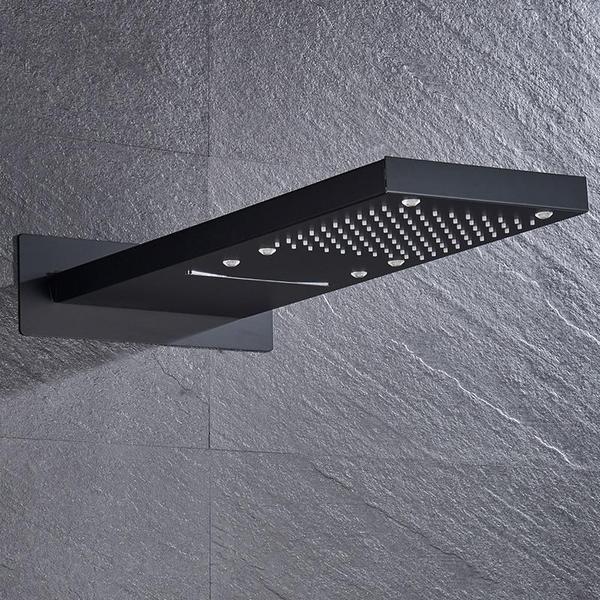

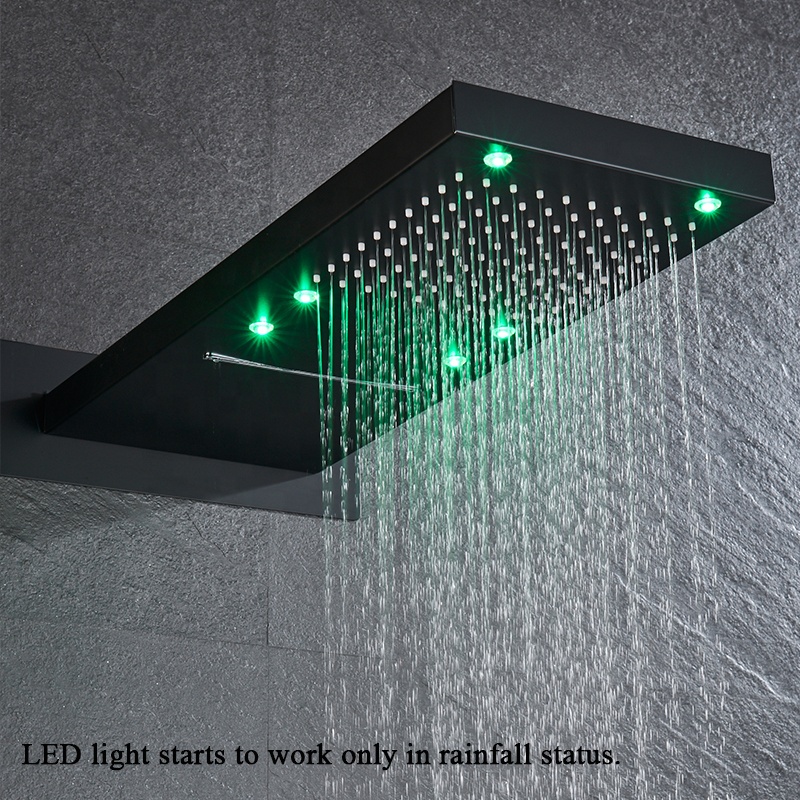

    Rainfall







    Hand Held Shower Installation Instructions




    Step 1: Step 2:
    Hand
    Held
    Shower

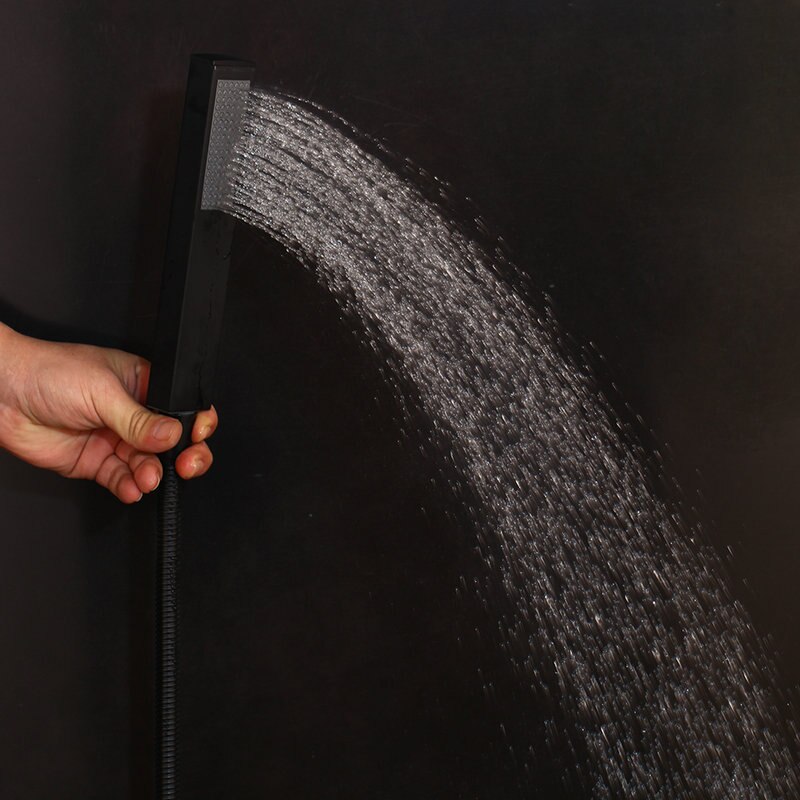

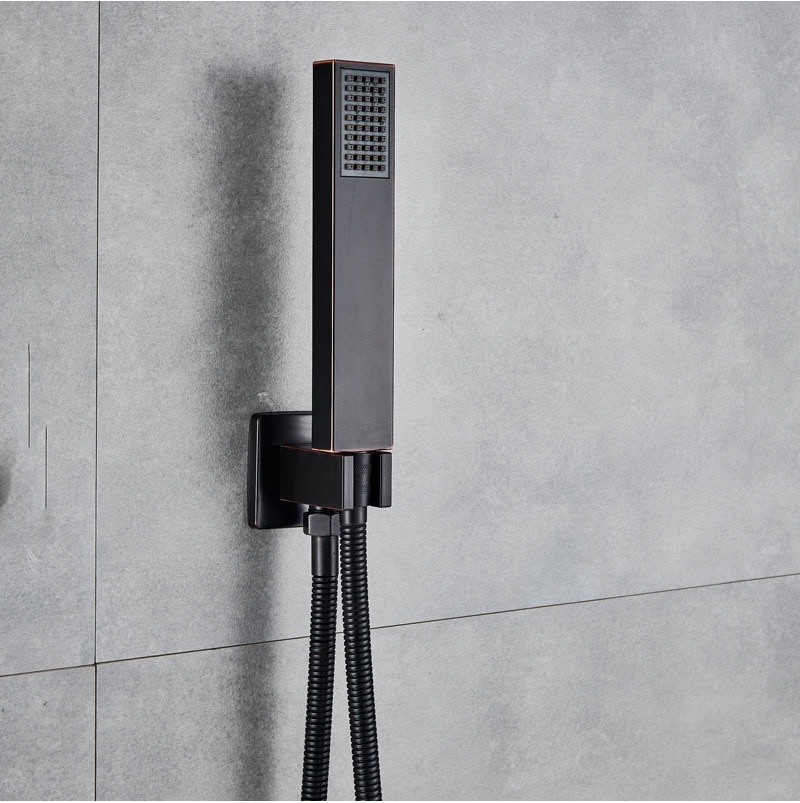

    Handheld Shower
    Step 3:

    Hand Shower Outlet Installation
    • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow.
    Note:
    This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
    • Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint.
    Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.








    Digital Shower Mixer Controller Installation Instructions
