How to Install Fontana Oil Rubbed Bronze ORB 10" Ceiling Mount Shower Arm For LED Showerhead | BZ-5985

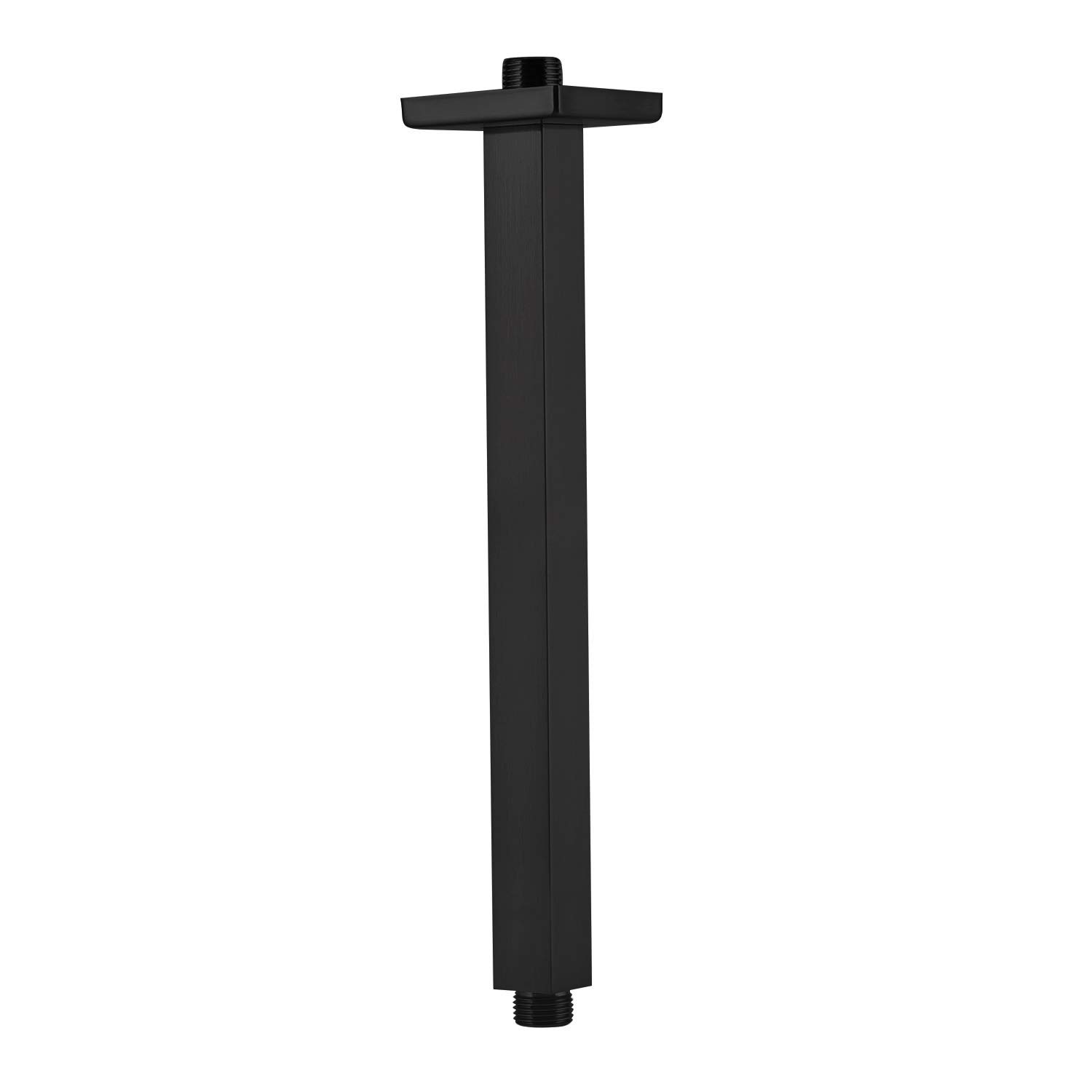

Overhead Shower Arm Square Ceiling Mounted - 10"

Beautiful shower arm for Fontana shower head with oil rubbed finish. It is suitable for home use and commercial bathrooms and complete with installation accessories. This awesome wall-mounted shower lets you adjust the angle of the showerhead. Fontana 10" long shower arm provides for ultimate quality, nice design and a perfect match with your shower head. This ceiling-mount shower arm allows you to install a Modern Rain or Square Rain showerhead lower in your shower for a more gentle rainfall. Full extra thick brass construction tube ensures durability, heavy-duty and long life use. A sleek gleaming oil rubbed bronze finish covers the entire fixture making it beautiful too look at as well as easy to clean. Standard Connection, tools free installation.


Features:

  • For commercial, home, bar, etc. use.
  • Solid brass construction.
  • Complete with mounting accessories.
  • Length : 25 cm - 9.8"
  • Type: Showerhead Accessories
  • Brand Name: FontanaShowers
  • Surface Finish: Oil-Rubbed Bronze (ORB)
  • Bathroom Faucet Accessory Type: Shower Arms
  • Model Number: BZ-5985
shower armFontana Oil Rubbed Bronze ORB 10" Ceiling Mount Shower Arm For LED Showerhead

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Ceiling Mount Shower Installation Instructions

    Step 1: Step 2:
    shower
    installation
    Dimensions: 2.5 In. X 2.5 In. X 10.0 In.

    Step 3: Step 4:
    Step 5:

    Step 1: Take Out the Old Shower Head
    You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.

    Step 2: Keep the Shower Arm Clean and In Good Shape
    After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits.
    Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.

    Step 3: Time to Add New Teflon Tape
    Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.

    Step 4: Connect the Showerhead
    As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it.
    After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.

    Step 5: Tighten the Showerhead
    On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead.
    Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
