Installation Instructions for Contemporary Infrared Waterfall Commercial Automatic Motion Sensor Faucet | BS-STI28763


An eye-catching design that is both functional and nice to look at; the sensor faucet has been developed with ease in mind. The electronic sensors are sensitive and intuitive to operate and the touch-free system means that you don’t need to worry about cross-contamination from germs. The intelligent microchip allows for a pre-set 30-second auto-shutoff and this, along with the drip-free design helps prevent water wastage. The faucet is simple to install and can be powered by 4 AA alkaline batteries (sold separately) or by AC power depending on facilities and preference. The design is extremely energy efficient and is suitable for both commercial and residential use. The product is fully ADA compliant assuring high quality, and it comes with 3 years warranty giving you extra peace of mind. While this cast brass electronic faucet comes in chrome finish. Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Features:
  • Type: Touchless Faucet
  • Faucet Mount: Single Hole
  • Type: Ceramic Plate Spool
  • Valve Core Material: Ceramic
  • Installation Type: Deck Mount
  • Surface Treatment: polished
  • Number of Handle: None
  • Material: Brass
  • Water pressure: 0.05 MPa - 0.8 MPa
  • Power: AC/DC
  • Dia.of inlet & outlet pipe: G1/2"
  • Flow Rate: 1.3 GPM
  • Inductive distance: 12-15cm

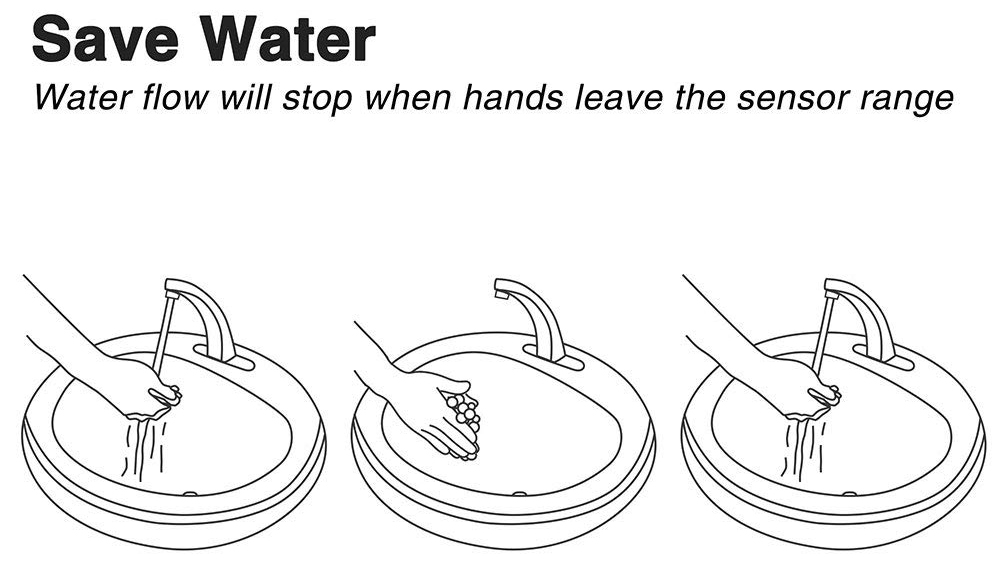

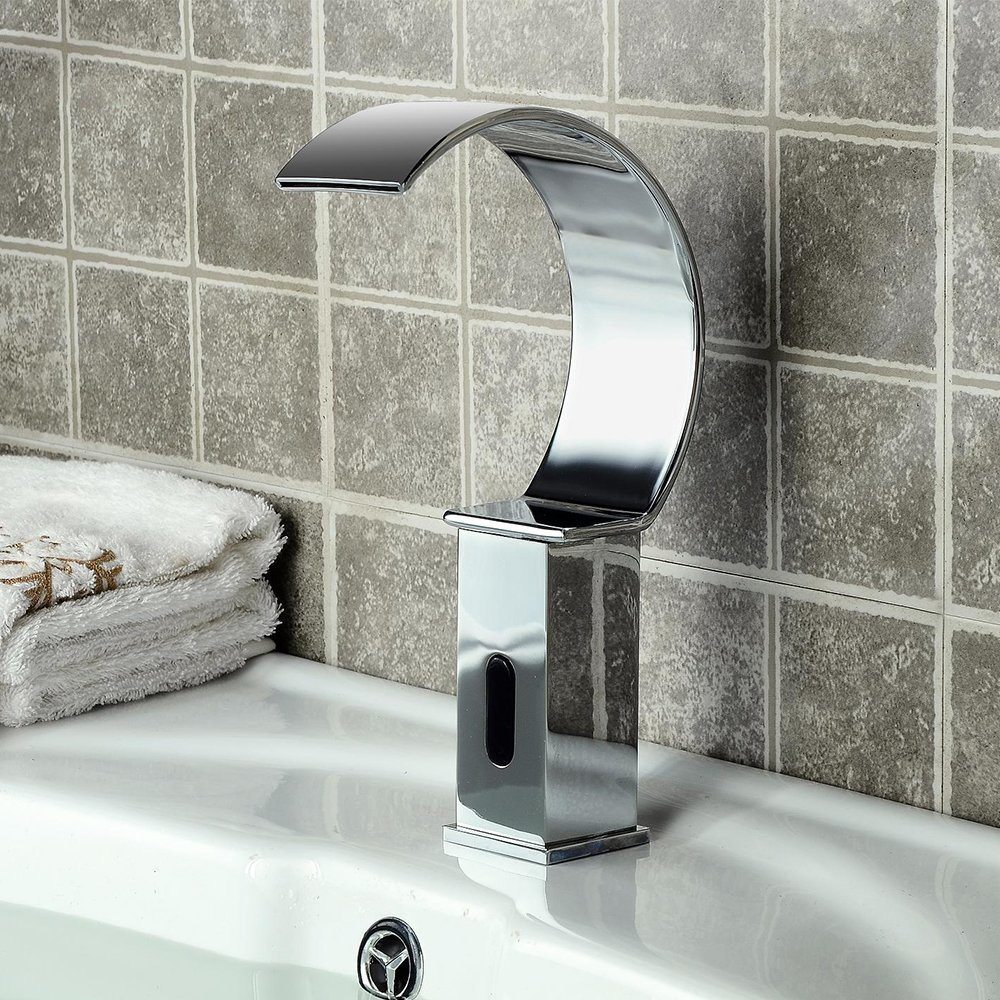

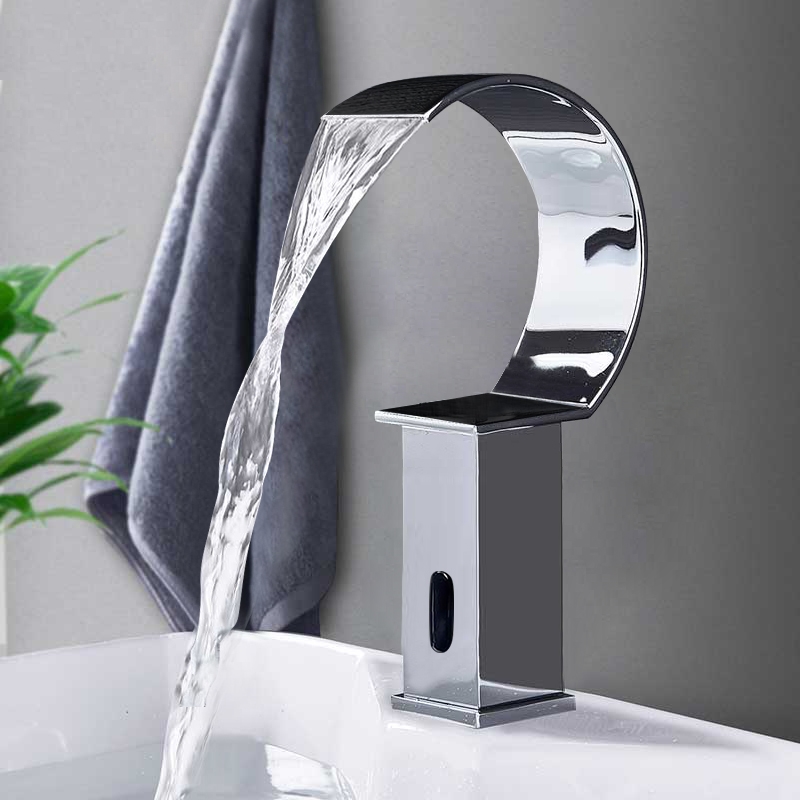

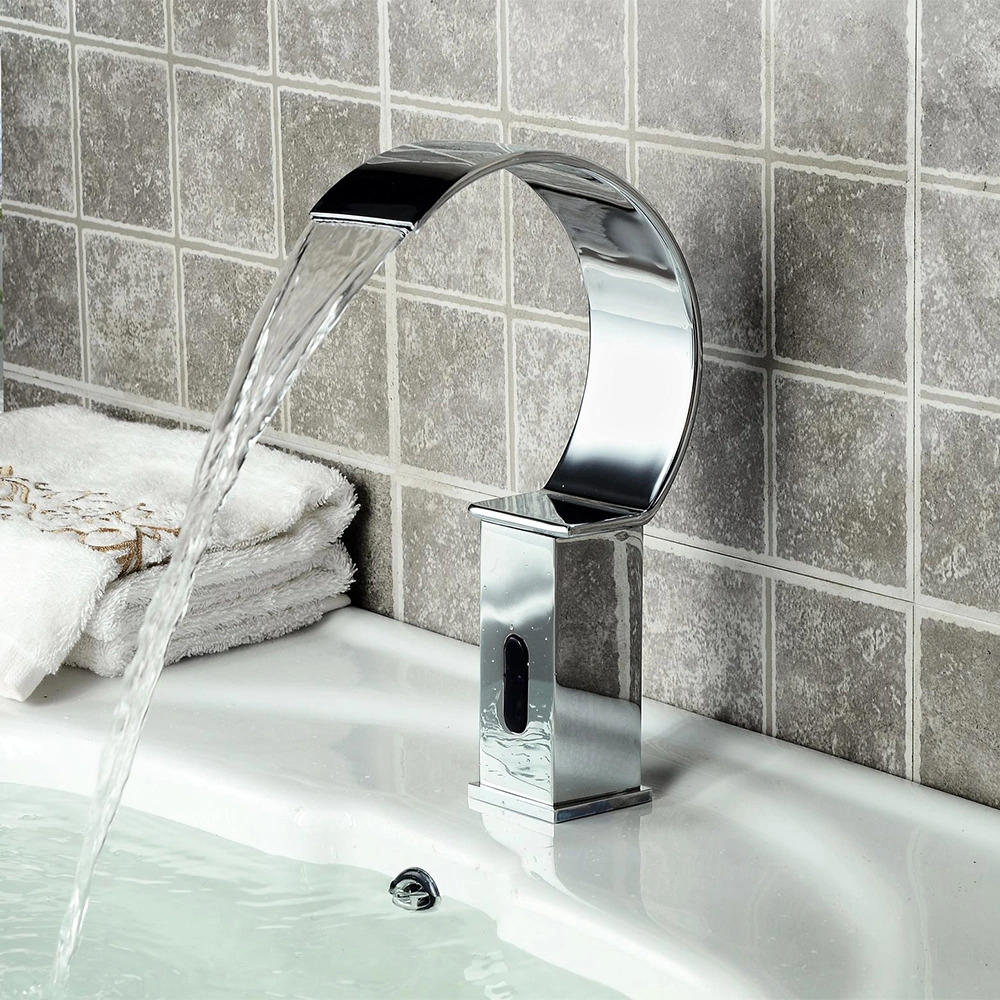

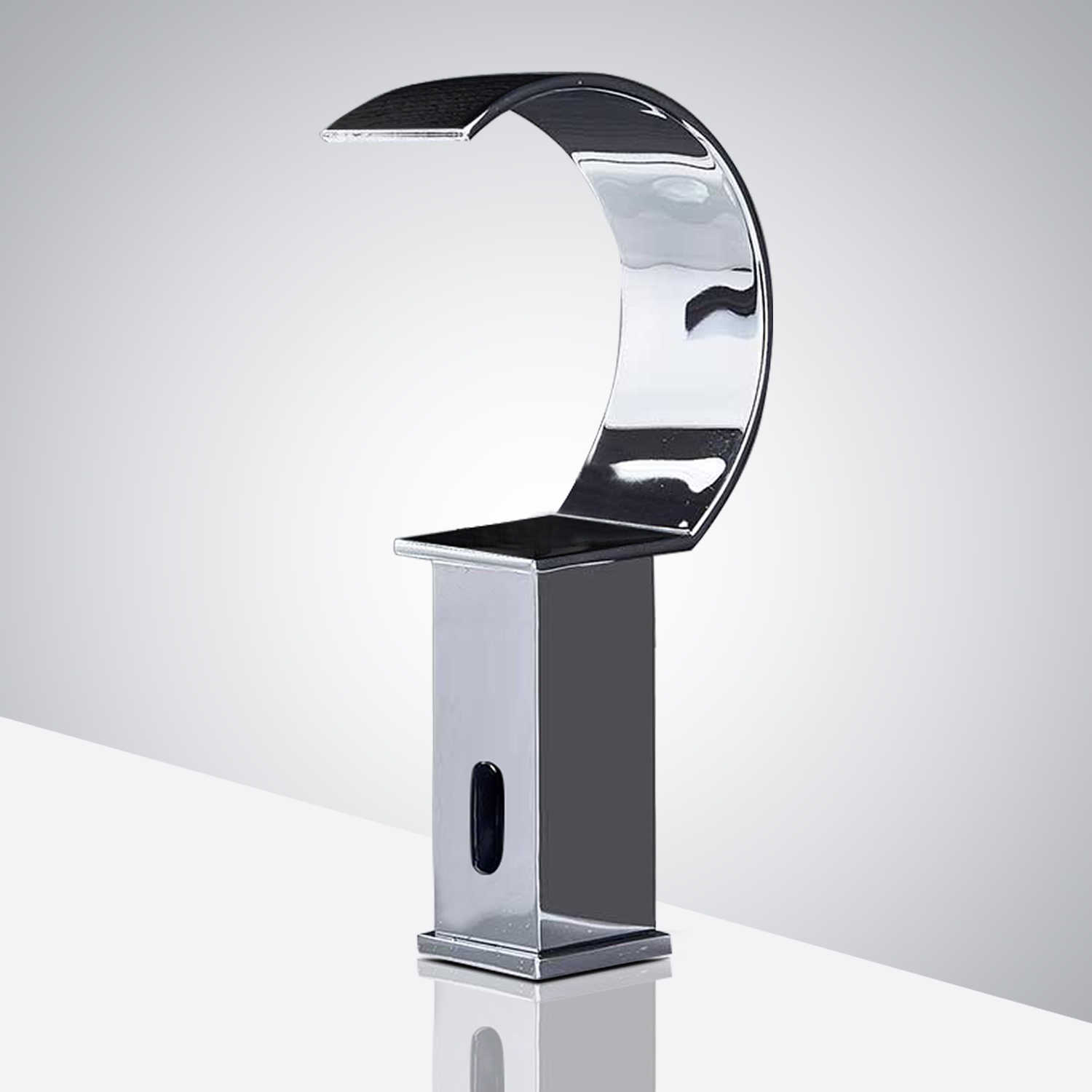

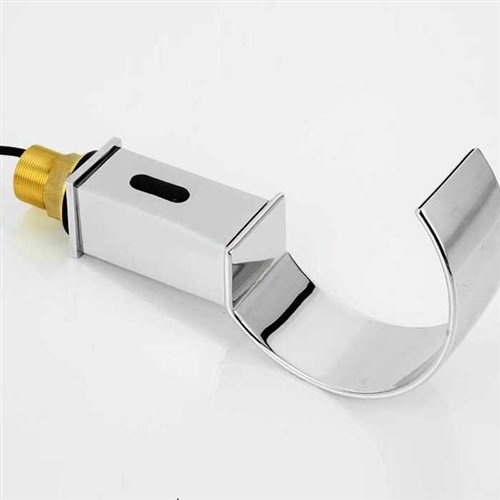

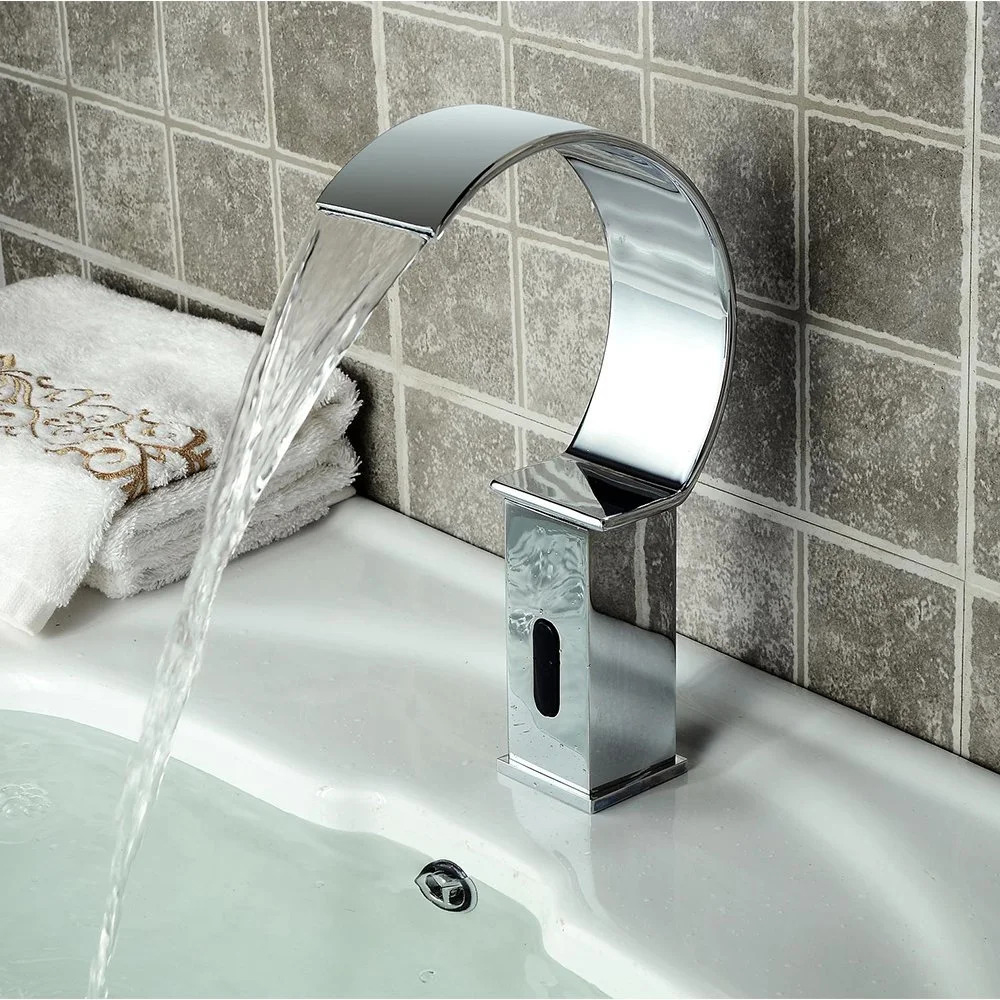

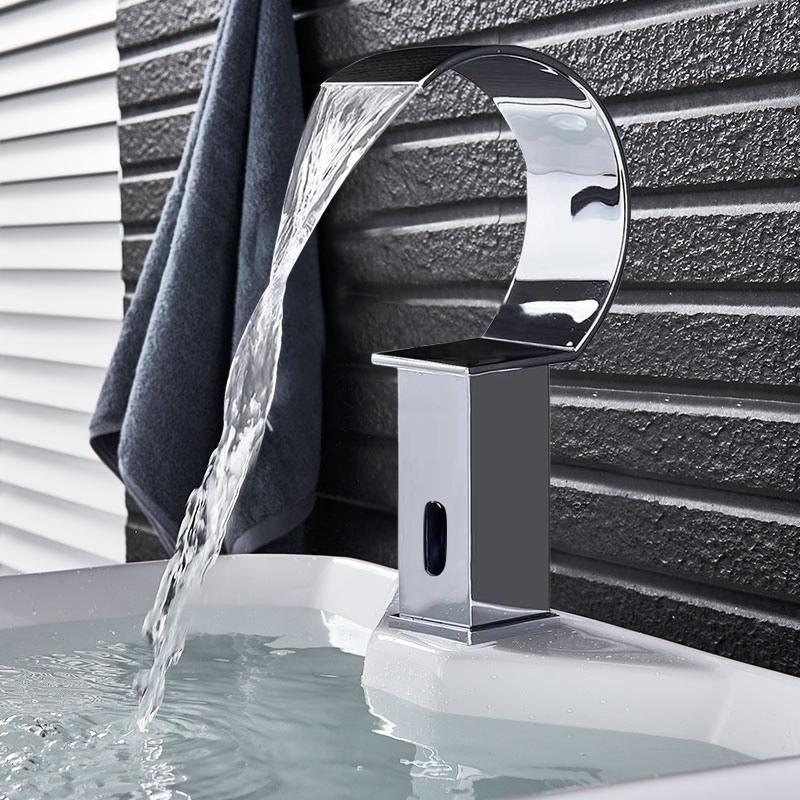

sensor faucet Contemporary Infrared Waterfall Commercial Automatic Motion Sensor Faucet

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Sensor Faucet Installations Instructions

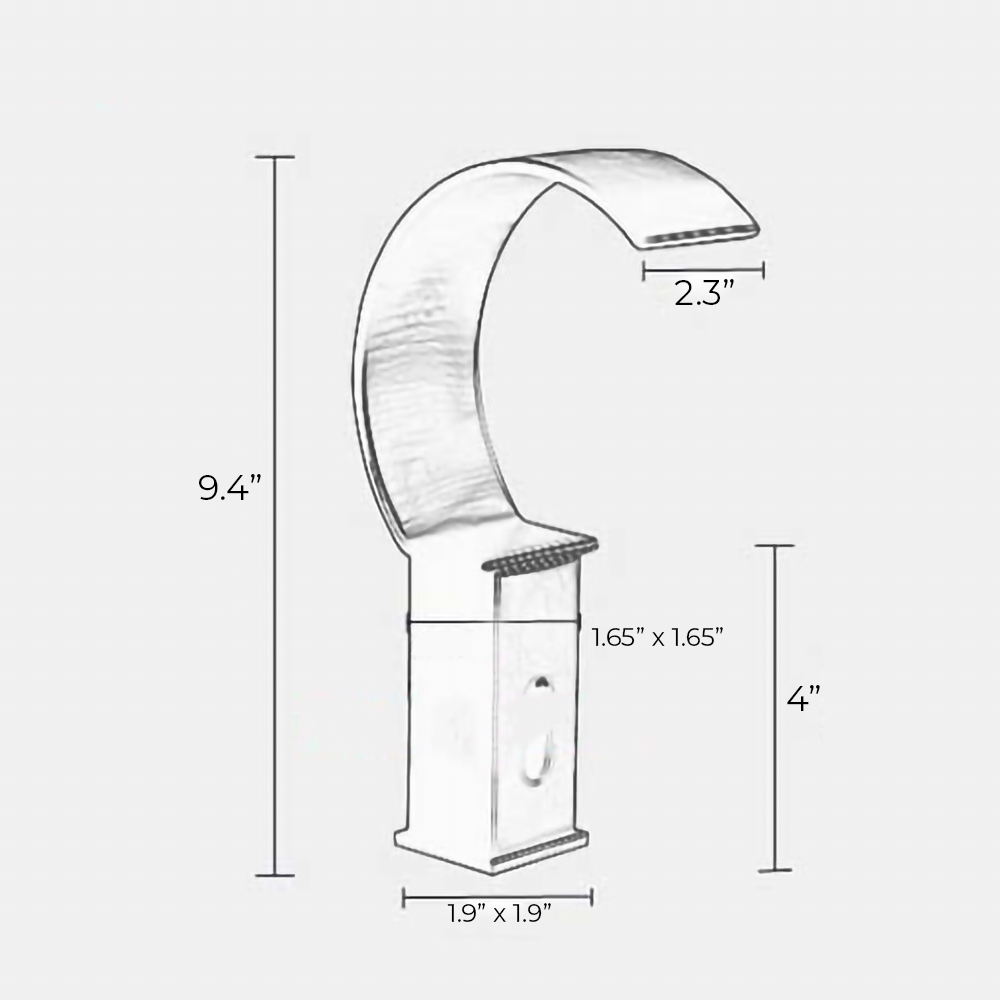

    Size:



    Parameters

    Sensing Distance

    12-18cm (adjustable)

    Power Supply

    AC 220V (50/60 HZ), DC 6V 4 AA alkaline battery

    Power Consumption in static

    ≤0.5mw

    Water Temperature

    0.1-80 degree

    Environment Temperature

    0.1-45 degree

    Suggest Water Pressure

    0.05-0.6Bar

    Switching Time

    <0.7s

    Operation Consumption

    <60uA

    Overall Power Consumption

    <0.5W

    Life Cycle

    500,000 times on/off

    Water supply pipe size

    DN15 (G1/2")

    Water flow

    8L/min

    Low Battery Indicator

    Red Led flash




    Battery (DC 6V) Only Control Box
    Step 1: Step 2: (Hot & Cold Connection)
    infrared



    Battery (DC 6V) & AC 220V Control Box
    Step 3: Step 4:


    Step 5: (Flush debris from waterpipes) Step 6: Hot & Cold Regulator


    Step 7: (Correct way for Hose)





    1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body.

    2. Insert hose, threaded pipe and data cable through the drilled hole of the countertop. Put rubber washer and metal washer onto the threaded pipe, screwing in mounting nut. Adjust the faucet body correctly and tighten the mounting nut with screws.

    3. Install the control box to the wall and fix it with screws.

    4. Add the rubber washer and screw supply elbow to the control box.

    5. Add rubber washers and connect water lines to the hot and cold inlets of the supply elbow. Then connect the hose to the water outlet and insert data cable into the control box and plugin.

    6. Make Connections to water supplies. Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts.

    7. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON).

    8. Turn the faucet on for 1 minute to flush any debris.

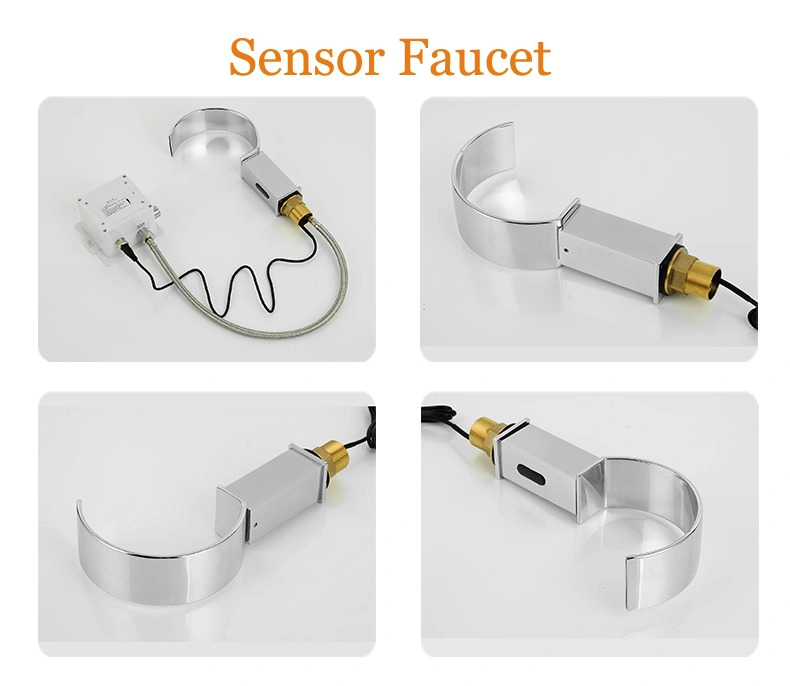

    Flexible Connecting Hose

    Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist.
    See above for recommended ways to fit the flexible connecting hose.

    Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.



    Control Box Installation Instructions


    Step 1: Step 2:
    control box
    Step 3: Step 4:
    Size: 5" x 5"

    AC Cable
    Step 5: Step 6:
    Inserting Batteries
    Your infrared spout is supplied with a back up battery pack (batteries not included). In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function.


    Before fitting the power supply box into position on the wall/floor, batteries (not included) will need to be fitted.

    1. Remove Power Supply Box Cover - Remove all four screws in each corner of the power supply box and remove the cover.
    2. Remove Battery Box - Remove the battery case from the power supply box and remove the screw in the center of the case.
    3. Insert Batteries - Insert 4 x AA batteries (not included) into the battery box ensuring they are inserted the correct way.
    Note: Only use 1.5V AA (LR6) Alkaline batteries (preferably => 2000mAh for good battery life).
    4. Replace Battery Box - Replace the battery case cover. Replace and tighten the screw. Insert the battery case back into the power supply box.
    5. Replace Power Supply Cover - Replace the power supply cover and tighten all 4 screws ensuring they are all fully tightened.

    Installation - Electrical Connections


    1. Position Power Supply Box
    Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible.
    Note: Ensure that the power supply box is fitted the correct way up (see opposite) and that the flexible hose will reach from the underside of the spout to the power supply box.
    Using suitable fixings for the wall type secure the power supply box to the wall.

    2. Connect Power Supply Cable
    Before starting any electrical work ensure the power supply is isolated. Wire the electrical power cable into a switched fused spur off the ring main. The blue wire should be wired to the neutral connection and the brown wire should be connected to the live connection.
    Important: The power supply box must be permanently connected to the fixed wiring of the mains supply using the factory supplied power cable.

    3. Plug In Power Cable
    Plug the power cable into the power supply box.

    4. Connect The Sensor Cable
    Plug the sensor cable from the spout into the power supply box to activate the infrared senor.


    Installation - Water Connections

    Connecting Water Supply
    A blended water supply is required to the inlet of the power supply box. Before connecting the water supply to the power supply box flush through the pipework to ensure removal of debris. Once flushed through turn off the mains water supply and close any isolating valves.

    Inlet Connection
    The inlet connection on the power supply box is a 1/2” BSP male threaded connection. Connect a 1/2” BSP female connector to the inlet connection ensuring a suitable sealing washer is used to create a water tight connection.

    Outlet Connection
    The outlet connection is a standard 1/2” BSP male threaded connection. Connect the flexi hose (supplied) to the outlet connection, ensuring it is tightened fully.
