How to Install Reno 40x20" Luxury Bath Shower Faucet Set Stainless Steel Rain Shower Head With Brass Valve, Hand Shower And Massage Spray | BS-40LBSF


Features:

  • Type: Bath & Shower Set
  • Cold/Hot Water Control Type: Single Holder Dual Control
  • Style: Contemporary
  • Surface Treatment: Polished
  • Type: Fixed Support Type
  • Valve Core Material: Ceramic
  • Surface Finish: Chrome
  • Bath Shower Type: Shower Set
  • Model Number: 40LBSF
  • Head shower Material: 304 stainless steel in brushed
  • Showerhead Size: 20"x40"
  • Thread: G1/2"
  • Shower head Water flow: 14-18L/min
  • Body jets size: 4 inches
  • 6 body jets flow rate: 48L/min
  • Valve: ceramic
  • Valve style: hot and cold mixed water
  • Install: ceiling mount
  • Hand shower,valve,body jets material: brass polish
  • Number of Handles: 4

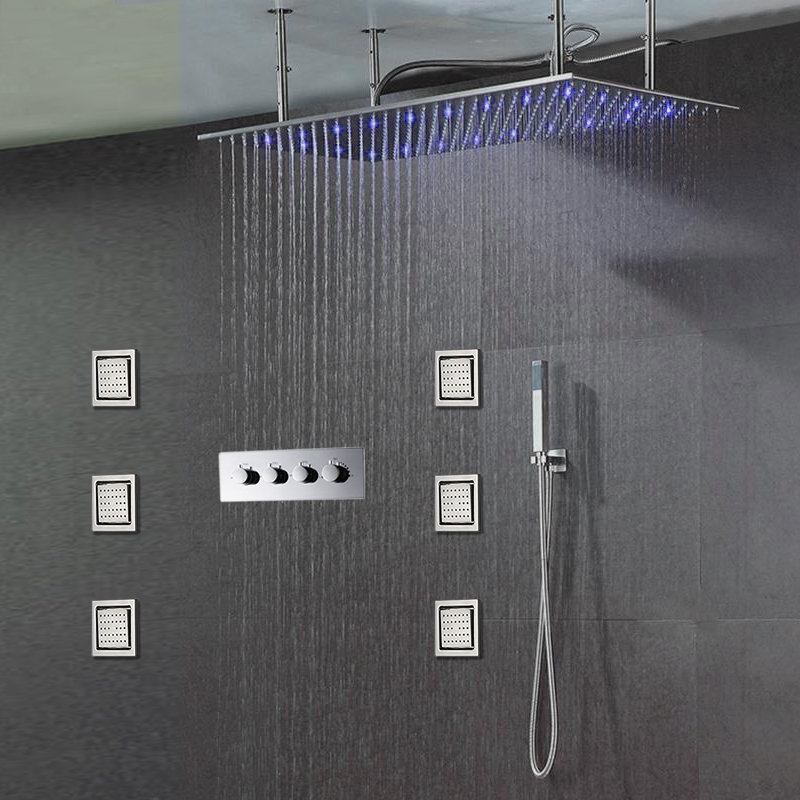

shower Reno 40x20" Luxury Bath Shower Faucet Set Stainless Steel Rain Shower Head With Brass Valve, Hand Shower And Massage Spray

Important Note:

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.

  • Shower Head Installation Instructions

    shower

    Step 1:Step 2:
    According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.

    Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.


    Step 3:Step 4:
    Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.

    2 water inlets so the water disperses equally throughout the showerhead.




    Step 5:




    Hand Held Shower Installation Instructions



    Step 1: Step 2:
