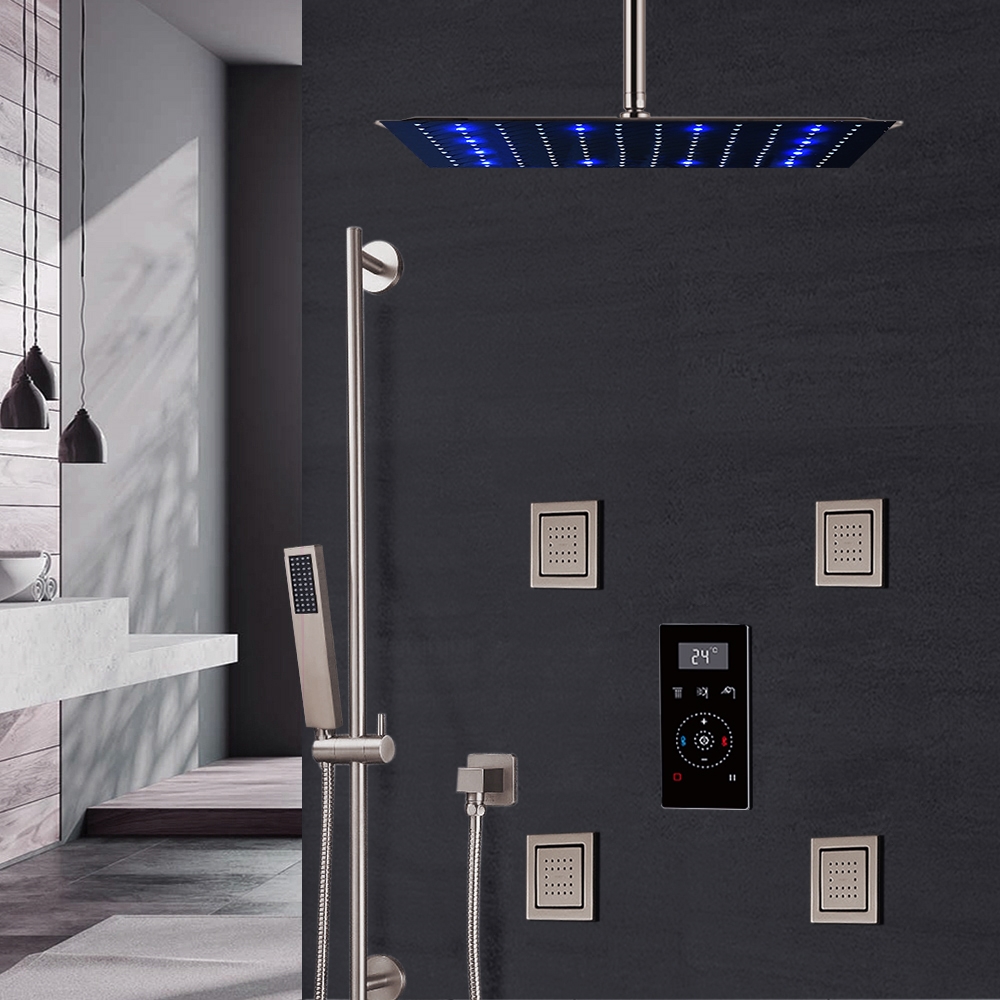

How to Install BathSelect Brushed Nickel Ceiling Mount Rainfall Shower Set With Digital Thermostat Mixer Jet Sprays And Slide Bar Handshower | BS-5674D
This Brushed Nickel Rainfall Shower Set is a ceiling mount shower with brushed nickel plated finish and comes with a handheld shower. When it comes to new bathroom upgrades, BathSelect is offering shape, finishes, and styles that you've been looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the most trendiest finishes across decor styles in the bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes.
BathSelect Brushed Nickel Ceiling Mount Rainfall Shower Set Features
Shower system includes ceiling mount rainfall shower head, thermostatic 2-way in-wall diverter.
Thermostatic technology keeps shower temperature ± 1 degree Celsius.
Diverter trim measures 5-7/8" L x 11-1/4" H. Diverter includes the valve and metal lever handles. Features 1/2" IPS inlets, and controls water flow between 2 shower outlets.
Decorative base plates measure 2-3/8" L x 2-3/8" H.
The flow rate is 2.6 GPM
Features:
Visit Product Page
Brand Name: BathSelect
Model Number: BZ-5674N
Type: LED Shower Set
Valve Core Material: Ceramic
Surface Treatment: Brushed
Surface Finish: Brushed Nickel
Shower Head Material: Brass
Installation Type: Ceiling Mount
Four Body Sprays
Shower Head Function: Rainfall with Digital Thermostatic Mixer
Simultaneous use of shower head and jet sprays
Shower Arm Included : Yes
shower
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty may be voided.
Shower Head Installation Instructions
Step 1:
Step 2:
shower installation
Step 3:
Step 4:
Step 5:
Step 6:
1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon.
2. Insert the new arm into the fitting in the ceiling and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with adjustable wrench.
3. Thread the new shower head onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish.
4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary.
5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.
