Installation Instructions for Arlon LED Single Handle Bathroom Sink Faucet | BS9392
Single Handle Deck Mount LED Faucet
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty may be voided.
Faucet Installation Instructions

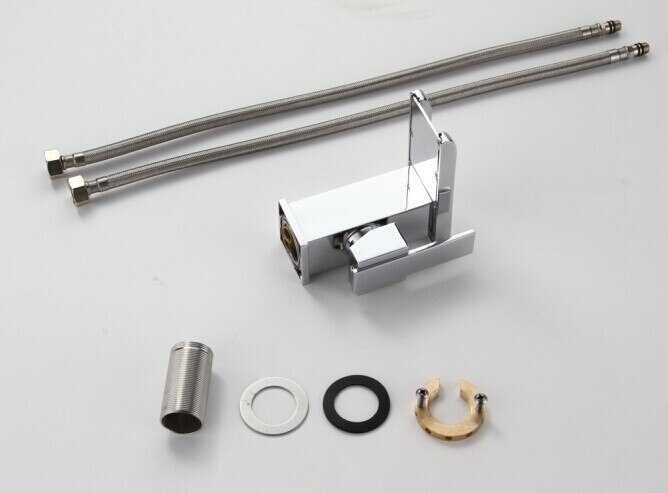

Step 1: (Assemble Parts)

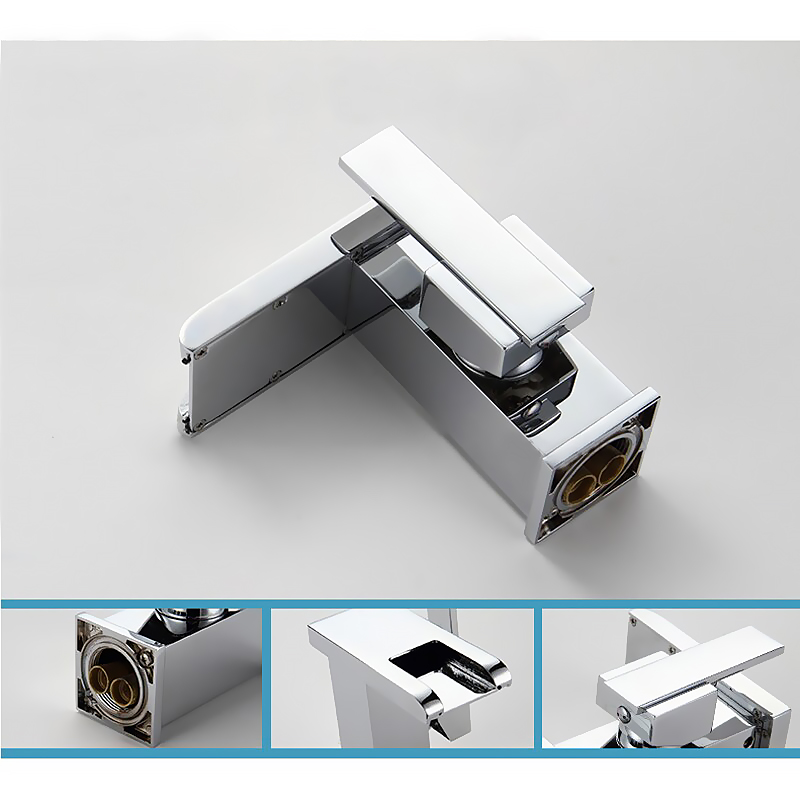

sink faucet
Step 2: (Mount Faucet)

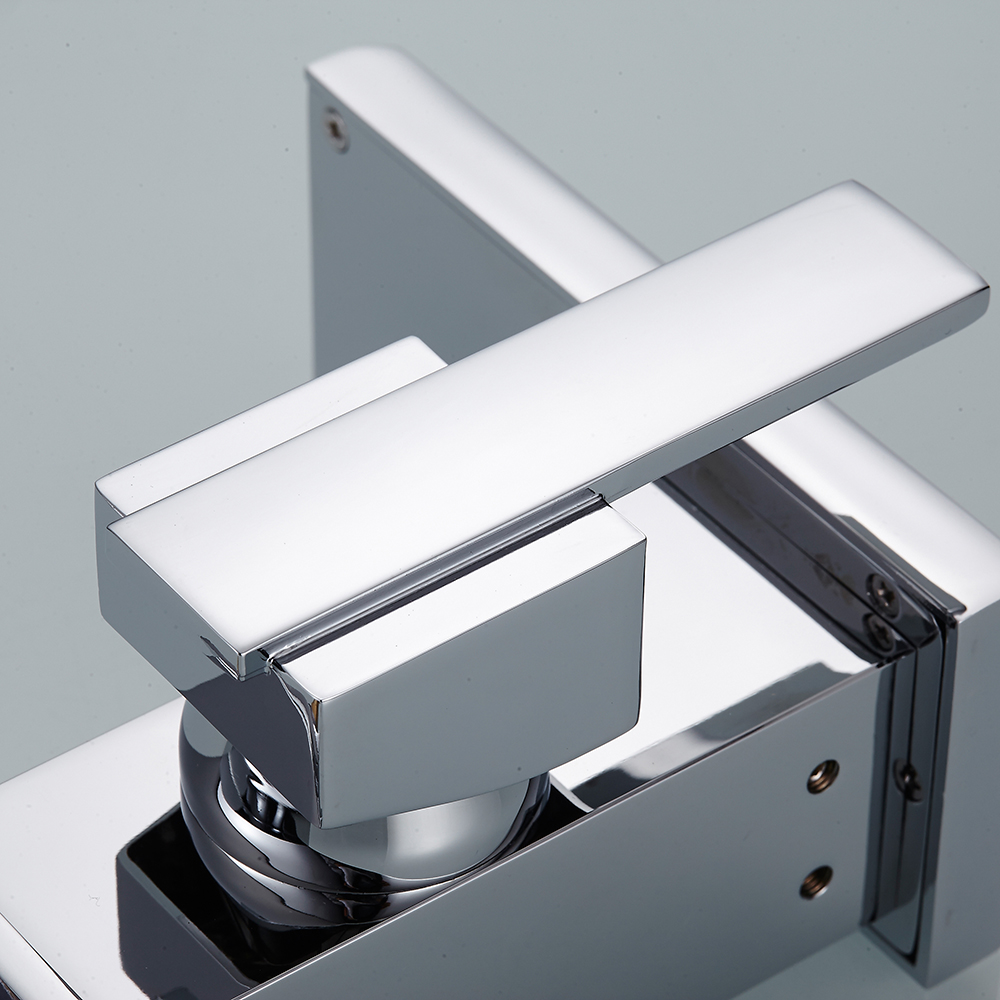

faucet
Step 3: (Flush Debris)
Step 4: (Connect Water pipelines)
1. Remove the mounting nut, metal washer, and rubber washer from the threaded pipe. 2. Fit the O-ring into the groove of the faucet body. Screw waterlines into the corresponding screw-hole of the faucet body. 3. Insert waterlines and threaded pipe into the hole of the sink. 4. Install rubber washer, metal washer, and mounting nut back to the threaded pipe. Adjust the faucet body correctly and secure with mounting screws tightly. 5. Connect waterlines to angle stops. Turn on the angle stops and check for leaks (DO NOT TURN FAUCET ON). 6. Turn faucet on for 1 minute to flush any debris.
Important: Turn on hot and cold water supplies and flush water lines into a container for one minute. This flushes away any debris that could cause damage to internal parts.

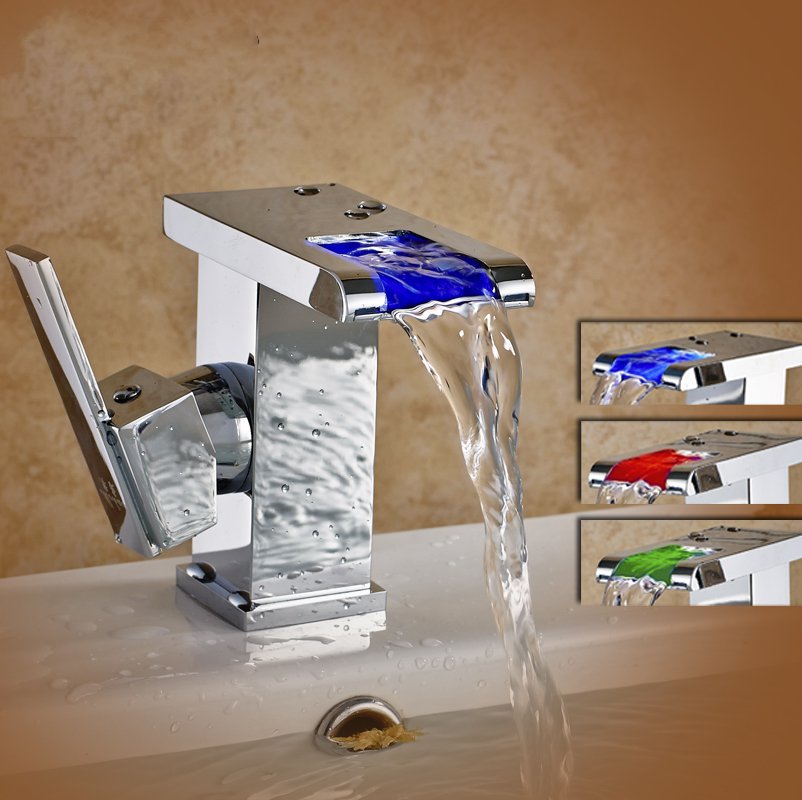

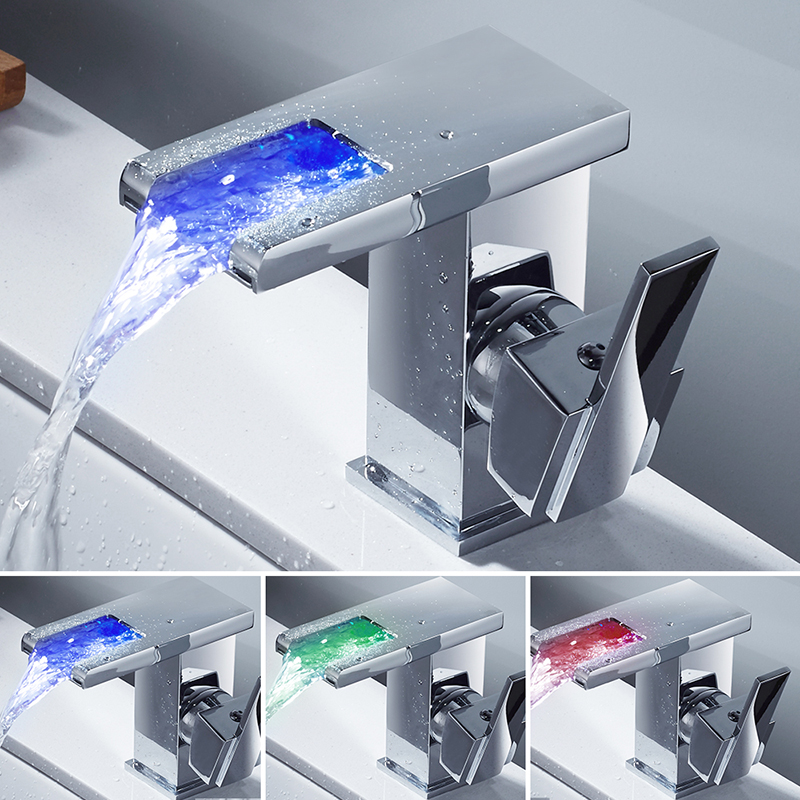

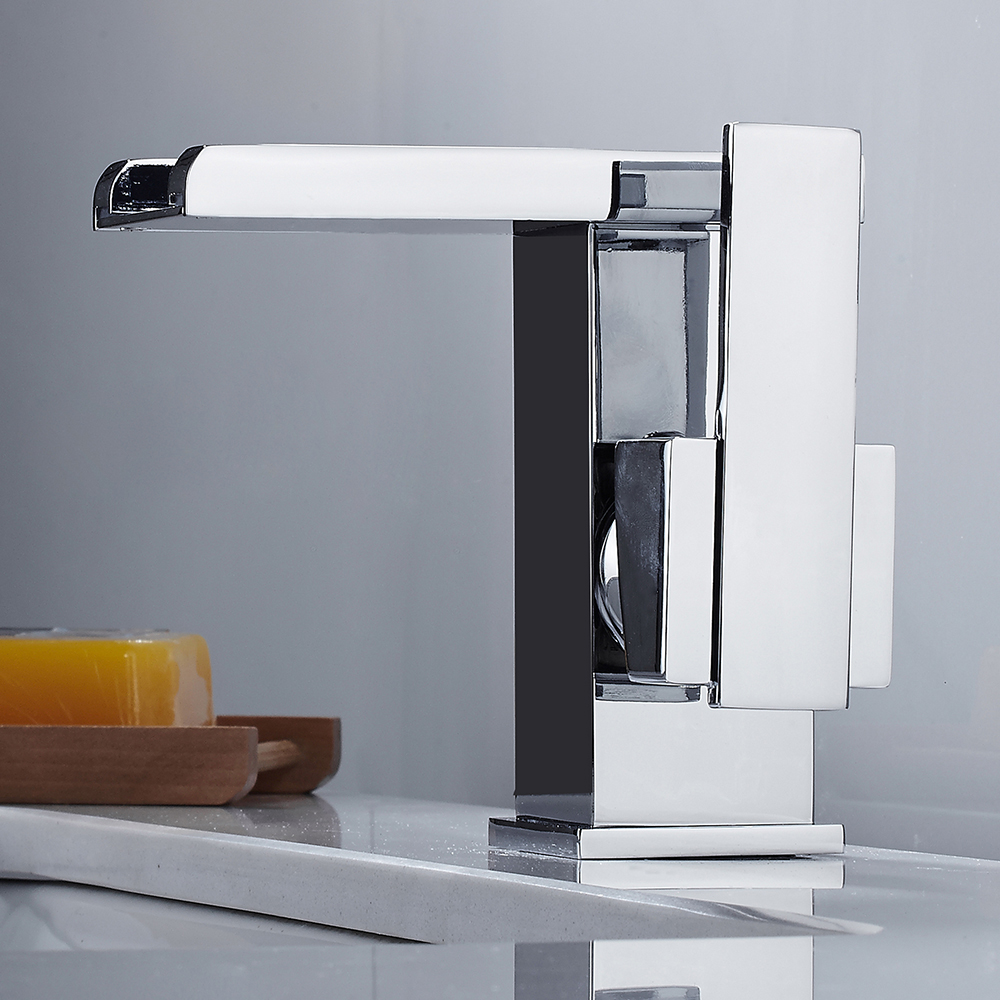

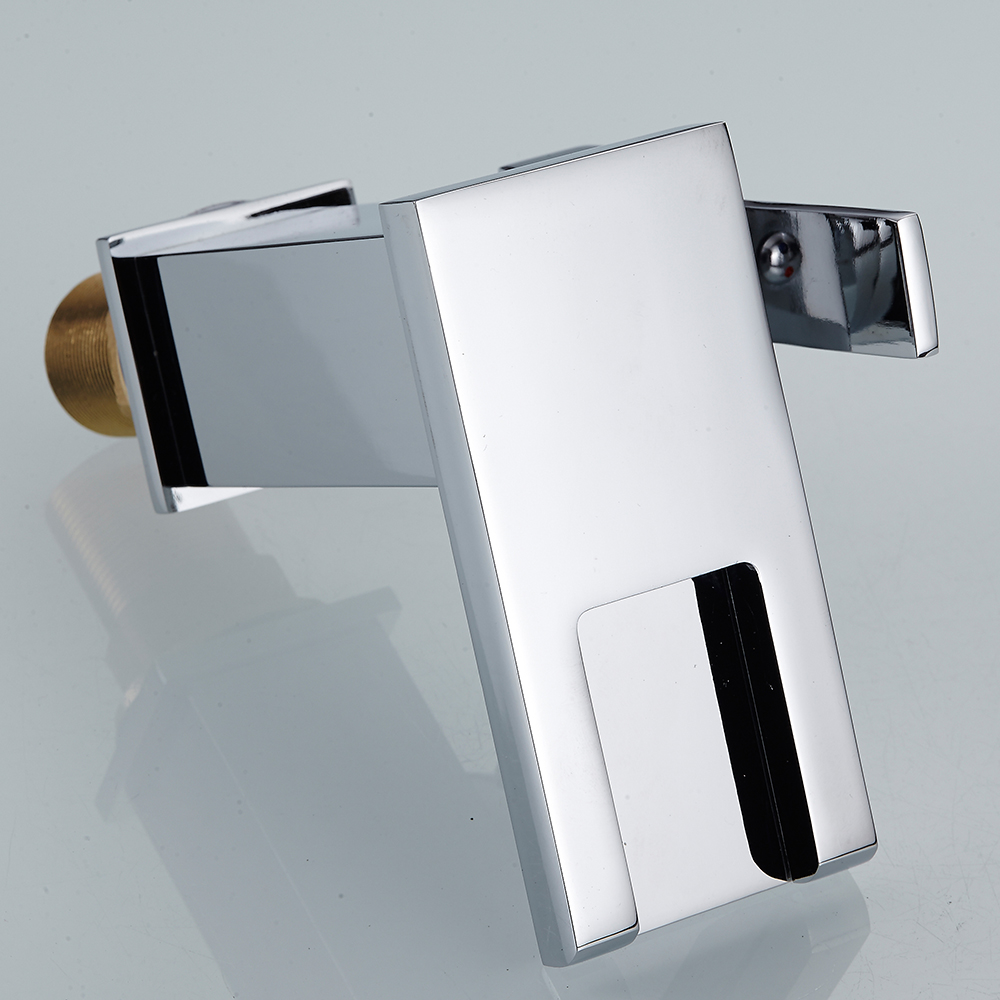

LED Waterfall Cold and Hot Water Faucet(Water Power)

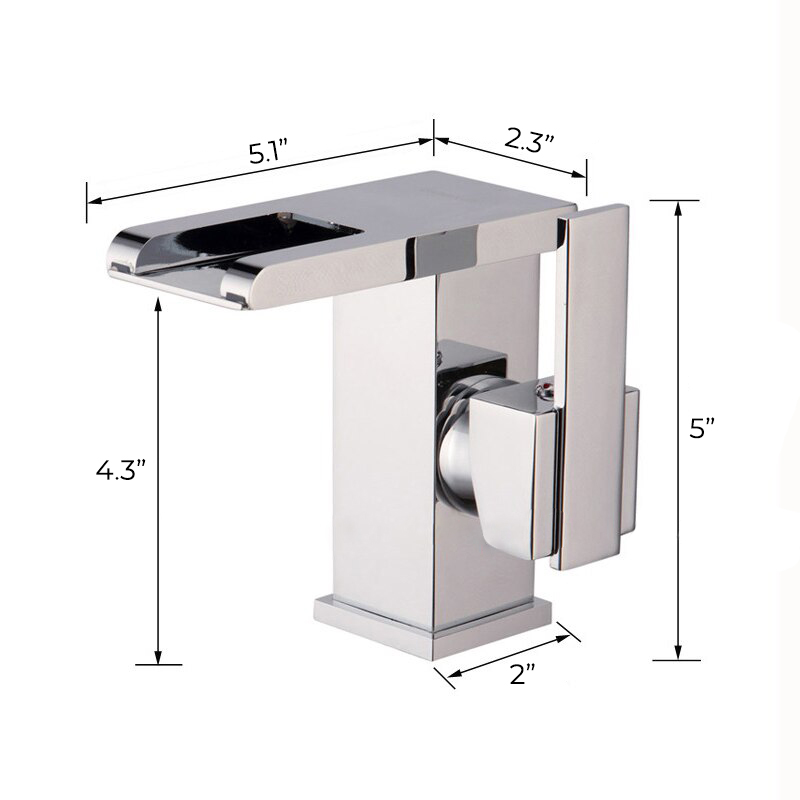

Overall Height:125mm(4.9 inch)
Spout Height:105mm(4.1 inch)
Spout Length:125mm(4.9 inch)
------------------------------
LED Information:
LED Color: Blue, Green, Red

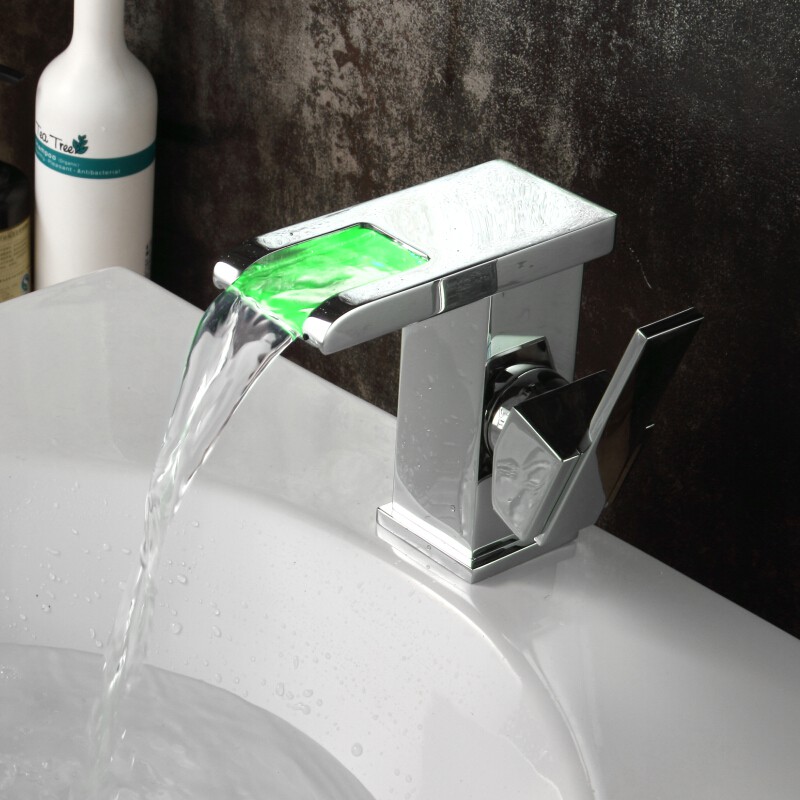

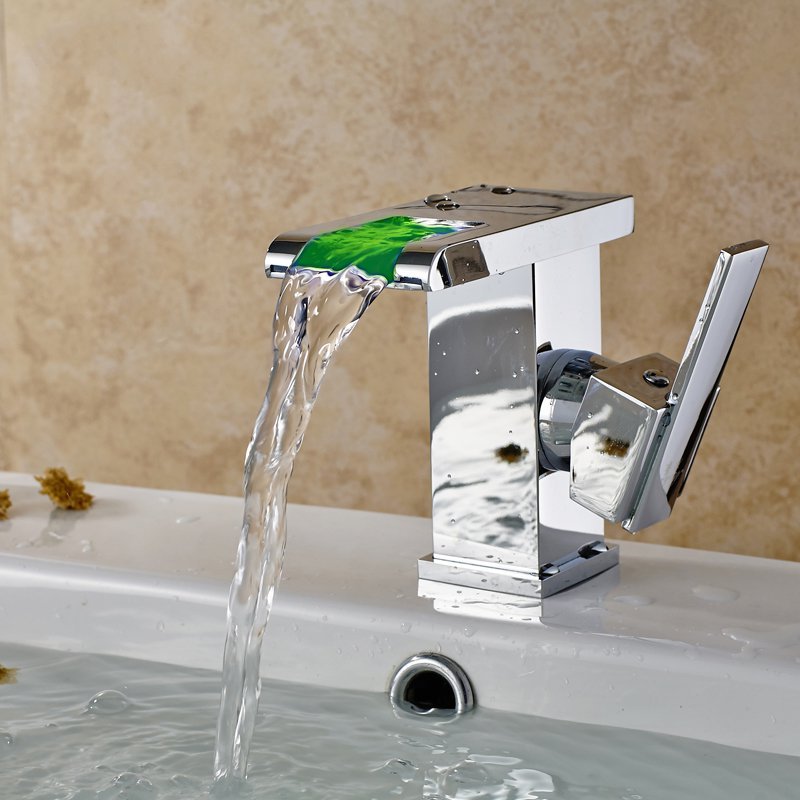

LED turns Green between: 0-30 °C ( 32-86 °F )

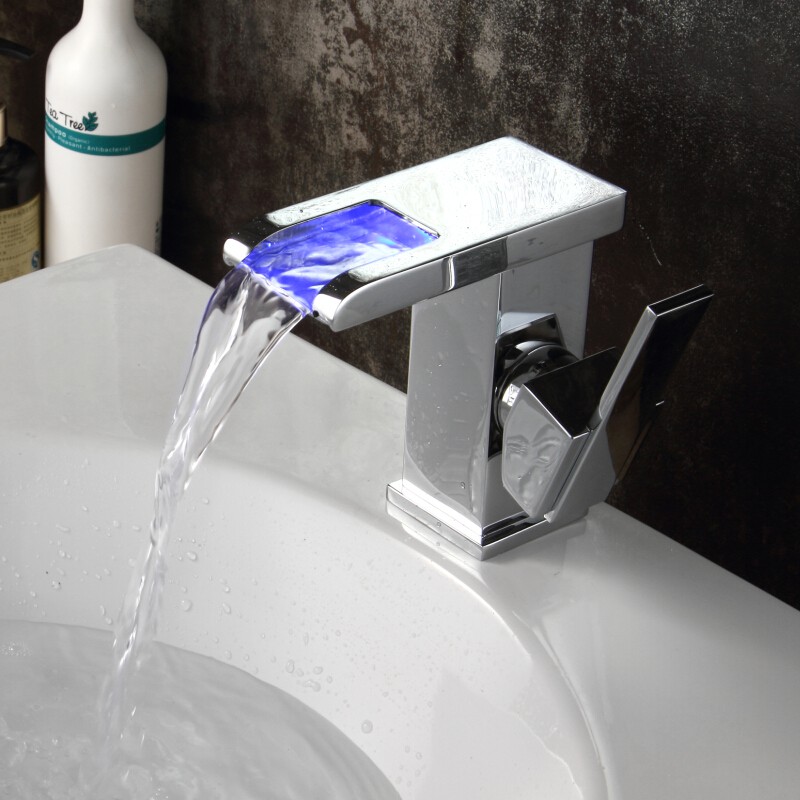

LED turns Blue between: 30-40 °C ( 86-104 °F )

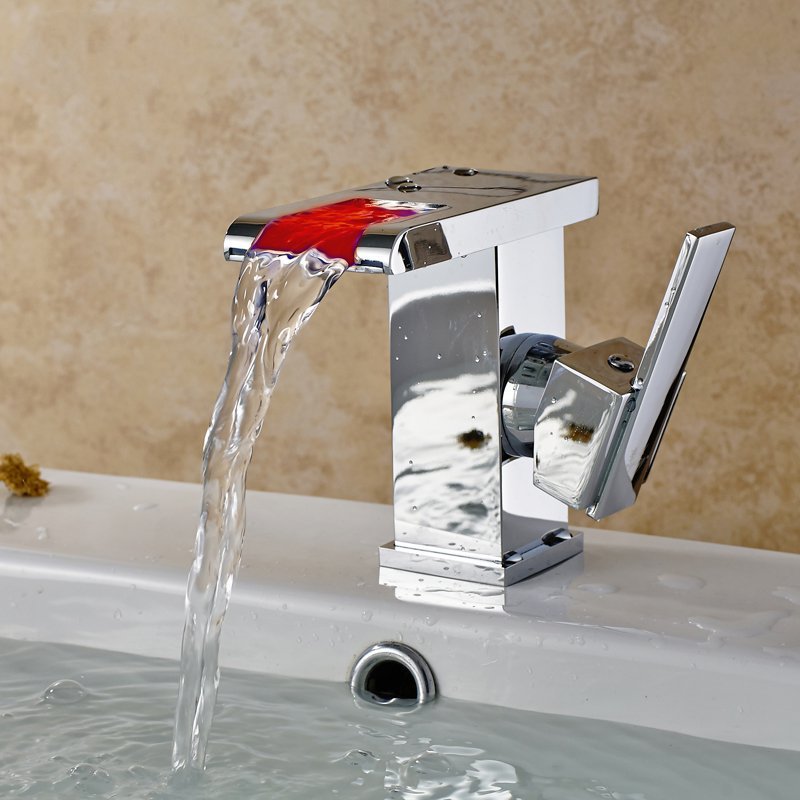

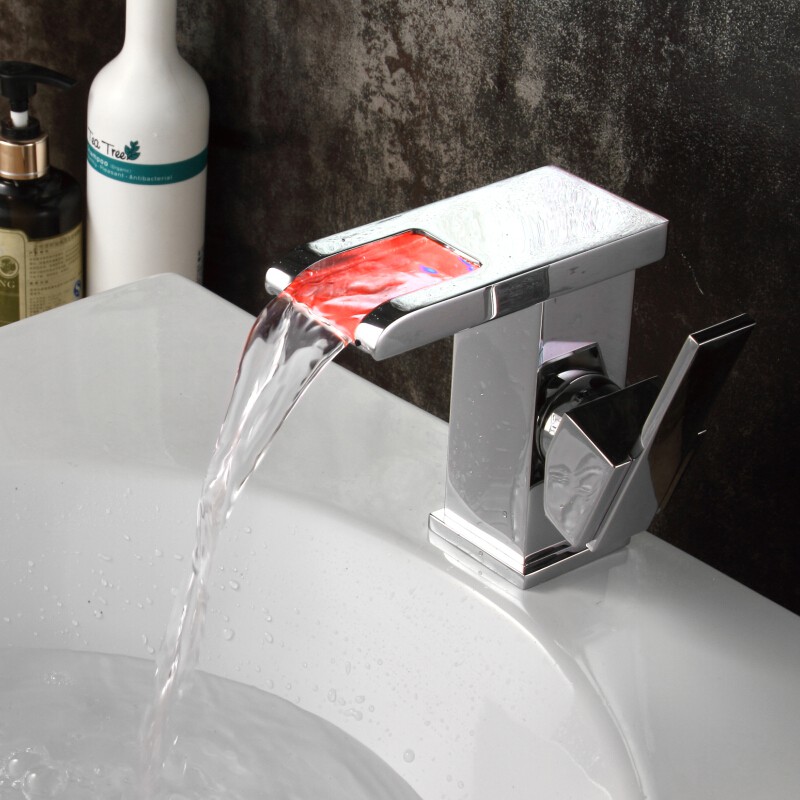

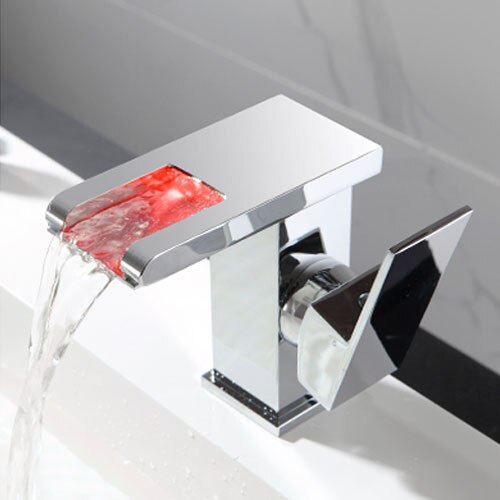

LED turns Red between: 40-50 °C ( 104-122 °F )
LED begins flashing between: 50-100 °C ( 122-212 °F )
