How to Install Allora Dark Oil Rubbed Bronze Shower Set | BST10050

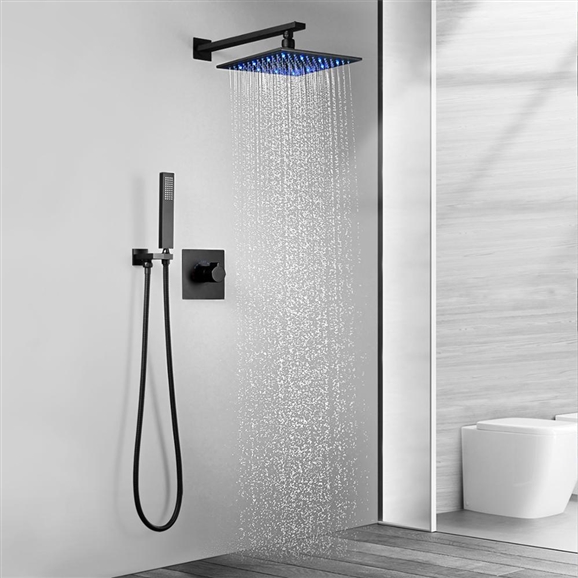

Allora Dark Oil Rubbed Bronze Shower Set
Allora Dark Oil Rubbed Bronze Shower Set is the perfect choice for a bathroom that takes a classic yet minimalist approach to design. It has a streamlined look and appeal, and the wonderful and oil rubbed bronze finish sure adds a unique modern twist to the shower set. Aside from that, the handheld shower is just as great, with solid water pressure and a well-designed grip for better handling. If you are looking for a shower set that looks great and works great, with the added benefit of easy cleaning and maintenance. High-quality brass body, with anti-oxidation, rust prevention. Fitted with high-quality material and resistant durability.
Features:
Brand Name: BathSelect
Model Number: BST10050
Shower Style: Contemporary
Material: Brass, 304 stainless steel
Surface finish: Dark Oil Rubbed Bronze
Shower shape: Square
Shower Head Size Options : 8",10",12",16"
Shower Head Feature: LED Shower
Shower Water pressure: 2 to 75 psi
The flow rate: 2.5 GPM.
Shower Head Function: Rainfall
Main valve body: Lead-free copper
Thread Size:1/2" NPT Thread(US Standard)
Shower Arms Options: Wall Mount and Ceiling Mount
Shower arm length: 16" long
Flex Hose Length: 59"
shower
Important Note:
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower Head Installation Instructions
Ceiling Mount Shower Installation Instructions
Step 1:
Step 2:
shower installation
Step 3:
Step 4:
Step 5:
Step 1: Take Out the Old Shower Head You can easily remove it by hand, but depending on how long the rain showerhead has been installed, you might need to use an adjustable wrench. Hence, if you find it difficult to remove, rotate the showerhead with an adjustable wrench in a counterclockwise direction to unscrew it.
Step 2: Keep the Shower Arm Clean and In Good Shape After you have removed the head, check the shower arm threads for any debris and old Teflon tape. If you find any, remove it and clean them off thoroughly. It’s best to use a microfiber cloth when cleaning the thread because it removes Teflon tape perfectly and works great to pick up tiny grits. Once you’re done cleaning, check if it is corroded or leaking. For damaged threads, it will be best you replace it entirely so you can have a comfortable shower experience any time.
Step 3: Time to Add New Teflon Tape Since you have removed the old Teflon tape, you have to replace it with new ones. The reason is that this tape helps to protect the shower from leaking after installing the showerhead. Now apply the new Teflon tape about 3-5 turns on the thread and tear the end part. Use your hands to smooth it out to keep it leveled to the thread. Keep in mind that when applying the tape, you should go in a clockwise motion so that it doesn’t come off when you attach the head in the same direction.
Step 4: Connect the Showerhead As said earlier in the tools needed, we’re using the rubber sealing washer that comes with the showerhead. This tool helps to make the showerhead stay watertight and secured on to the thread. Ensure you place it properly before installing it. After that, reconnect the shower head and tighten it down with your hands. You can employ a chair or ladder to make things easier for you.
Step 5: Tighten the Showerhead On To the Thread You will need to get the adjustable wrench handy to tighten down the shower very well. But make sure you wrap the threads with a terry cloth, so it doesn’t damage the finish when tightening the showerhead. Once you have done that, now use the adjustable wrench to tighten down the showerhead. However, don’t over-tight or force it so that it’s easier to remove in the future.
